Specifications
1.Hydraulic automatic tablet press machine2.Shape and size can be customized
3.Mechanical hydraulic pressing
4.Easy fire

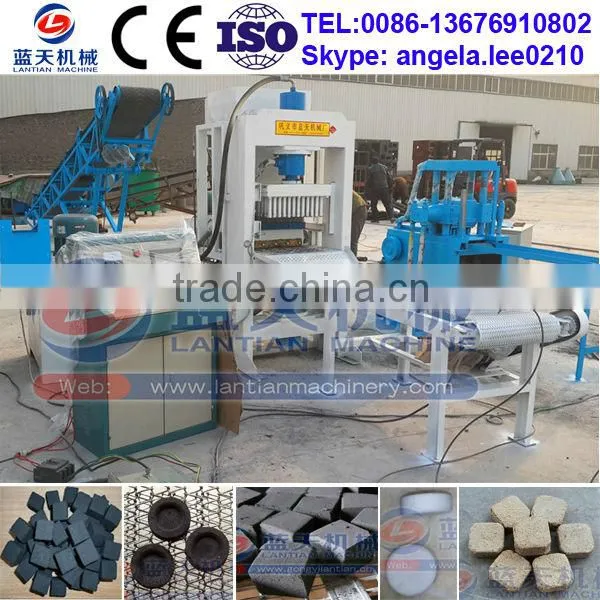

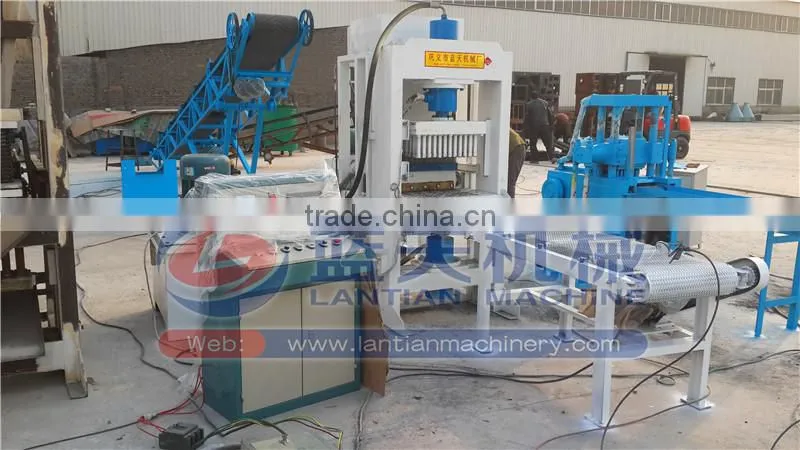

Hydraulic Automatic Tablet Press Machine
Brief Description:
1. Our automatic tablet press machine is a machine that putting the small particles or powder materials into the molds and pressing them into the briquettes.
2. The automatic tablet press machine is special for pressing any dry powder into different shaped and different sized tablet briquettes.
3. Our mechanical machine can press 40 time per minute, and 30 thousand pieces of briquettes.
4. The outlet shapes not just can be tablet, also can be cubic, rhomboid, triangular, cylinder, scrotiform, cone, convexity, concavity and others with word, logo, pattern, and other special shapes.
5. Our this automatic tablet press machine, processing large kind of powder materials, can be used for coal and charcoal industry, pharmaceutical industry, food industry, chemical industry, metallurgical industry, building materials industry, refractory industry, and others.

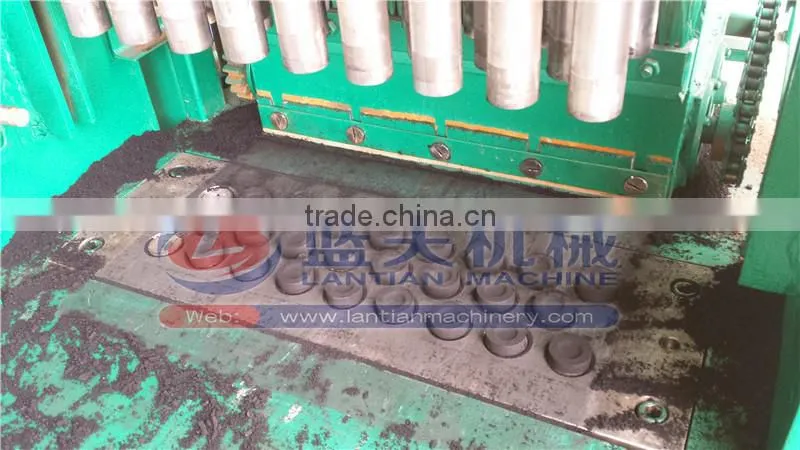

Mechanical press:

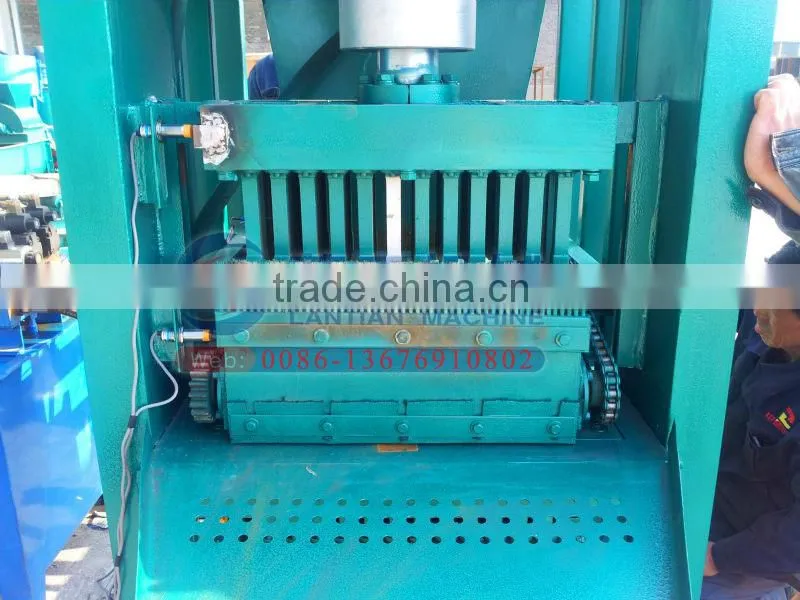

Hydaulic press:
The Advantages:
1. This automatic tablet press machine is particularly suitable for pressing big diameter and large filling quantity of tablets.
2. Specially designed high pressing feeder, which is suitable for pressing light weight and small density powder materials.
3. Perfect design are easy for cleaning and maintain.
4. The transmission system is placed in a closed worm box under the main body, which is the completely independent conponents, neither pollution each other, nor no big noise or less wear.
5. Specially designed auxiliary machines for the main machine to create automatic feeding and discharging, save manpower, and redouble the product quality.
6. Special installation structure is to make the moulds and parts easily changed and maintained.
7. The outlet shapes of our automatic tablet press machine are lot and we can customized the different shapes as your requirement.
8. The outlet charcoal briquettes are of high density, look looking, easy fire, long burning, smokeless, non toxic...
9. The density of briquettes can be adjusted, and the pressure can be easily controled.
10. Automatic cleaning brush for hydraulic type machine to avoid dust sticking on the mold.
11. Hydraulic type machine pressure is about 100ton.
12. Touching controlling system and full English operation system for hydraulic machine.
13. Hydraulic machine can manual working or automatic working.
14. Position sensor system for hydraulic machine for changing the mold easily and perfect working.

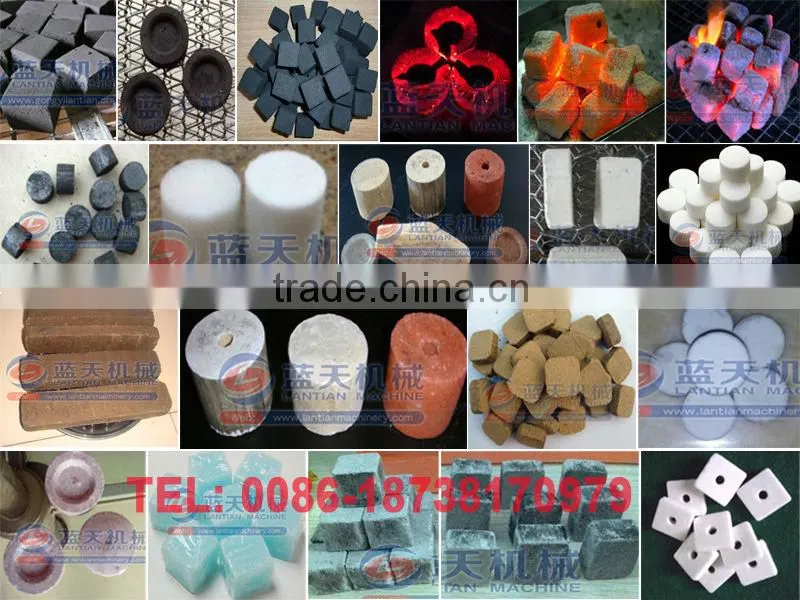

Final Briquettes:
Parameters:
Our automatic tablet press machine can be mechanical press or hydraulic press.
Model |
LTYJ-9 |
LTYJ-48 |
Applicable materials |
charcoal powders, coal powders, sawdust, any powders materials |
|
Capacity |
11-16 pieces / time 20-40 times/min |
48 Pieces per Time (30 mm) 8-20 times/min |
Motor |
7.5 kw (4 pole) |
18.5kw (4 pole) |
Diameter of briquettes |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
20,25,30 33 35 38 40 43 mm(round); 20-40 mm(cubic) |
Feeding materials |
< 3 mm |
< 3 mm |
Briquettes shape |
Round shape and Cubic shape Or as customers’ request |
Round shape and Cubic shape Or as customers’ request |
Pressure |
40-60tons(adjustable) |
40-150tons |
Press type |
Mechanical Press |
Hydraulic Press |
Overall size |
2500x 950x1550 mm (includes conveyor) |
3500*2000*1800mm (includes conveyor) |
Packing size |
1500x1200x1750 mm |
2100*2100*1900mm |
Weight |
1500 KG |
5500kg |

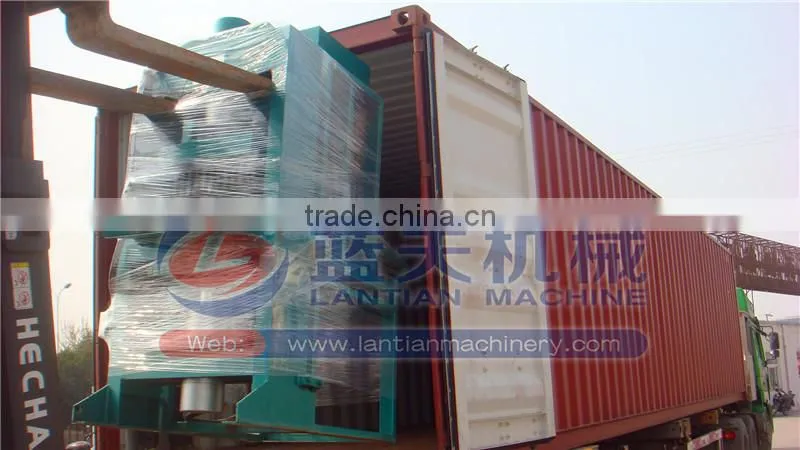

The package and shipping:
1. The single automatic tablet press machine will be packaged by wooden case with steel frame.
2. If the machines are lot, we will load the machines in the container with or without package which is based on your requirement.
3. All the machines will be adjusted and tested before shipping.
The service:
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.

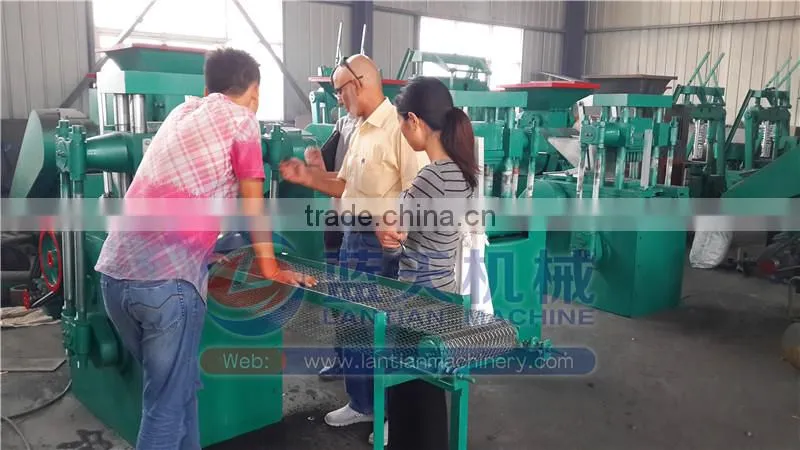

5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our automatic tablet press machine can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.
The introduction of Gongyi Lantian Mechanical Plant:
Gongyi Lantian Mechanical Plant is a professional factory to produce all kinds of briquette machines. It was founded in 1980s. Through 30 years' development, it stands out in briquette machine industry. Our briquette machines include ball press machine, honeycomb briquette machine, coal/charcoal extruder machine, shisha briquette machine, biomass briquette machine, brick briquette machine, pellet machine etc., and all necessary auxiliary machines. Apart from all kinds of briquettes machines, we also produce carbonization furnace, all kinds of crusher, dryer, mixer,etc.
We’ve got CE, ISO certificate for our machines. And our machines has been sold to Indonesia, Sadi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakistan, Kuwait, Turkey, Egypt and others.
