Specifications
automatic shisha charcoal machine:1) High quality.
2) Factory sale with 30 years' producing experience.
3) Reliable service.
High efficiency China manufacturer automatic shisha charcoal machine

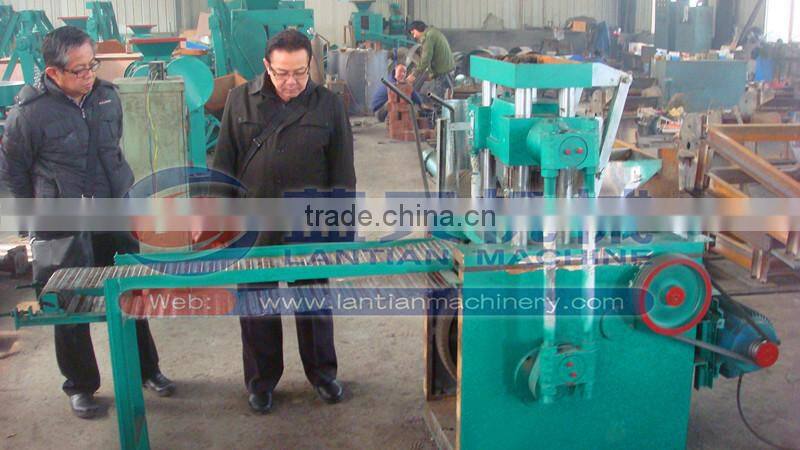

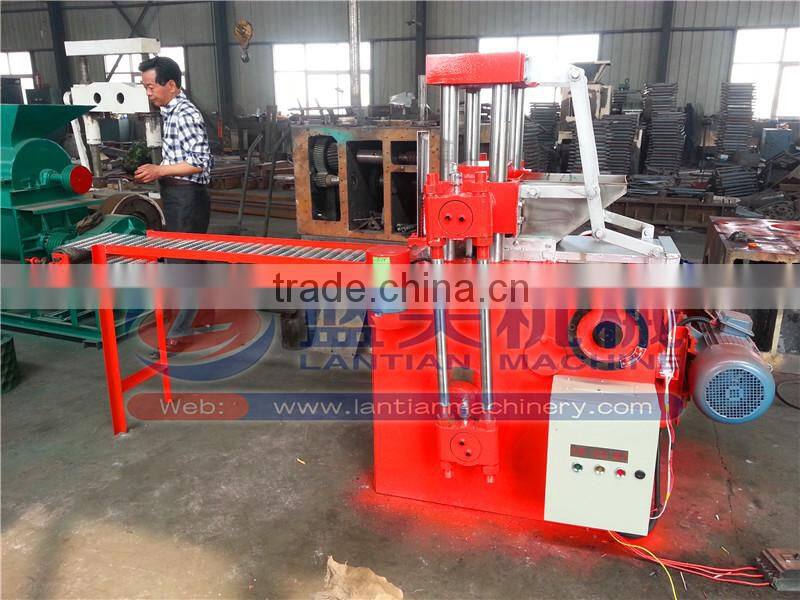

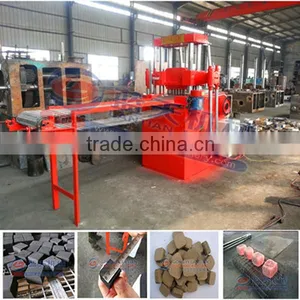

Our automatic shisha charcoal machine:

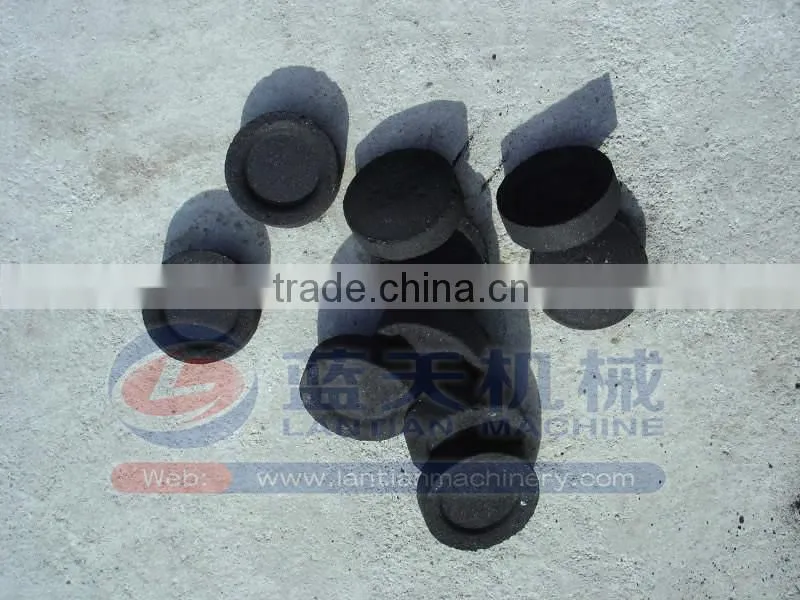

Shisha charcoal briquettes made by automatic shisha charcoal machine:
Brief description of automatic shisha charcoal machine:
Automatic shisha charcoal machine is mainly used in charcoal powder, pharmaceutical,
food, chemical industries.Shisha charcoal briquette machine is designed according to
GMP standard, whose appearance is stainless steel packing. The tablet press of
automatic shisha charcoal machine is small in size and neat appearance. Besides,
automatic shisha machine also has the security alarm system, dust collection system.
Automatic shisha charcoal machine’s rotation uses stepless speed regulation of
frequency conversion. Automatic shisha charcoal machine is used to press charcoal
powder into certain small shape.
The pressure made by automatic shisha charcoal machine can be reach at 20Mpa, the
speed of automatic shisha charcoal machine is adjustable according to your demands.

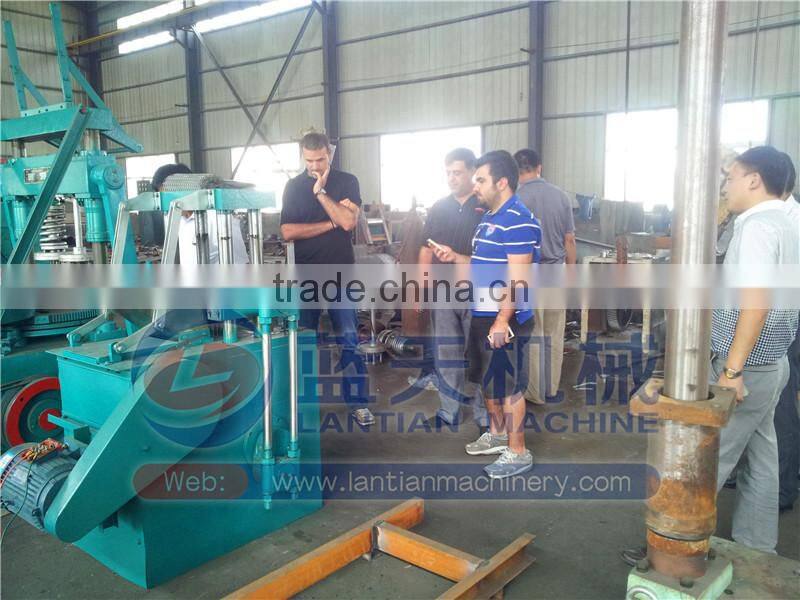

Visitors came to test automatic shisha charcoal machine:

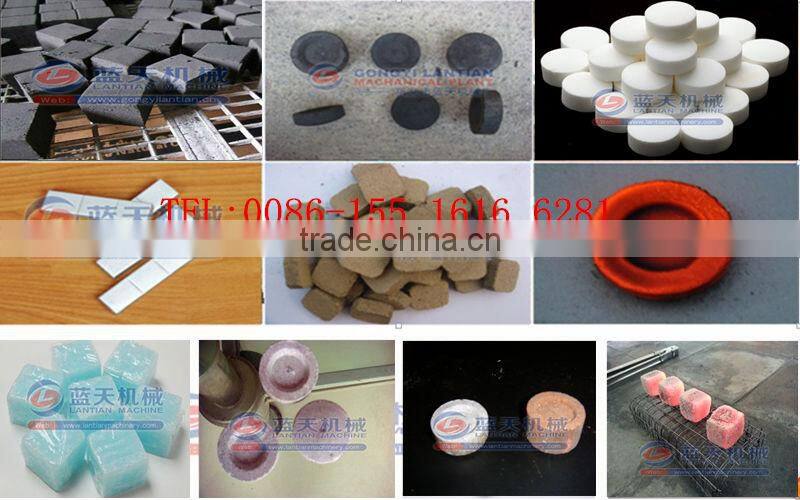

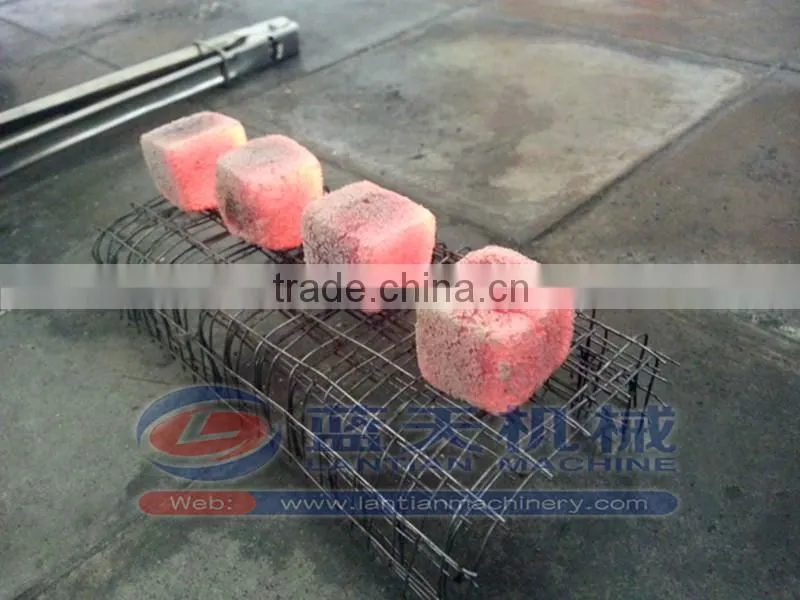

For automatic shisha charcoal machine's final products-- Shisha charcoal briquettes
1) automatic shisha charcoal machine can press a variety of powder material into
various shapes. The shape of shisha charcoal briquette can be cube (25*25*25 mm,
20*25*25 mm, 10*10*10 mm), round(diameter: 28 mm, 30 mm, 32 mm, 35 mm), we
can make the mold according to customers' requirements.
2) The final products made by automatic shisha charcoal machine are smoke-free,
tasteless, non-toxic, flammable.What’s more, the output briquette is in good density,
perfect shape and good appearance.
Main parameter of automatic shisha charcoal machine:
Type |
YPJ-11 |
YPJ-28 |
Capacity |
11-12pieces/time |
28pieces/time |
20-22times/min |
3-5times/time |
|
Motor |
7.5kw(4pole) |
11kw(4pole) |
Diameter of briquettes |
20,25,30,33,35,38,40,43mm(round)20-24mm(cubic) |
20,25,30,33,35,38,40,43mm(round)20-24mm(cubic) |
Feeding materials |
<3mm |
<3mm |
Briquette shape |
round,square,triangle(as customer’s request) |
round,square,triangle(as customer’s request) |
Pressure |
30-80tons |
50-100tons |
Press type |
Mechanical Press |
Hydraulic Press |
Overall Size |
2500*950*1550mm(includes conveyor) |
3500*2000*1800mm(includes conveyor) |
Packing Size |
1500*1200*1750mm |
2100*2100*1900mm |
Weight |
1500kg |
1800kg |

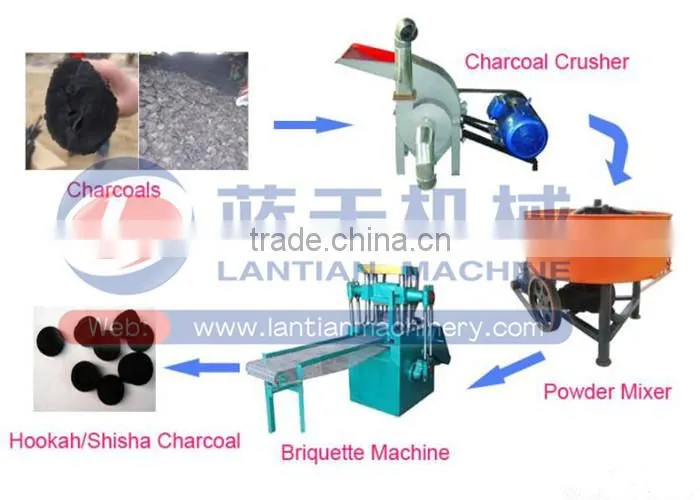

The whole production line of automatic shisha charcoal machine:

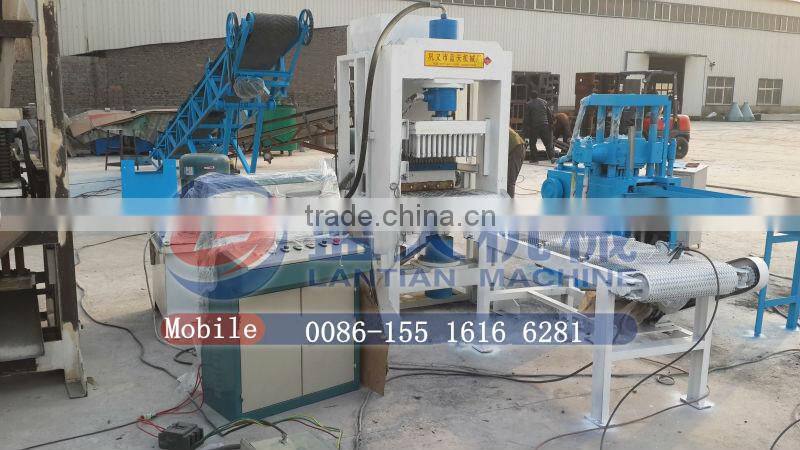

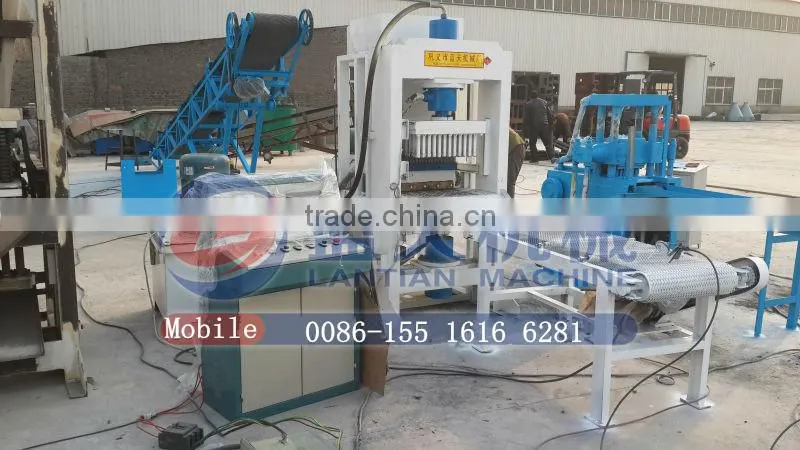

Our new design hydraulic automatic shisha charcoal machine:
Compared with technical automatic shisha charcoal machine, hydraulic automatic shisha
charcoal machine has much more tremendous pressure, much larger capacity, much more
stable running process. The shisha charcoal briquettes made by hydraulic automatic shisha
charcoal machine are in high density. The pressure can be reach 50Mpa. Shisha charcoal
briquette size can be 10-70mm in height.
Other assistant equipments of automatic shisha charcoal machine:

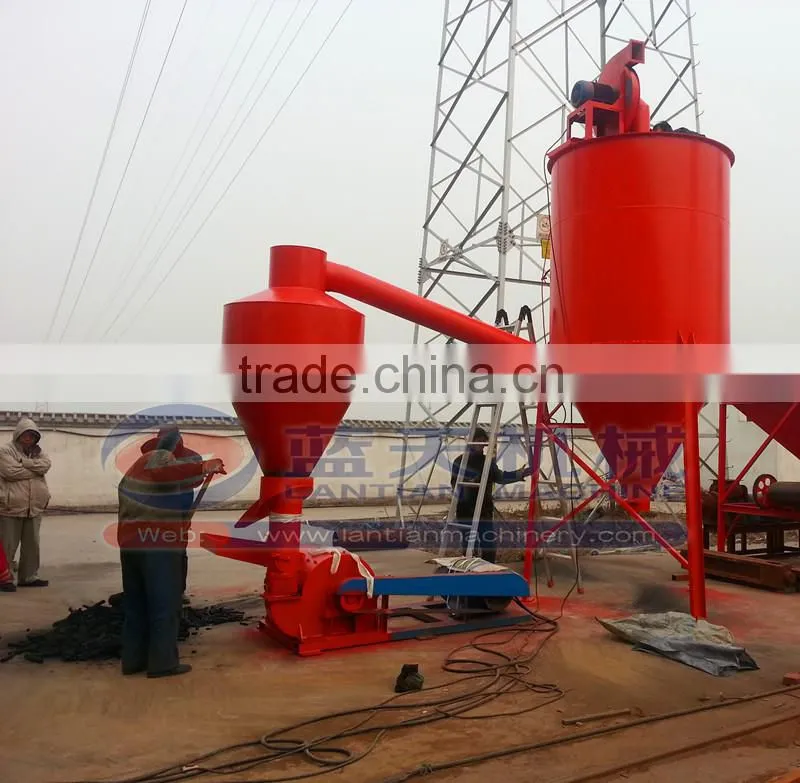

1) Charcoal crusher: the first step of automatic shisha charcoal machine is to crush raw
material into fine charcoal powder. The smaller the charcoal powder's size is, the better.
(automatic shisha charcoal machine)

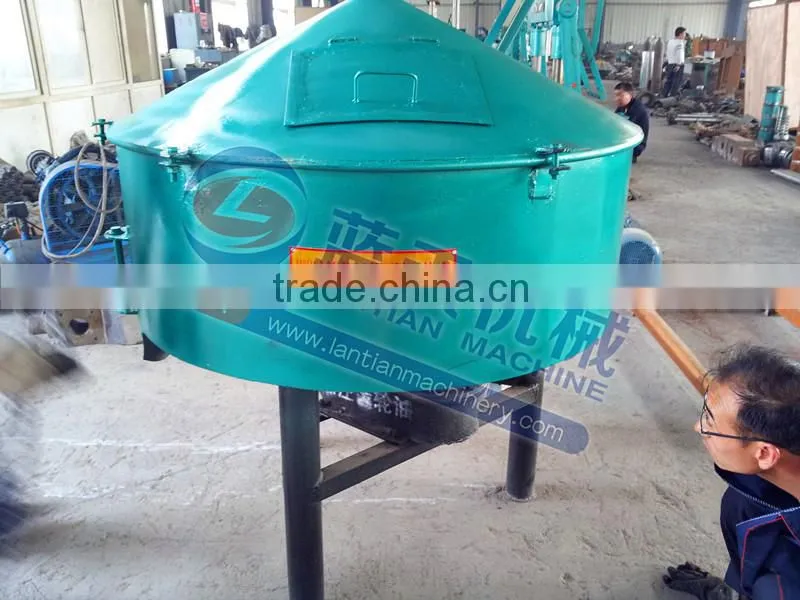

2) Mixer: The second step of automatic shisha charcoal machine is to mix charcoal powder
with natural binder evenly. The reason why we use wheel mixer is that wheel mixer can not
only improve charcoal powder's density, but also press charcoal powder into smaller size.
(automatic shisha charcoal machine)

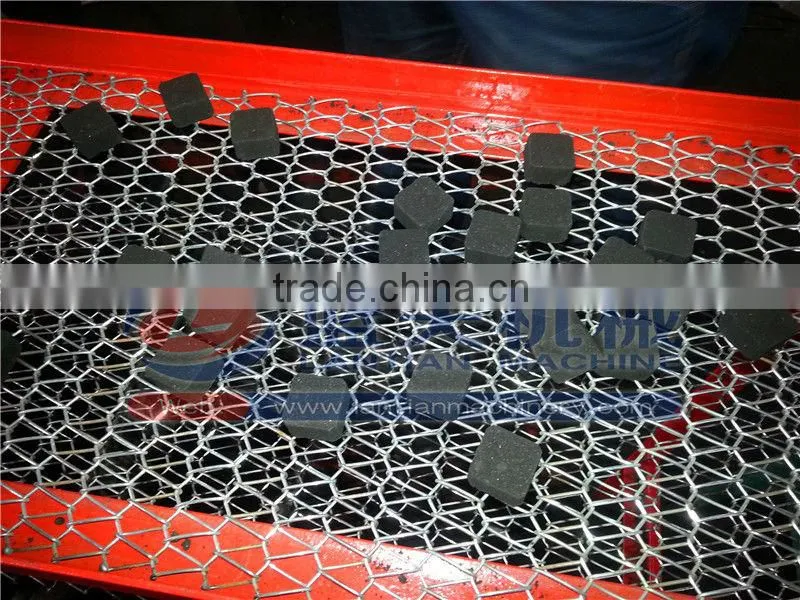

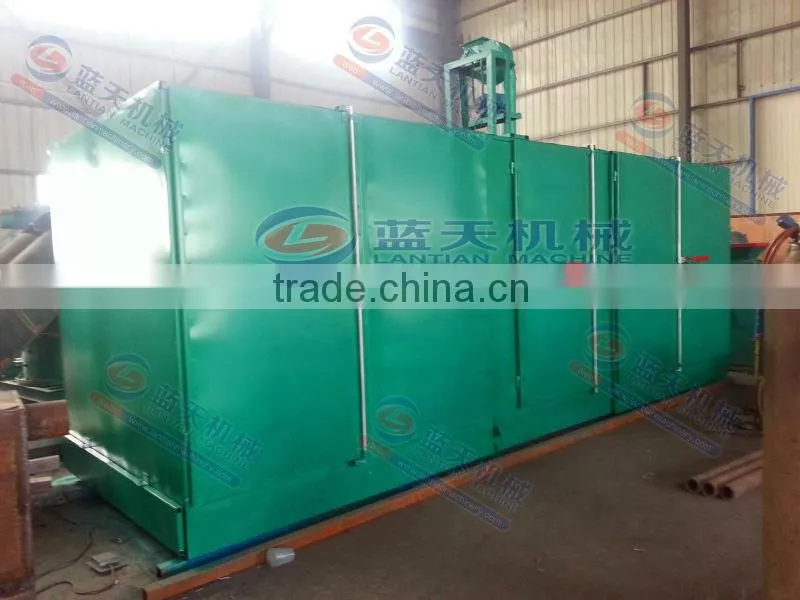

3) Box dryer: The last step of automatic shisha charcoal briquette machine is to dry up shisha
charcoal briquettes in box dryer. Due to the liquid binder, shisha charcoal briquette will have
15-20% water content, so we need to dry the briquette.(automatic shisha charcoal machine)
If you are interested in our automatic shisha charcoal machine or the whole
line of automatic shisha charcoal machine, please contact me freely!
Skype: amy.tangcn
TEL: 0086-155 1616 6281
QQ:1083911070

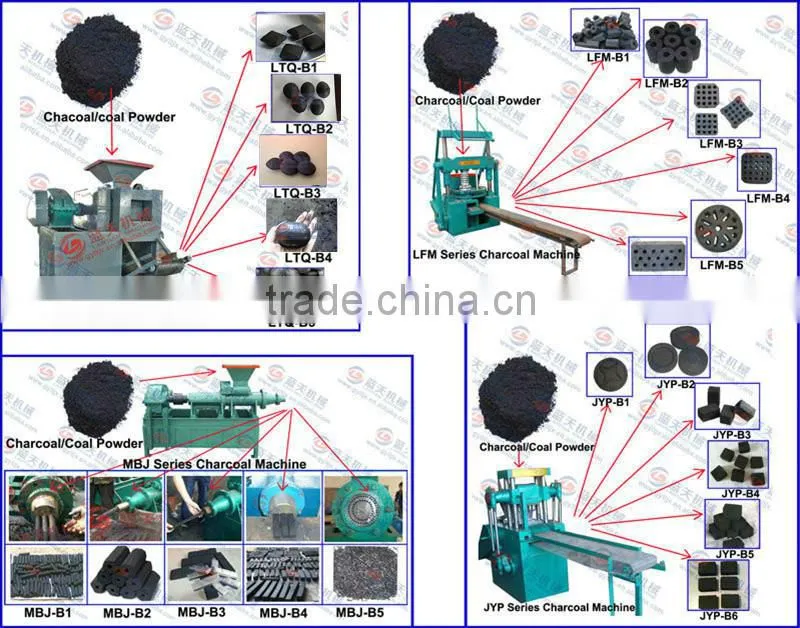

Other kinds automatic charcoal briquette machine:
(please click the following picture, then you will see other kinds automatic charcoal briquette
machine)
Lantian Mechanical Plant:
Lantian Mechanical Plant is a professional factory in producing coal/charcoal briquettes
machine and any other assistant equipments of briquette machine. Our factory was
founded in 1980s. and through 30 years' development, our machines have earned
good repulation in China, but also in foreign countries. Our main briquette machine
includes automatic coal briquette machine, automatic shisha charcoal machine,
automatic roller press coal/charcoal briquette machine, crusher, mixer, dryer,
conveyor, etc. (automatic shisha charcoal machine)
