Specifications
hops pellet machine:1) factory sale.
2)CE and ISO certificates.
3)professional and reliable service.
Factory direct sale China manufacturer ring dry pelleting machine hops pellet machine

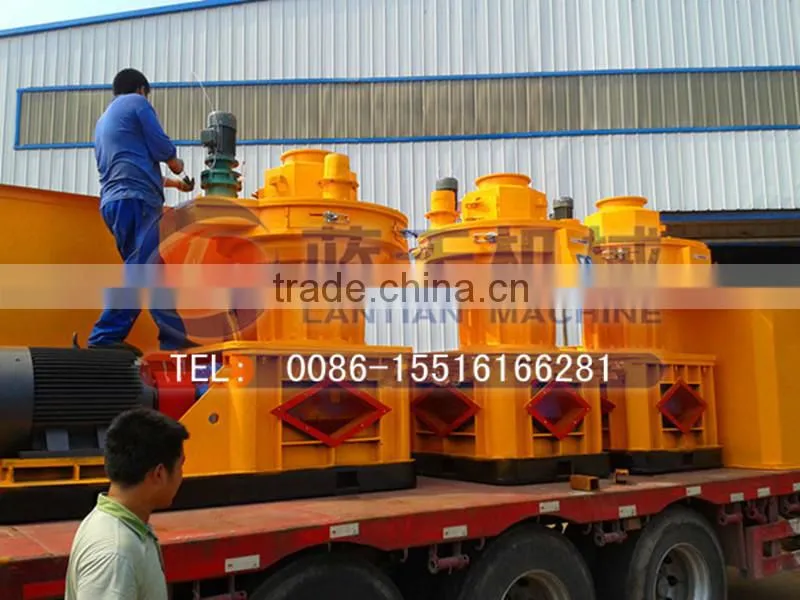

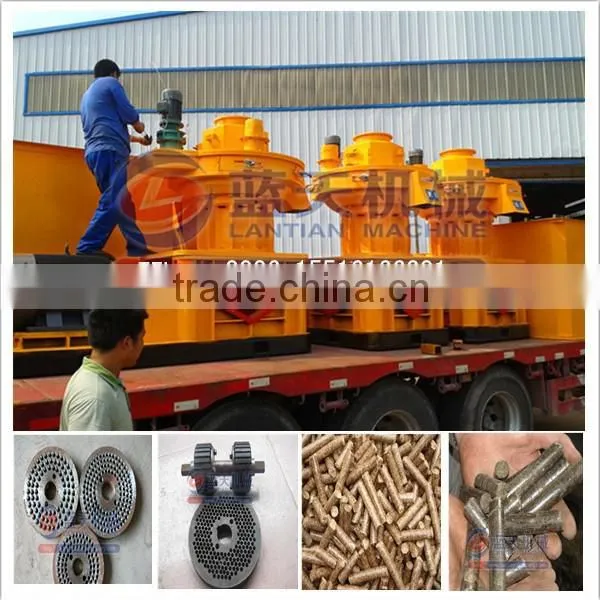

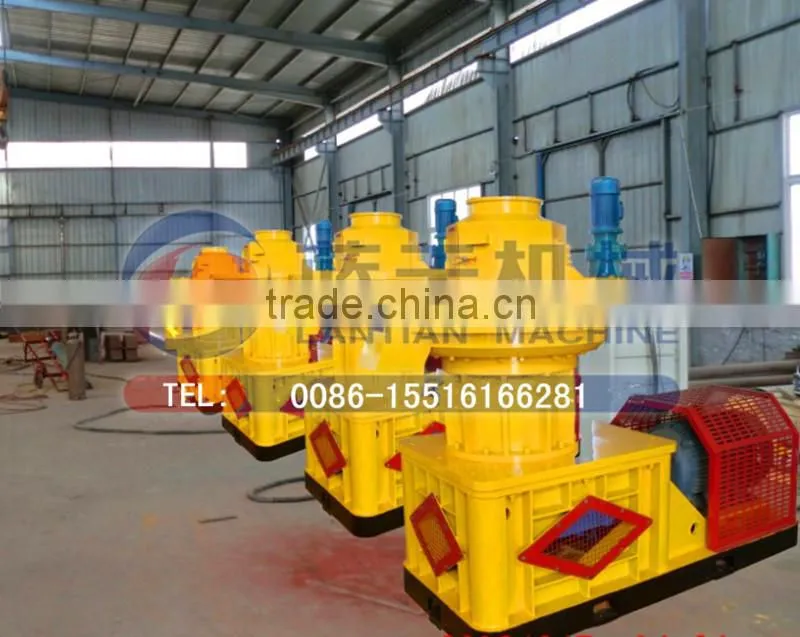

Hops pellet machine show:
Brief introduction of hops pellet machine
Hops pellet machine is a new energy saving machine, it is used to squeeze fine biomass
powder( such as sawdust powder, plant straw powder, plant stalk powder, wastes paper
powder, leaves powder, etc.) into pellet shape. Final pellet is widely used in biomass boiler,
heating, household gasification furnace, industrial boiler, hotels, restaurant, heat source,
to instead coal. Pellets made by hops pellet machine is in high density because of high
pressure provided by hops pellet machine. Pellets' density is around 1.1-1.6g/cm³, and
its calorific value is around 5500-6000 Kcal.
Raw material requests:
Raw material: Tree branches, wood wastes, wood sawdust, wood pieces, wood shavings,
leaves, wastes paper, bark, roots, rice husk, rice straw, wheat husk, wheat straw, corn cob,
corn stalk, sugarcane bagasse, palm shell, coconut shell, animal manure, etc.
Raw material's dimension: Less than 3mm.
Raw material's water content: Around 14-16%.
Raw material of hops pellet machine
Working principle of hops pellet machine
1. Through the belt conveyor , the materials get into the storage, then screw conveyor in the
storage will feed material to the pellet forming chamber automatically and orderly.
2. In the forming chamber ,two gear and mold help to form and press pellet, Gear rotate to press
pellet come out surround.
3. Automatic cutting equipment around the mold ,which can cut pellet automatically,it can also
adjust the length of pellet .
4.During the process,the oil supply device can lubricate the gear,mold and bearings of molds.
5. The maintaince: The machine belongs to high tech, full automatic machine which do not
need Artificial maintenance, in order to keep the machine work well, the only thing need to
do is making sure the grease cylinder.

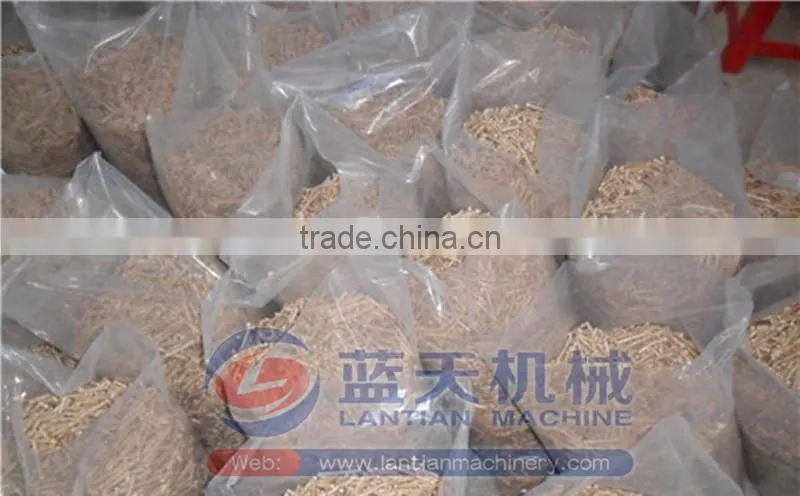

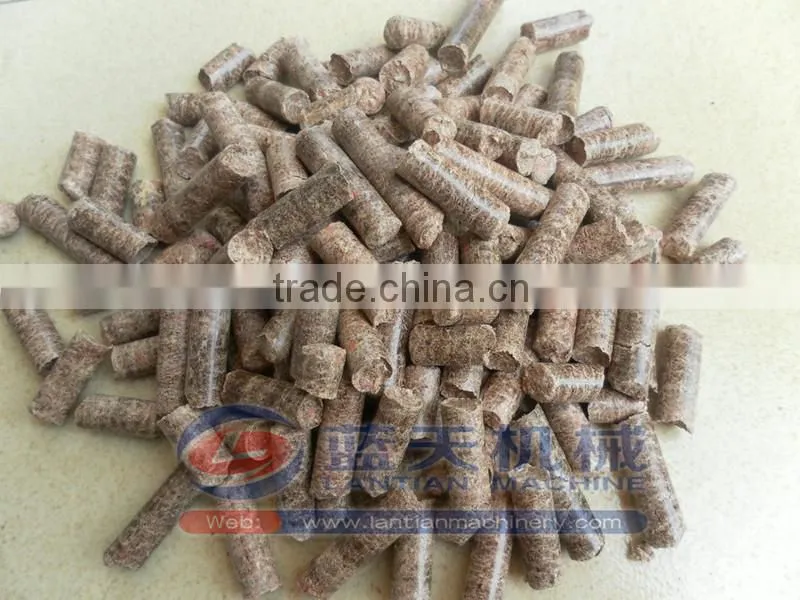

Pellets made by hops pellet machine

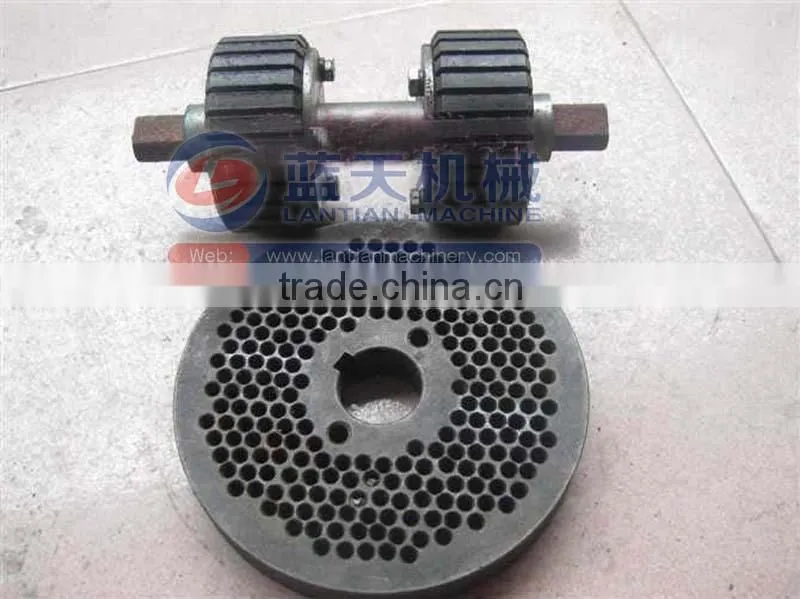

Spare parts of hops pellet machine
1.Vertical feeding directly in place.
2.Die static,roller rotating,material centrifugal,evenly distributed around.
3.Double-layer dies,up and dowm dual-use,reduce the cost,enhence the effiency.
4.One die,different hole diameters,with different specification to pelletize.
5.Ring die ,vertical structure.doog for cooling the pelletzing room.
6.Independent and frequency conversion discharge device,to ensure that the rate of pellet
formation.
7.Macroporous die,wire joining circulai tube ,increasing travel ,improving density.
Characteristics of hops pellet machine
1) High production capacity.
2) Hops pellet machine has far-ranging raw material. It is suitable for all kinds of biomass
wastes powder. Raw material's dimension can be 1-50mm.
3) Easy operation.
4) No easy wearing parts.
Parameters of hops pellet machine
Model |
Power |
Capacity |
Dimension (CM) |
Weight (KG) |
LTP-350 |
30KW |
300-500 KG/H |
165*70*130 |
1000 |
LTP-450 |
37KW |
500-700 KG/H |
130*70*150 |
1450 |
LTP-550 |
45KW |
800-1000 KG/H |
140*75*160 |
2000 |
LTP-800 |
90KW |
1500-2000 KG/H |
190*100*200 |
3900 |
LTP-1000 |
110KW |
2000-3000 KG/H |
210*115*205 |
4800 |
Visitors came to our factory to test our hops pellet machine
How to choose the most suitable hops pellet machine
In order to provide you the most suitable hops pellet machine with the most suitable production
capacity, could you please share me the following information?
1) What's your raw material?
2) How many kilograms raw material do you want to make per hour?
Our factory information:
Address: Gongyi City, Zhengzhou City, Henan Province, China.
Airport Information: CGO ( Zhengzhou Xinzheng International Airport)
We will pick you up at the airport, and direct send you to our factory!
If you are interested in our hops pellet machine, please contact me freely!

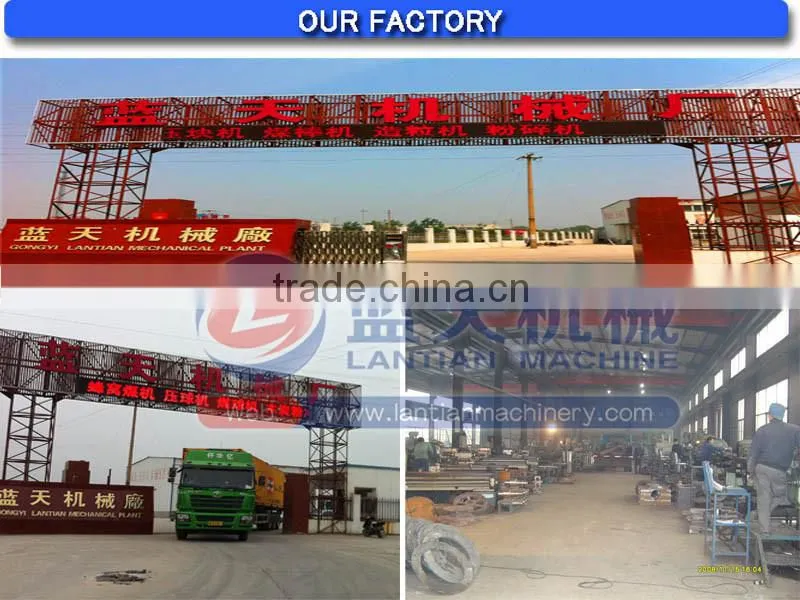

Our factory show
CE and ISO certificates
Customer show
