Specifications
Wide application biofuel sawdust pellet machine1.Many kinds of pellet machines
2.Small or large output
3.For fuel or feeds
In some countries, the people take coal as raw materials for heating, burning for stove, burning for generating electric power. But there is SO2 and other harmful substances in the coal which had posed the threat to the environment and people health. With the improvement of living standard, people begin to care much for environment protection and healty requirements. On the other hand, the coal is the non-renewable resources. The coal in the world is fewer and fewer, and it will be exhausted sooner or later. While, the pellets, biomass materials and smokeless, can replace the coal for heating and generating the electric power, which will be the best choice for environment protection.
Introduction of sawdust pellet machine:
1. Sawdust pellet machine is mainly used to make the biofuel pellets or animal pellets from wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, pulverized coal and waste paper, etc.
2. The final pellets are of high density, high fuel value, low moisture and low ash content.
3. Sawdust pellet machine is energy saving machine which can recycle and reuse the agriculture wastes to protect environment.
4. The outlet pellets can be 4-30mm size for option and the pellets can be used for fireplace, animal feed, burning for stove, etc.
5. The sawdust pellet machine can be used in electric industry, fertilizer industry, animal feed industry, etc.
Sawdust pellet machines are optional:
1. Vertical sawdust pellet machine:
Model |
Power |
Capacity |
Dimension (CM) |
Weight (KG) |
LTP-350 |
30KW |
300-500 KG/H |
165*70*130 |
1000 |
LTP-450 |
37KW |
500-700 KG/H |
130*70*150 |
1450 |
LTP-550 |
45KW |
800-1000 KG/H |
140*75*160 |
2000 |
LTP-800 |
90KW |
1500-2000 KG/H |
190*100*200 |
3900 |
LTP-1000 |
110KW |
2000-3000 KG/H |
210*115*205 |
4800 |

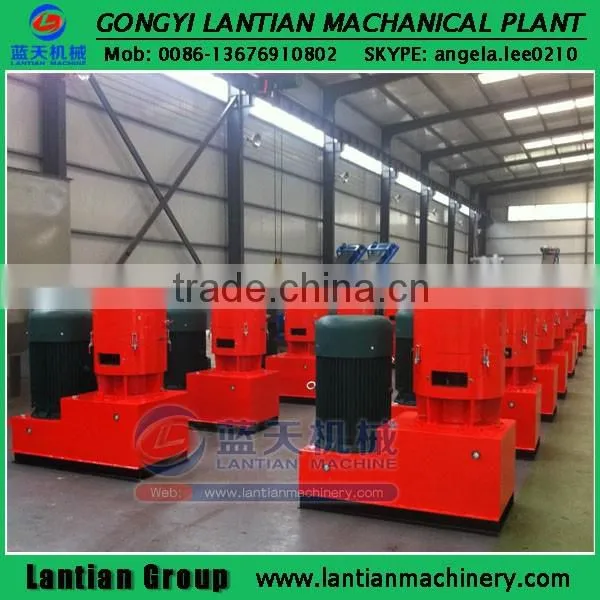

LTP-350:

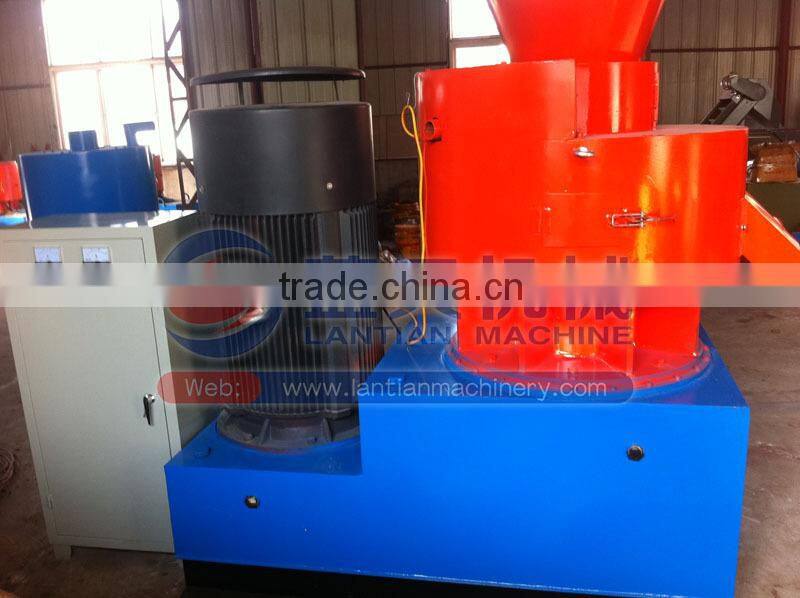

2. Vertical ring-die sawdust pellet machine:
The new product LTRP series "double vertical ring-die pellet mill" are research, Design, Produced by ourselves, With alone shape, more reasonable structure and stability,Professional for Wood, Rice husk, Peanut shell, Bamboo and Palm fiber etc.
1) Gearbox: Continue the LTP series New generation gearbox, Driving with high-precision gears, Auto-matic Lubricant pump system keep the gearbox working stability and warranty period.
2) Vertical motor: the most characteristic is mounting hole with output shaft as the center, equidistant distribution around, More powerful and stability of machine working.
3) Blower system: Located in one side of work bin, Free control the working time,The main function is dedusting and discharge steam.

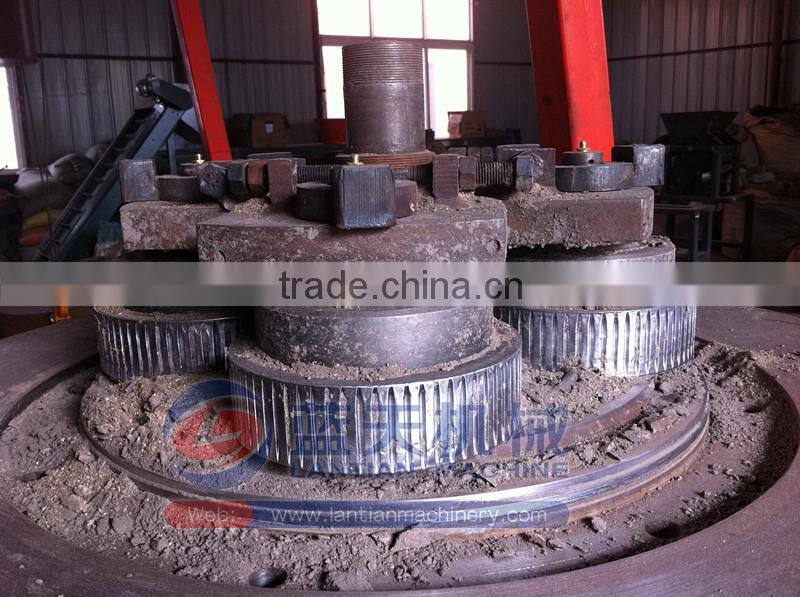

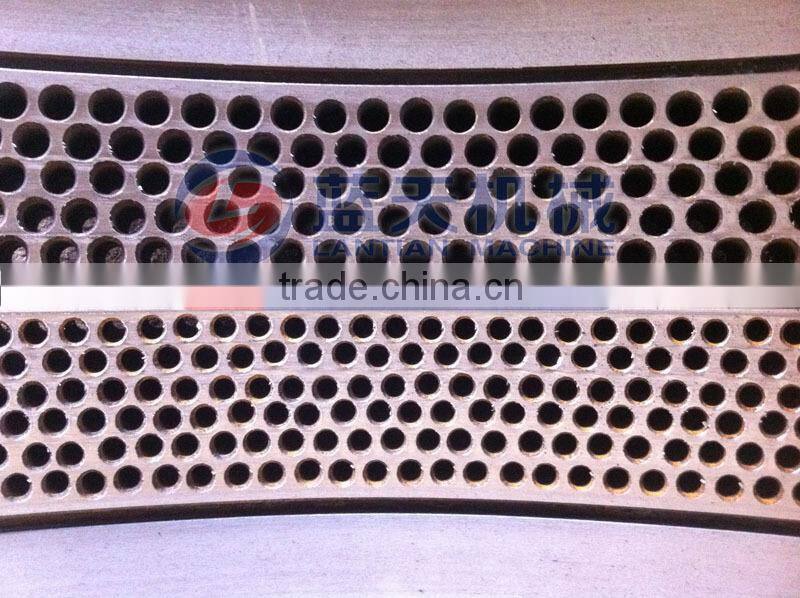

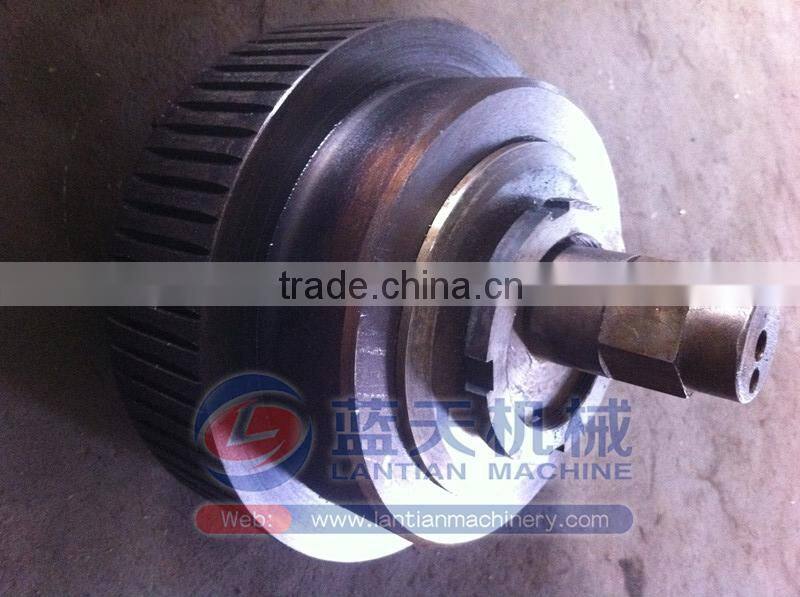

4) Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52, In this hardness can assure the pelleting quality and warranty time,Working manner is from inside to outside press, Centrifugal force and extrusion pressure together,Produced more capacity, At the same time assure hardness and density,The special design is 4 to 8 rollers working, Increase press rate then increase capacity,Ring-die is "vertical double-deck" structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.
| Model | Power | Capacity | Pellet size | Weight | Dimension |
| LTRP-450 | 55 kw | 0.8-1.2 ton/h | 6-12 mm | 2800 kg | 1.4x0.75x1.55 m |
| LTRP-550 | 90 kw | 1.5-2 ton/h | 6-12 mm | 4500 kg | 1.9x0.95x1.8 m |
| LTRP-800 | 132 kw | 2-3 ton/h | 6-12 mm | 7000 kg | 2.5x1.35x2.1 m |
| LTRP-1000 | 160 kw | 3-4 ton/h | 6-12 mm | 8500 kg | 2.65x1.45x2.1 m |
3. Lantian rotating roller sawdust pellet machine:
| Model | Power | Capacity | Net/Gross Weight | Dimension |
| LTMP-200B | 7.5 kw | 80-120 kg/h | 350/370 kg | 1.15x0.53x1.0 m |
| LTMP-300B | 22 kw | 200-350 kg/h | 575/595 kg | 1.3x0.6x1.15 m |
| LTMP-400B | 30 kw | 300-450 kg/h | 810/830 kg | 1.4x0.7x1.6 m |

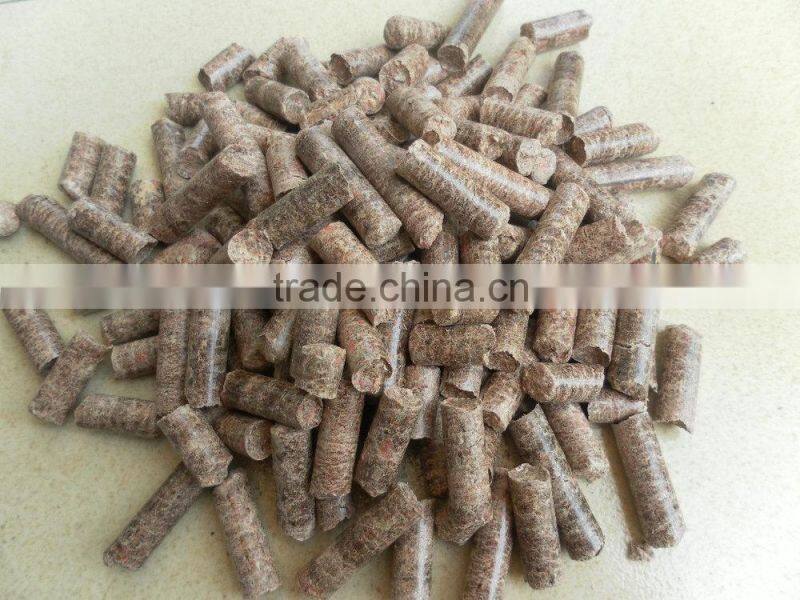

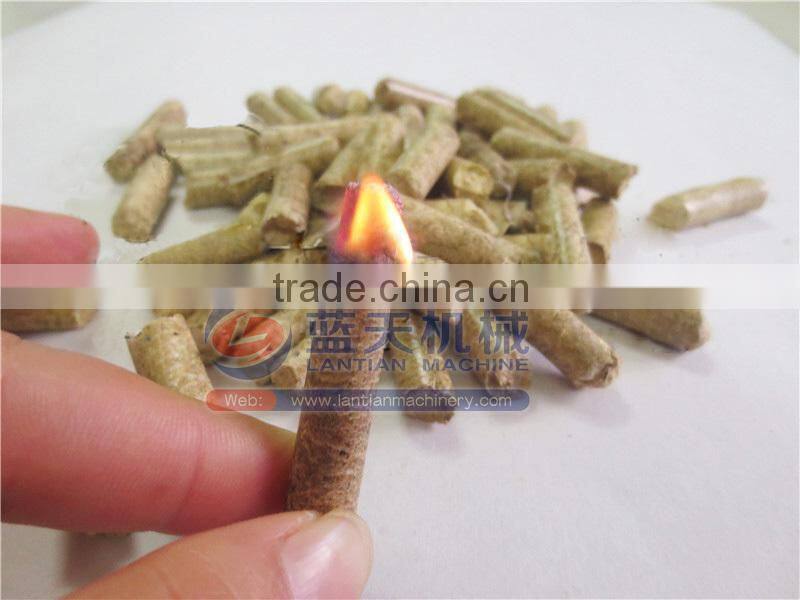

Outlet Pellets:

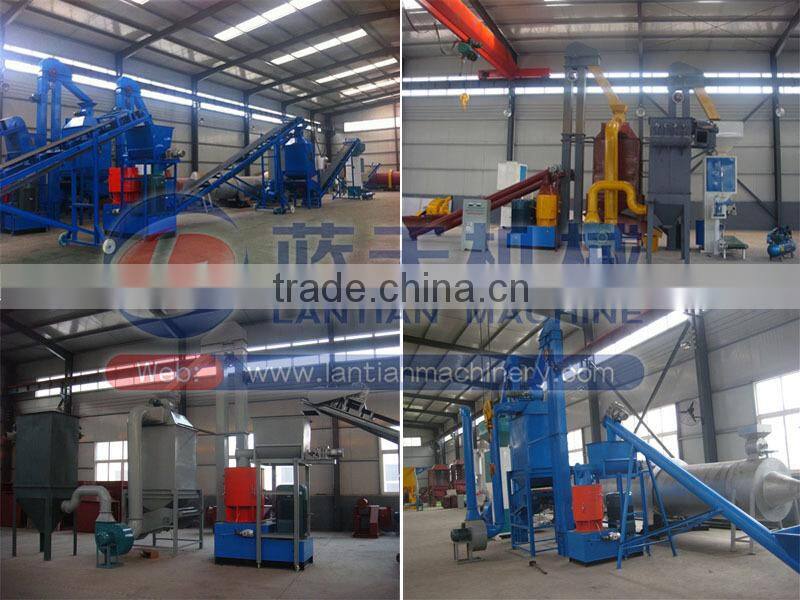

Pellet Production Line:
1. We can equip the sawdust pellet machines for automatic poduction line.
2. The pellet production line includes the machines of wood chipper, wood crusher, dryer, feeding device, sawdust pellet machine, cooling machine, packing machine, elevator and necessary conveyors.
3. We also can design and customize the production line as customers' requirements.
Customers's Visit:

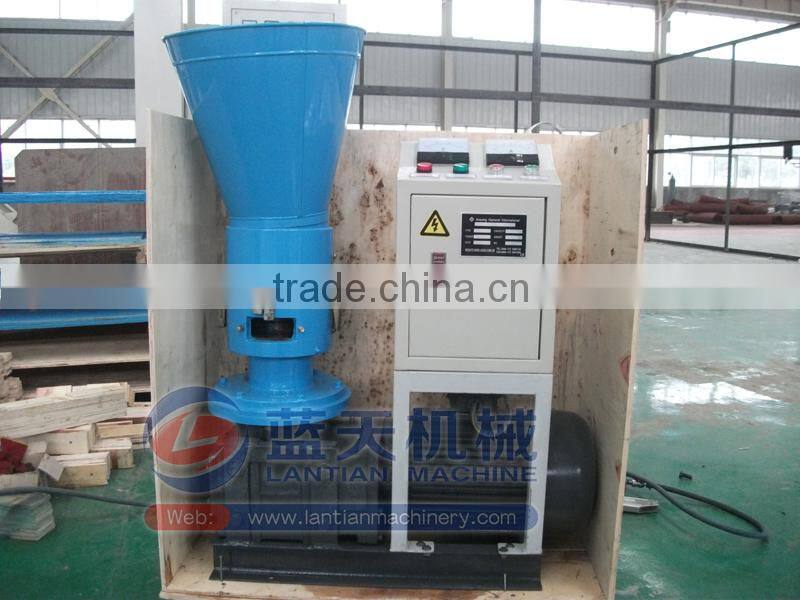

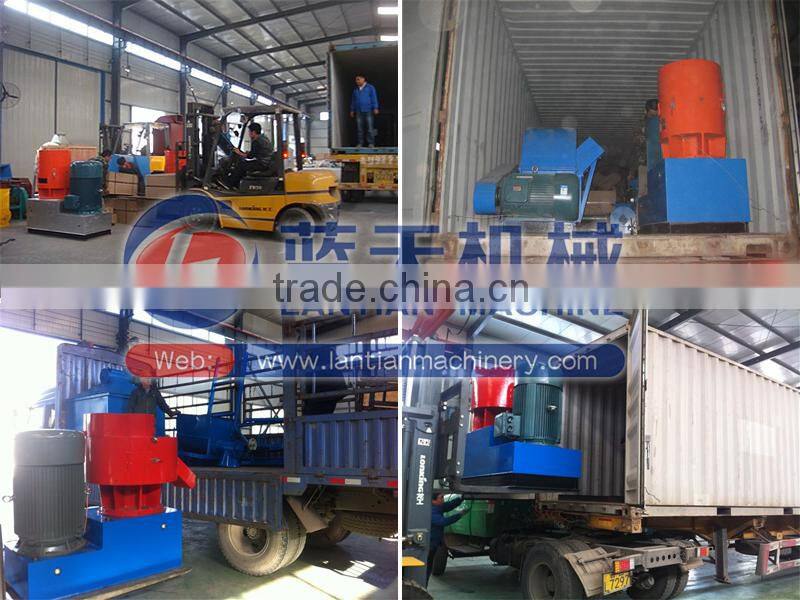

Packaging or Delivery:
The service:
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.
5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our sawdust pellet machine can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.
The contact information:
If there is any interest in our machine, please don't hesitate to contact me.
