Specifications
rotary kiln dryer:1) 30 years' rotary kiln dryer making experience.
2) factory sale rotary kiln dryer.
Reasonable price factory sale caly/sand/clay/slag rotary kiln dryer hot air rotary kiln dryer
Rotary kiln dryer

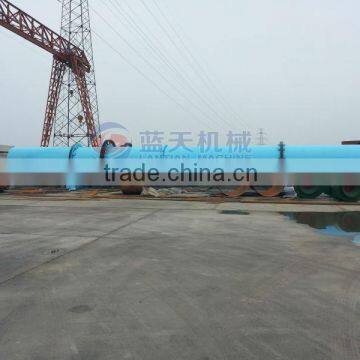

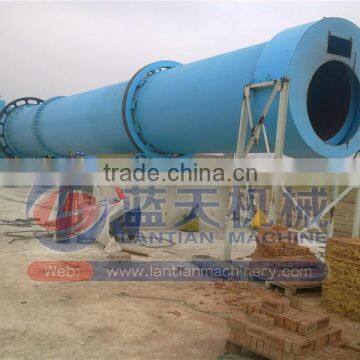

Work site of rotary kiln dryer
Introduction of rotary kiln dryer
1.New type rotary kiln dryer with new type heat pipe structure, give material an indirect
heated dryer.
2. Under the traction of hot air blower,enter and heating heat pipe,heat pipe heat transfer
to the material,due to material and heat pipe to full contact,so the drying out of material to
is better than common rotary kiln dryer's drying effect of the market.
3. The new type rotary kiln dryer's device enables real-time water vapor emitted from the
top,and the end of the steam heat recovery and utilization,is a new type high efficient
energy- saving drying equipment.
4. New type rotary kiln dryer is based on over 28 years' experience, independent of
the development and production of a new type of high efficiency energy - saving drying
equipment.
5. Rotory kiln dryer uses heat pipe indirect to materials heating, materials and heat
source to full contact, steam to real- time from the top of device , heat source use hot -
blast stove heating not consumption, with dry effect good, and structure reasonable,
and output big, and energy consumption low, and install convenient, and operation
simple, and to range wide such as advantage of, is feed such as powder materials
the most ideal private device.
Features of rotary kiln dryer
1. Within the device is composed of dozens to hundreds of heat pipes materials enter
from the top of the heating duct fell after drying the bottom of the device,get to the bottom
will be hot after shave plate scraped the bottom of the tube material keeps contact with
heat pipe to have a drying effect. This can greatly improve thermal contact area and
utilization of the material.
2. The device has wet discharging device in the drying process can be a result of discharge
large amounts of water vapor in the first time, the complete separation of water vapor drying
faster the lower heat loss, because it avoids the material in the process of drying and water
vapour exposure to eliminate the material may not be caused by repeated drying of moisture
absorption.
3.Tail of air circulator,we can heat reuse of tail up into a dryer really do make full use of heat
to achieve energy - saving effect.
Raw material of rotary kiln dryer
1) Wood sawdust, wood chip, wood shavings, etc.
2) Coal powder, coal slurry, coal waste, etc.
3) Clay, slurry, etc.
4) Grain, such as wheat, rice, etc.
5) Mash, diatillers, etc.
6) Animal dungs.
Structure of rotary kiln dryer
Rotary kiln dryer consists of seven parts: they are feeding hopper, heat source, rotary
drum, lifting board, draught fan, unloader.
Features of rotary kiln dryer
1. Large production capability, continuous operation
2. Simple structure, convenient operation
3. Low malfunction, low maintenance cost.
4. Wide scope of application, can be used to dry the granular materials, favorable for those
materials with the big adhesion.
5. Great operating flexibility, the output of the products allows a larger fluctuation range, not
influencing the quality of the products.
6. High thermal efficiency(≥ 60%)
7. Medium temperature in outlets(about700 degree)
8. Alloy steel plate or stainless lifting plate
9. Guaranteed drying effect (≤ 5% after drying)
10. Final wood sawdust's humidity can be adjusted by adjusting its speed.
11. Far-ranging raw material: such as wood sawdust, wet sand, clay, coal, etc.
Main parameter of rotary kiln dryer
Type |
Dia. of Roller (mm) |
Length of Roller (m) |
Rolling Speed (r/min) |
Motor Power(kw) |
Cubage (m ³ ) |
Weight (t) |
Φ 0.6*8 |
Φ 600 |
8 |
8 |
4 |
2.26 |
5.1 |
Φ0.8*10 |
Φ 800 |
10 |
7.2 |
4 |
5.02 |
6.9 |
Φ1.0*10 |
Φ 1000 |
10 |
6.73 |
5.5 |
7.85 |
7.5 |
Φ1.2*12 |
Φ 1200 |
12 |
5.8 |
11 |
13.31 |
13.1 |
Φ1.5*12 |
Φ 1500 |
12 |
4.8 |
15 |
21.2 |
22.3 |
Φ 18*14 |
Φ 1800 |
14 |
3.2 |
30 |
48.22 |
45.8 |
Φ2.2*18 |
Φ 2200 |
18 |
3 |
37 |
70.43 |
50.3 |
Φ2.4*20 |
Φ 2400 |
20 |
2.83 |
45 |
90.43 |
78.4 |
Φ2.8*24 |
Φ 2800 |
24 |
2.59 |
75 |
147.8 |
97 |
Φ3.0*20 |
Φ 3000 |
20 |
2.6 |
55 |
141.3 |
102 |
Φ3.0*25 |
Φ 3000 |
25 |
2.6 |
75 |
176.7 |
110 |
Customers came to our factory to check our rotary kiln dryer

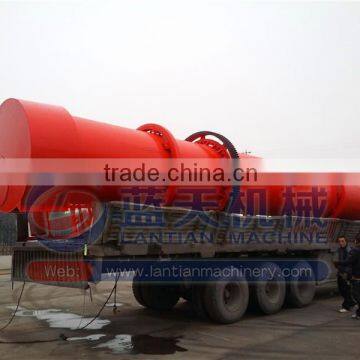

Delivery site of rotary kiln dryer
If you are interested in our rotary kiln dryer, please contact:
In order to provide you the most suitable rotary kiln dryer, could you share
me the following details? Thanks!
1) What's your raw material?
2) How many kilograms raw material do you want to dry up per hour?
3) What's your raw material's dimension?
Our factory:
FAQ of rotary kiln dryer
1. What the rotary kiln dryer can be used for ?
Rotary kiln dryer can dry many kinds of granules materials which contain moisture,
such as coal, coal slurry, slag, industrial waste, clay, sand, cow dung, chicken dung,
grain, etc. They are widely used in building materials, metallurgy, chemical industry.
2. Is the rotary kiln dryer's heating source directly contact with clay?
Rotary kiln dryer's heating source can provide about 700-800℃, so it will be very
dangerous if hot air directly contact the dry raw material. In order to avoide this, our
rotary kiln dryer has designed a special equipment to avoide hot spark enters into
rotary drum.
3. Can I use the coal or gas as the heating source?
Yea, you can use coal, gas, electricity, oil and wind power to heat the hot air dryer machine.
