Specifications
1.Automatic clay brick block making machine/fully auto brick machine2.Feeding mud,clay,coal gangue,etc
3.Engineers available

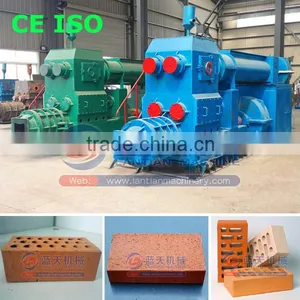

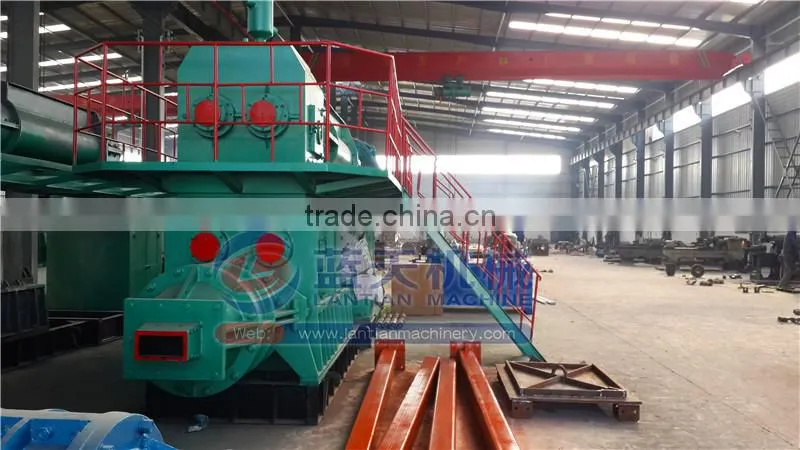

Automatic Clay Brick Block Making Machine/Fully Auto Brick Machine
♣ Introduction:
The clay brick block making machine, on the basis of absorbing and introducing the experiences at home and aboard, designed by our factory, is new type brick making machine. The series of clay brick block making machine is taking clay, shale, coal gangue, fly ash, mountain mud, silt, industrial tailings, sludge, etc. as raw materials, through crushing, mixing, baked brick making machine to make prescriptive cross-section of ordinary solid bricks, hollow brick and other products for building. Using the technology of our this clay brick block making machine can recycle the wastes, save energy and reduce consumption, which has the obvious economic benefits and social benefits.
♣ Performance:
1.Low noise when the clay brick block making machine working, low power consumption.
2.Automatic machine. After setting the size and strength of bricks, if the outlet bricks can’t reach the setted requirement, the unqualified bricks will return to the stock bin, after mixed, they will be pressed to the good bricks.
3.The clay brick block making machine adopts wear-resisting metal powder spray technology: the stirring shaft, twisted axis and body are processed by long time quenching.
4.The gear reducer is hard tooth face, and the clutch uses screw pressing patented technology, which improve the lifetime of our machine.
5.Reasonable design, compact structure, it can stable running without installing foundation bolts.
6.This clay brick block making machine can make solid bricks, big hole and large section of hollow bricks.
7.High efficiency, high extruding pressure, quick, convenient and reliable.
♣ Features:
1. Energy-saving double stage clay brick block making machine is a new type of vacuum extruder.
2. This clay brick block making machine can make bricks with clay, shale, coal gangue as materials.
3. This clay brick block making machine can produce solid and perforated bricks of different shapes.
4. Durable. Body and spare parts are made of wear-resistant steel that are delt with quenching and tempering treatment, and are painted with wear-resistant spray painting; so the machine has a long lifespan.
5. Good bricks. The extrusion pressure of this baked brick making machine is 3.0 Mpa. It can make firm mud volumn with low moisture content.
6. The yield of this machine is big, so it is used in mass produce.
7. Easy to maintain. It has a simple but compact structure. We also train the technician for you.
8. Fully automatic. It is labour saving. It helps the workers and the boss both.
9. Energy-saving. This clay brick block making machine has two stage, but it use only one decelerator and one motor.
10. From direct supplier. We are a manufacturer with 28-year experiences. We are not a middle man.
11. This clay brick block making machine is highly welcomed in India, Bangladesh, Uz, Turkey, etc. as it yields more profits with less cost.
♣ The bricks from brick making machine:
♣ The parameters of clay brick block making machine:
Model |
Capacity (pcs/h) |
Power (kw) |
Diameter of reamer |
Vacuum degree |
Dimension (mm) |
JZK 90-4.0 |
20000 - 28000 |
132 + 315 |
900mm |
≤92% |
9225 x 2890 x 3590 |
JZK 75-4.0 |
16000- 24000 |
110 + 250 |
750mm |
≤92% |
8955 x 3075 x 3310 |
JZK 60-4.0 |
15000- 22000 |
90 + 200 |
600mm |
≤92% |
8655 x 2450 x 2820 |
JZK 55-4.0 |
14000 - 20000 |
75 + 180 |
550mm |
≤92% |
8360 x 2800 x 3590 |
JZK 50-3.5 |
13000 - 18000 |
55 + 132 |
500mm |
≤92% |
5350 x 1800 x 2100 |
JZK 45-3.0 |
10000 - 13000 |
110 - 132 |
450mm |
≤92% |
4960 x 1680 x 1750 |
JZK 40-3.0 |
8000 - 10000 |
90 - 110 |
400mm |
≤92% |
4750 x 1500 x 1650 |
JZK 35-2.0 |
6000 - 8000 |
55 - 75 |
350mm |
≤92% |
3750 x 1340 x 1550 |
JZK 30-2.0 |
4000 - 6000 |
45 - 55 |
300mm |
≤92% |
3450 x 1220 x 1320 |

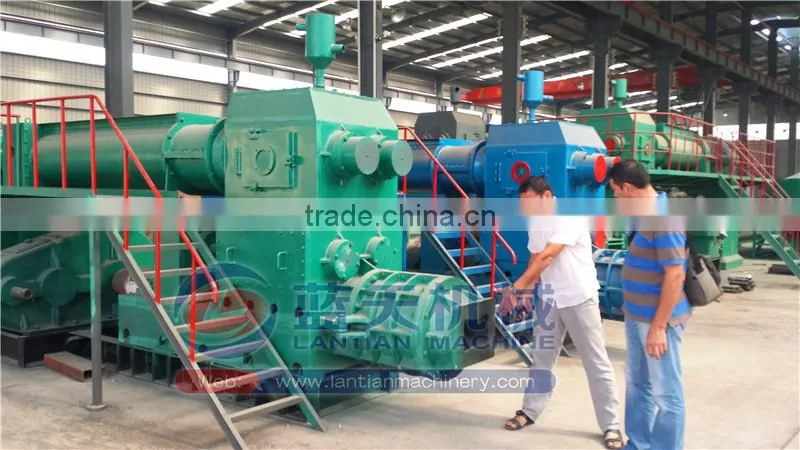

♣ Foreign customer visiting our factory:
1. After visiting our factory and our customers factory, we can talk about the details of the deal, choose types of clay brick block making machine according to your requirement on capacity.
2. When customers coming, we can provide working site of clay brick block making machine to see how the machines working and how is the process.
3. After you order our machines, our factory can provide professional technician go abroad and help to install the material clay brick block making machine, teach your worker to operate the machine, impart the skills of brick making, make sure you can produce perfect bricks.
♣ Other accessary machines for clay bricks production:
1. Box feeder:
Box Feeder is the feeding equipment which is used to balance and ration during brick producing. It is applicable to various bulk and block materials with controllable feeding speed and feeding quantity. It is the first part of clay brick block making machine.
2. High speed crushing machine:
High Speed crushing machine and wear on the roller machine is also a raw material crushing, squeezing, grinding equipment. The advantages of the device is low power, reasonable price, suitable for crushing clay raw materials. It is the second step of clay brick block making machine.

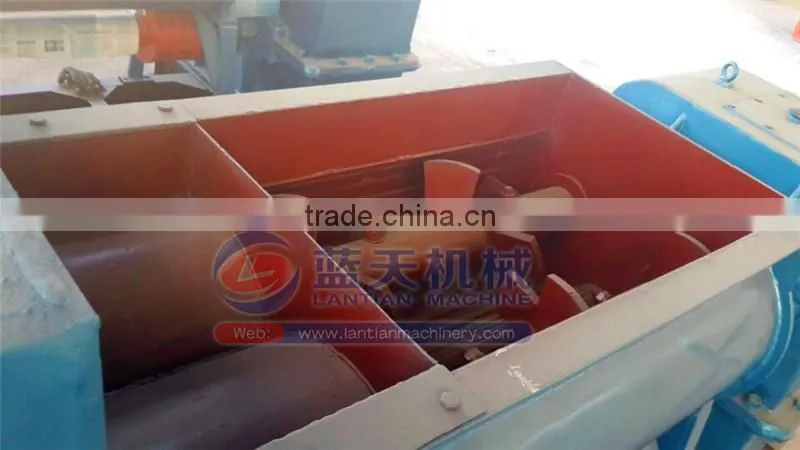

3. Double-shaft mixer:
Double-Shaft Mixer is used to mix water with crushed raw materials, increase the comprehensive quality of raw materials, greatly improve appearance quality and ratio of forming, thus it is indispensable raw material processing machine for red clay brick making.
4. Strip cutting and blank cutting machine:
Strip Cutting and Blank Cutting machine is mainly used to cut mud which is squeezed from extruder into qualified red clay brick during sintering brick production. The cutter is the new vertical strip cutting and blank cutting system designed and deceloped by our factory which adopts advanced automatic PLC control, combing with photoelectric, close positioning, pneumatic and electric servo systems and etc. It has advanage of high accuracy, easy operation, and simple maintenance an so on.
♣ On-site photo:
We can design the fully automatic or Semi-automatic brick production line. For the baking kiln, we can design and build the tunnel kiln or annual kiln according to your requirements.

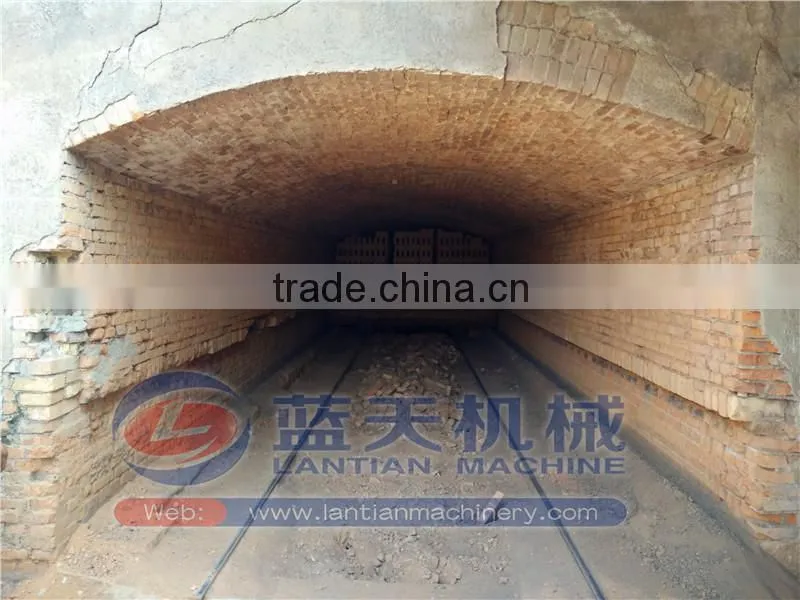

Tunnel kiln is the automatic kiln for baking the green bricks. It needs less manpower, and the the whole process of feeding and discharging will be controlled by a person. And it needs about 3-4 hours to bake the bricks. This kiln is most suitable for the large capacity production line.
Annual kiln is the manual kiln and it needs a lot of labors. The workers need to put the green bricks on the cars and bring them into the kiln. And this kiln is most suitable for small and middle scale brick production line.
We will take every customer to see the brick machines worksite to show the brick production.
♣ Exporting of brick making machine:
♣ Our Service of Gongyi Lantian Machanical Plant:
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable brick making machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.
5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our clay brick block making machine can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.

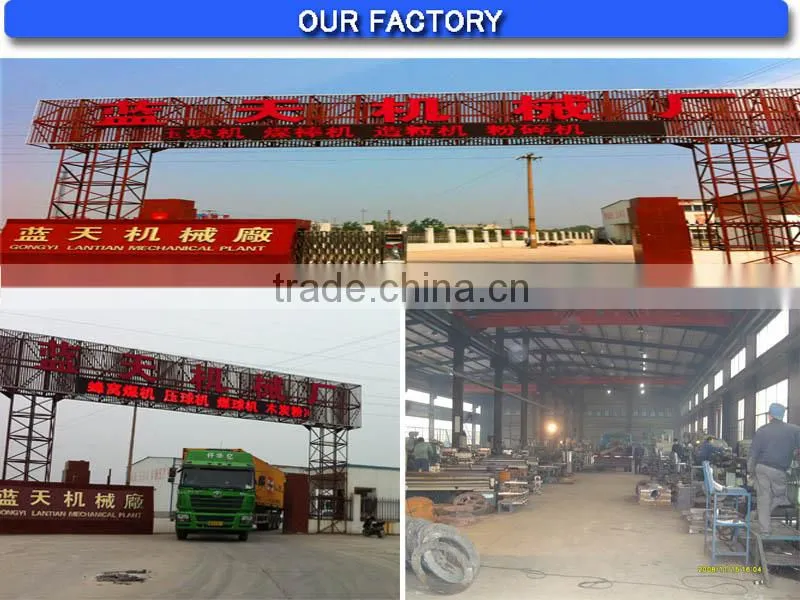

♣ About us:
Gongyi Lantian Mechanical Plant is a professional factory to produce all kinds of briquette machines and red brick making machines and accessary machines such as crusher, mixer, feeder, automatic setting machine, etc. We always expect to cooperate with you.
♣ Why choose Lantian Plant:
1. We are a large direct factory with strong processing, selling, after-sales supporting, developing, engineer supporting team.
2. More advanced technology (such as national standard reducer , Mud cylinder and driving parts as one body improving the stability , wear-resistance metal spraying process , etc ) compared with other supplier in the same line.
3 The main material or parts are provided by China large & famous machinery supplier.
4. Favourable technology support. Accept customer’s consultation, make solution plan according to customer request, provide technical analyze & support from beginning of project till after-sales service.
5. We are concentrated on export business, acquainted with market abroad. Service will be professional.
6. Provide the real worksite for every customer to show bricks production and the whole project.
♣ The contact information:
If there is any interest in our machines, please don't hesitate to contact me.
