Help CenterTape Slitting Machine
Related Products
Specifications

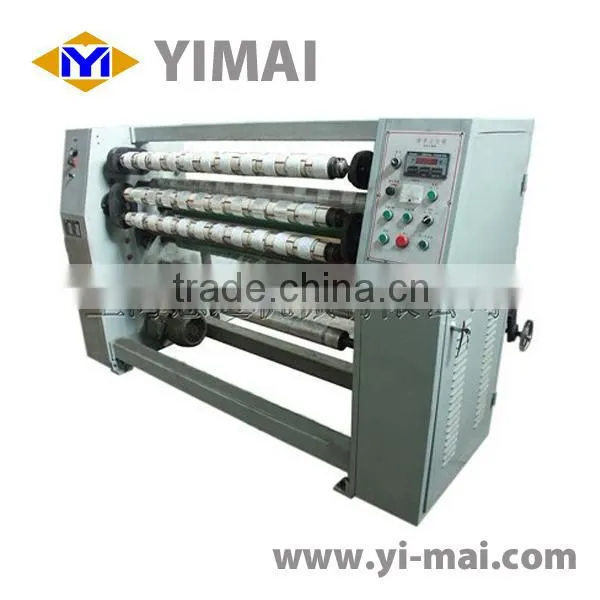

Tape slitting machine ,flexible and easy to operate.Short training time.This tape slitting machine Used to divide and cut rolls of BOPP Tape, PET Film, tin foil and some adhesive tape into strips, and then roll them into coils. 1)Parallel knife, easy to adjust and assemble.
2)Magnetic Powder Brake for unwinding part, automatic tension control.
3)Frictional type shaft for rewinding, semi-automatic tension control.
4)Three sectors meter, can automatically stop machine with preset length.
5)Motor with frequency conversion by inverter.
6)Camber opening roller is good for extending material.
Item |
Parameters |
|||||
Width of material (mm) |
900 |
1100 |
1300 |
1700 |
||
Max. unwinding diameter (mm) |
800 |
|||||
Min. Slitting width (mm) |
>15 |
|||||
Max.rewinding width (mm) |
Four shafts |
150 |
||||
Double shafts |
300 |
|||||
Diameter of paper core (mm) |
76(3") |
|||||
Design speed (m/min) |
10~180 |
|||||
Power supply (Kw) |
4Kw |
5.5Kw |
||||
Dimension(cm) |
2200×970×1250 |
2200×1170×1250 |
2200×1370×1250 |
2200×1770×1250 |
||
Weight(kg) |
1000 |
1200 |
1300 |
1500 |
||
