Specifications

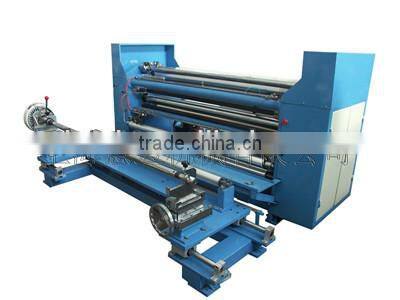

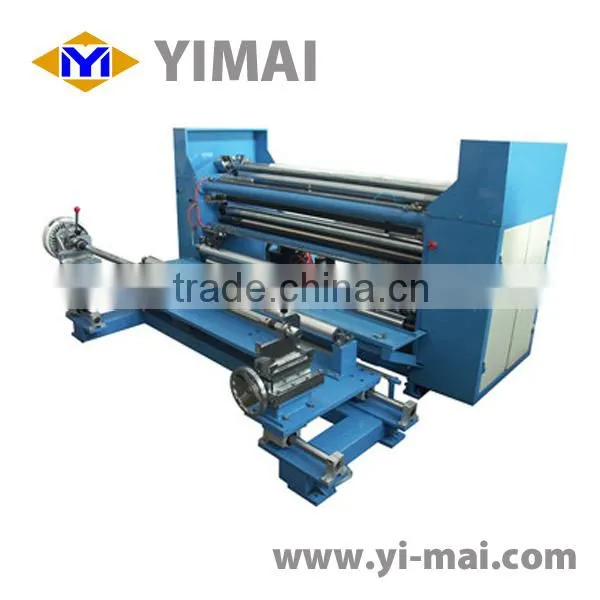

Fiber glass slitting machine used to cut non-woven,paper,film,laminating material ect into strips then rewind it.Application:
used to cut non-woven,paper,film,laminating material ect into strips then rewind it..
Features:
1.choose shear type or air pressure type round cutter.
2.independence unwind with magnetic device and automatoic tension controller.
3.unwind with web guide system(EPC) and adjust device to adjust the elsatic of fabric.
4.rub rewind with magnetic powder taper tension controller.
5.frequency conversion controller ,meter counter can stop the machine automatic by preset.
6.air expanding shaft for unwind and rewind.
7.machine frame use armor plate, both sides with cover pieces, surface spray with plastic.
Main technic parameters:
Item |
parameters |
||||
Roller width(mm) |
900 |
1100 |
1300 |
1700 |
|
Min cutting width(mm) |
≥20 |
||||
Max diameter of unwind(mm) |
800 |
||||
Max diameter of rewind(mm) |
400 |
500 |
|||
Design speed(m/min) |
5~150 |
||||
