Home > Products > Slitting & Rewinding Machines > YM10F Slitting machine(tyre rubber)

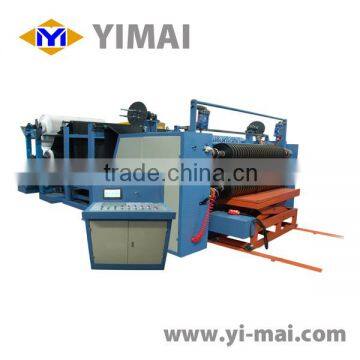

YM10F Slitting machine(tyre rubber)
- 30 Set / Sets per Month
- Shang Port
- T/T
Product Details
Condition: | New | Type: | Rubber Cutting Machine | Place of Origin: | Shanghai, China |
Brand Name: | YIMAI | Model Number: | YM10F | Voltage: | 200~380V |
Power(W): | 3000 | Dimension(L*W*H): | 1500 | Weight: | 2.5T |
Certification: | No | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Application:
Nylon tire rubber strip, laminating with plastic fabric (polythene) then cutting it and rewind it, electric
controlled by PLC.
Features:
1.Human interface,PLC programming control, touch screen 10 inches.
2.The whole machine use helical gear down frequency motor, Mitsubishi frequency converter.
3.Slitting width 20mm, stagger rewind , air knife 60sets
4.Swing frame in the middle,Ultrasonic correction device(import EPC)
5.Unload lifting trolly reduce labor intensity.
Main specification:
Item | Parameters | |
Roller width(mm) | 1300 | 1700 |
Min slitting width(mm) | 20 | |
Max diameter of unwind(mm) | 1300 | |
Max diameter of rewind(mm) | 500 | |
Speed (m/min) | 5~60 |
FAQ:
1.Q: Are you a factory or trading company?
A:We are a factory and manufacturer.
2.Q: Where is your factory located? How can I visit there?
A:Our factory is located in BaoShan District,Shanghai, China. You can fly to Shanghai Pudong airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q: Could you send me your samples?
A: We are honored to receive you samples for Slitting or Laminating test ,then send to you back.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. YIMAI people always attach great importance to quality controlling from the very beginning to the very end.
