8t Excavadora De,Maquinaria Para la Construccion Excavator

8t Excavadora De,Maquinaria Para la Construccion Excavator photo-1
8t Excavadora De,Maquinaria Para la Construccion Excavator photo-2
8t Excavadora De,Maquinaria Para la Construccion Excavator photo-3
8t Excavadora De,Maquinaria Para la Construccion Excavator photo-4
8t Excavadora De,Maquinaria Para la Construccion Excavator photo-5
8t Excavadora De,Maquinaria Para la Construccion Excavator photo-6
US$ 25,000 - 45,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XINIU/RHINOCEROS
Model Number:
XN80-9
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name XINIU/RHINOCEROS
Model Number XN80-9
Condition New
Moving Type Wheel Excavator
Operating Weight 8000kg
Bucket capacity 0.25m3
Maximum Digging Height 6790mm
Maximum Digging Depth 2985mm
Machine Weight 8000kg
Max Digging Radius 6135mm
Rated Speed 35km/h
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

8t excavadora de,Maquinaria para la construccion excavator

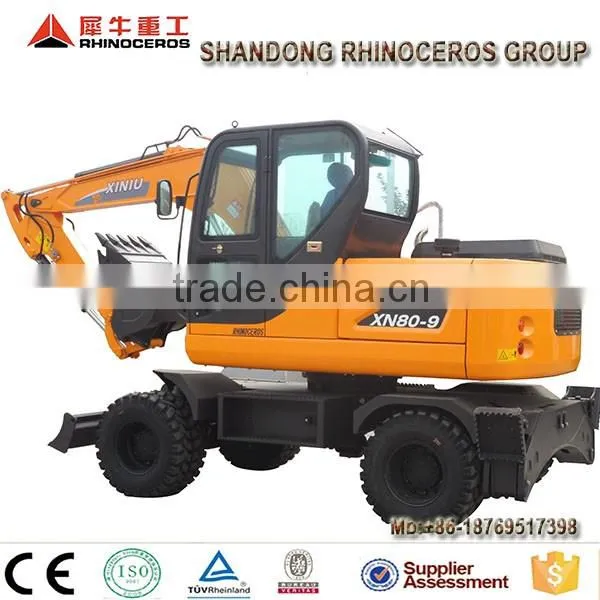

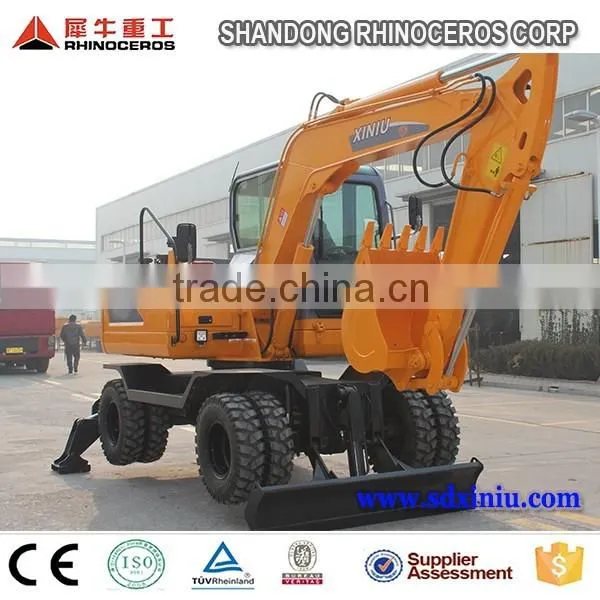

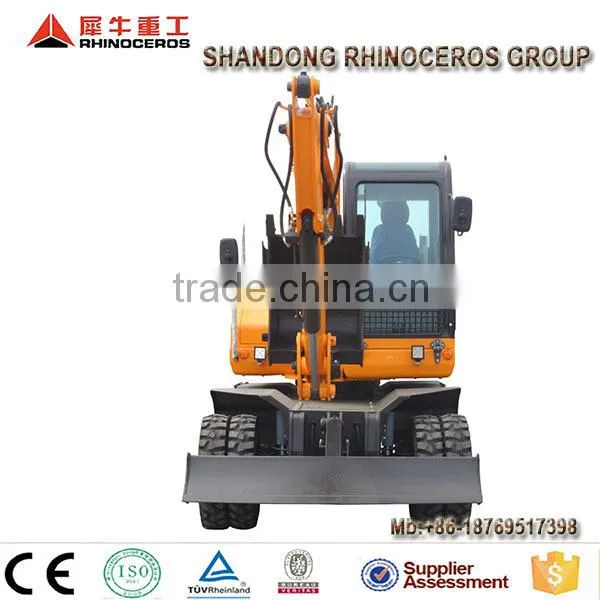

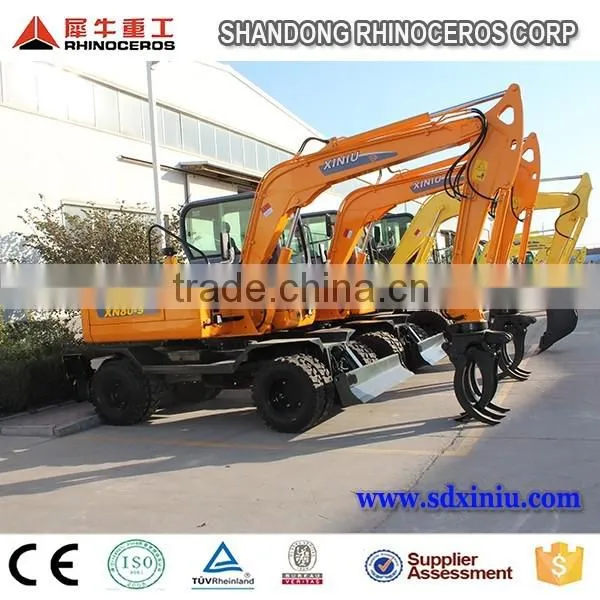

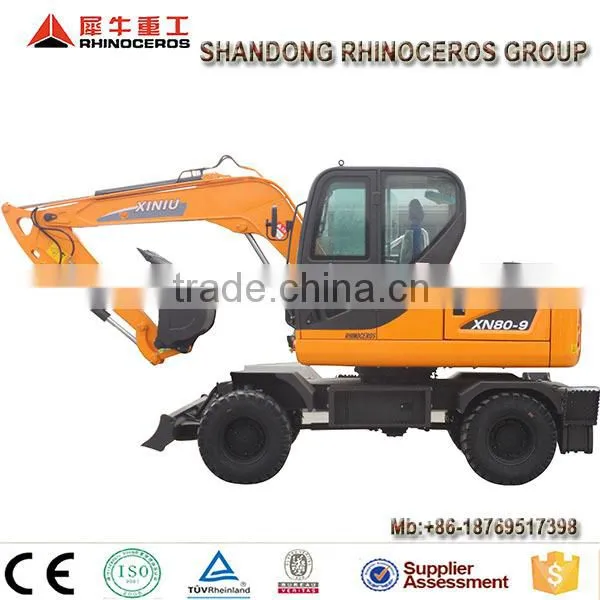

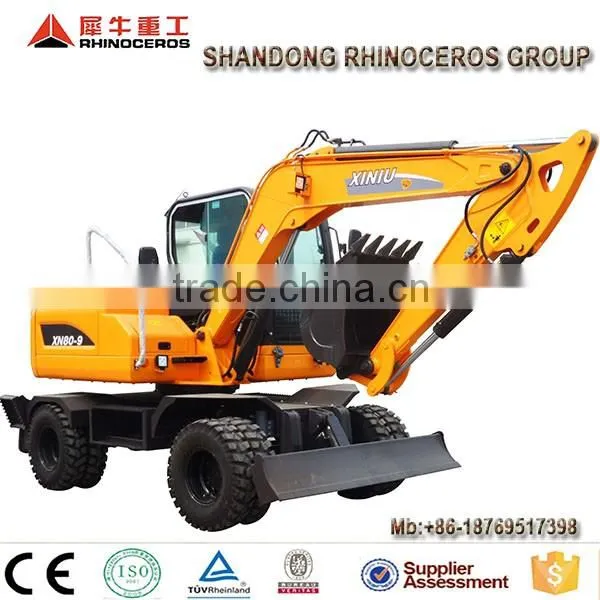

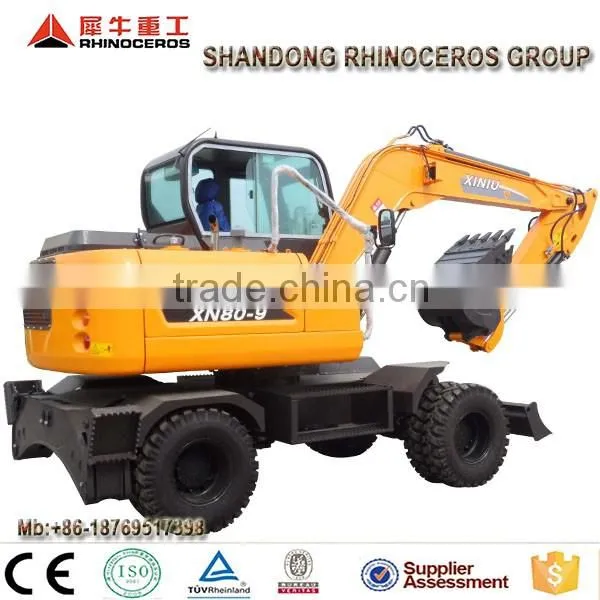

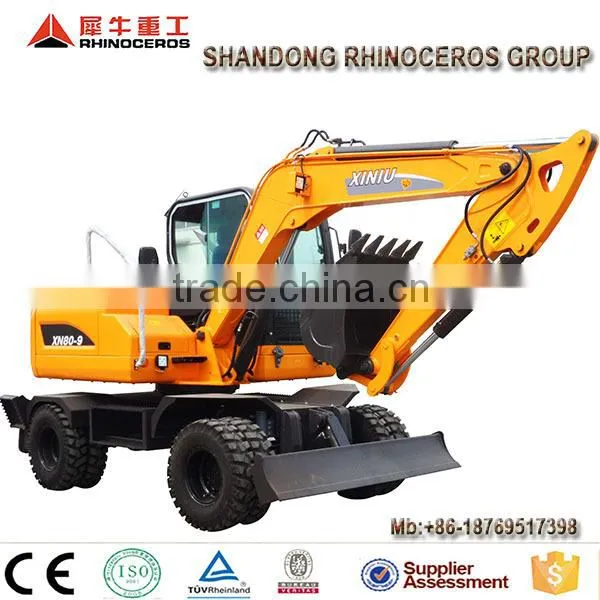

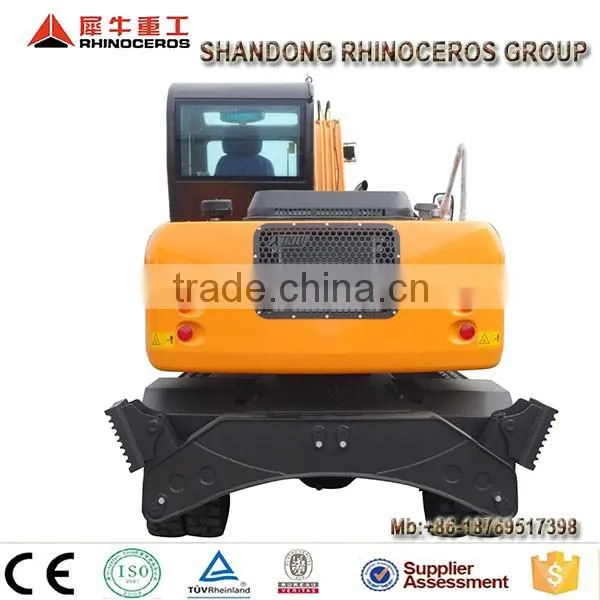

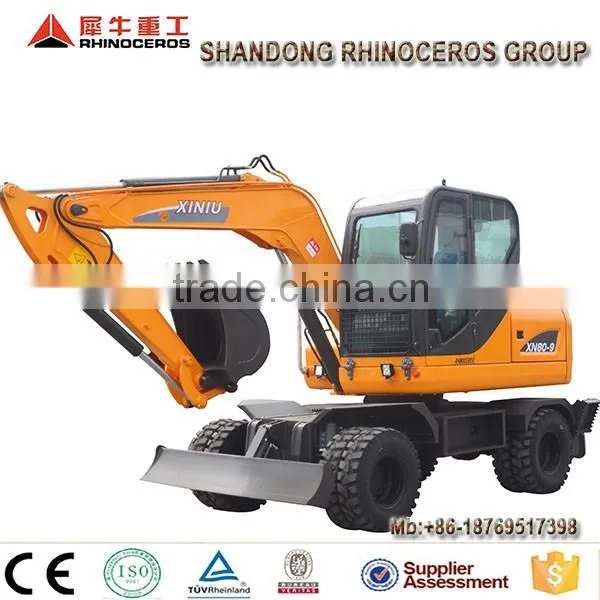

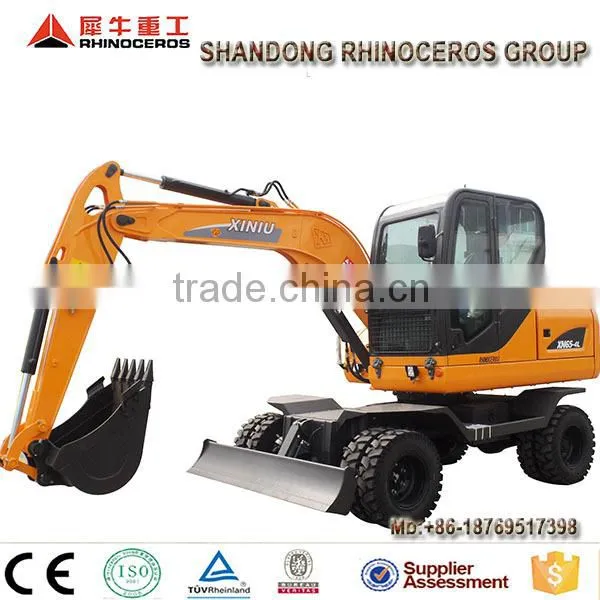

1.Main photos for wheel excavator XN80-9:

8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



8t excavadora de,Maquinaria para la construccion excavator



2.Detail information:

MAIN DIMENSIONS

UNIT

XN80-9

Operating Weight

kg

8000

Overall Dimension

mm

6040x2060x2900

Bucket Capacity

cbm

0.25

Wheel Base

mm

2400

Wheel Tread

mm

1600

Ground Clearance

mm

290

Blade Height

mm

295

Blade Dimension

mm

2024x345

Tire Type



8.25-16

SYSTEM CONFIGURATION





Engine Type



XINCHAI(A498BZG)

Rated Power/Speed

kw

48

No. of Cylinders/Type



4 cylinder / in line

Starting Type



Electric 24V

Drive Method 2WD/4WD



Mechanical 4WD

Hydraulic Main Pump



SHIMADZU

Hydraulic System Pressure

MPa

22

Hydraulic System Flow

L/min

146

Valve



SUNJIN

Swing Motor



EATON

Max Swing Speed

r/min

12r/min

Travel Motor





Max Travel Speed

km/h

35km/h

Axle



KAICHUANG

Gear



F: 1-5 ; R: 1

Bucket Digging Force

Kn

50

Arm Digging Force

Kn

38

Grade ability

degree

35

Working Fuel Consumption

L/h

6.64

Diesel Oil Tank Capacity

L

130

Hydraulic Oil Tank Capacity

L

120

OPERATION RANGE





Munising Radius

mm

2552

Boom Length

mm

3300

Arm Length

mm

1750/2000

Max Digging Height

mm

6790

Max Dumping Height

mm

4910

Max Digging Depth

mm

2985

Max Digging Radius

mm

6135







Standard Machine With A/C

AC

Standard

Packing Way



1 unit in a 40HQ

Passed Certificates



CE  ISO

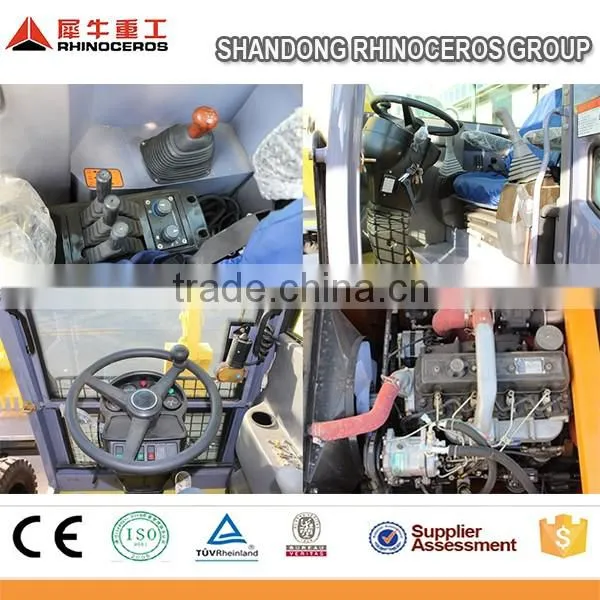

3.Parts photos

8t excavadora de,Maquinaria para la construccion excavator

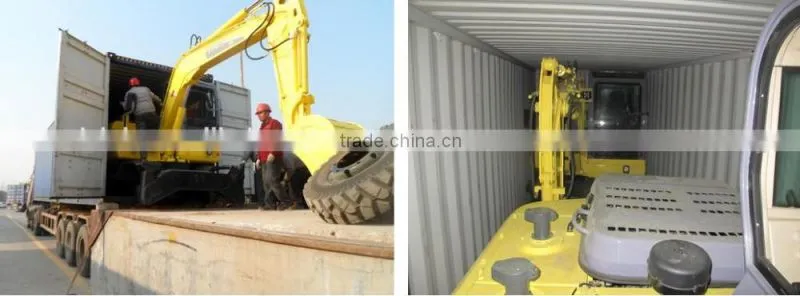

4.Packing&shipping

1. Standard packing, the machine body is without packing,but the machine will be well fastened and fixed in the container by wire rope



2. Spare parts or wearing parts will be packed in wooden box or paper carton



3.Standard shipping method is by container,most of our excavator and backhoe loader can be loaded in container

8t excavadora de,Maquinaria para la construccion excavator

5. Factory informations:

Shandong Rhinoceros Engineering Machinery Co., LTD is a professional manufacturer of construction machinery, engineering machinery and trucks in china, the machines cover wheel excavator 5-15 ton, crawler excavator 6 -45 ton , backhoe loader 5-7 ton, wheel loader 0.5-5ton, concrete pump 21-55 meter, small trucks and mini dumper. So i am confident there must be one model can meet to your needs. Most of the machines are with CE, TUV certificate,company ISO certificate. Please send me message for more information.

8t excavadora de,Maquinaria para la construccion excavator



Main products:
1) crawler excavator: 6t, 7t, 8.4t, 13.5ton;
2) wheel excavator: 5t, 6t, 7t, 8t 10t 15ton, 2wheel driven or 4 wheel driven;
3) backhoe loader XNWZ74180, 7ton, similar to JCB 3cx but much cheaper;XN780 ,6 ton;XN880,8 ton
4) concrete pump, 22m 25m and 28 meters sizes.
All products good quality with CE ISO certification, and we sold in a very economic price

8t excavadora de,Maquinaria para la construccion excavator
6.Our coustomer in the exhibition:


8t excavadora de,Maquinaria para la construccion excavator



7.Our Services



We try our best to making your experience with us a positive one and therefore we stand behind everything we sell.

with 1 years or 1200 working hours manufacturers warranty whichever comes first.



Pre-sale service:
Call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.

Studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples and suggestions promotely and considerately, according to customer's production scale and technical requirements.



Selling service:
Promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on choosing the place, how to save cost, and play the maxium value of our machine



After-sale Service:

1. our technicians will provide on-site service to customers in china. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.

2. within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.

3. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.

4. our company will research the staffs service attitude aperiodically to improve the service satisfaction.

If you're interested in our products ,please feel free time to contact me for more information:
