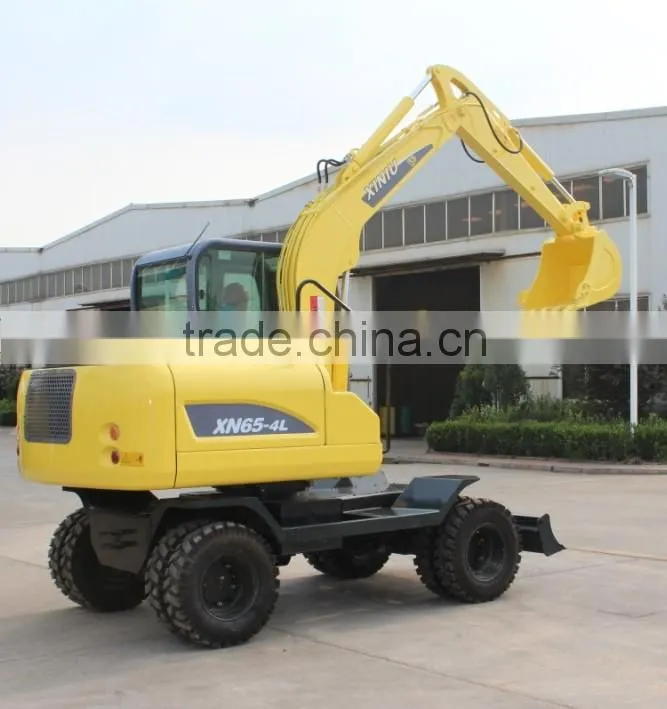

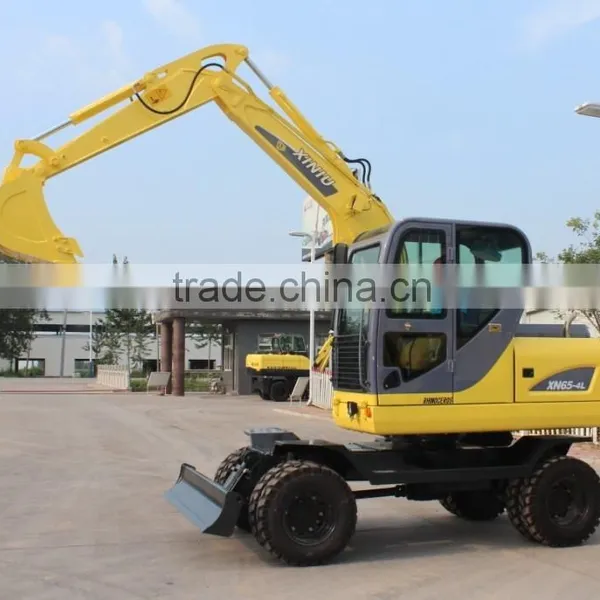

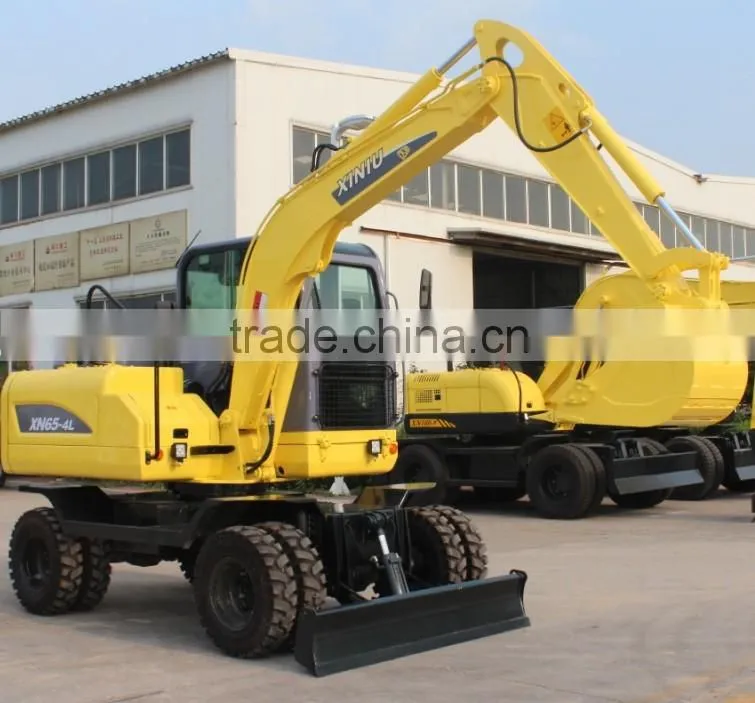

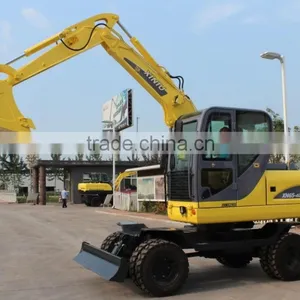

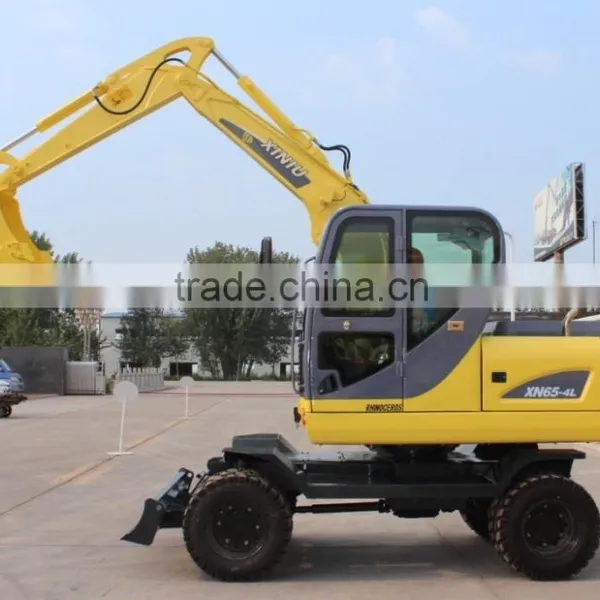

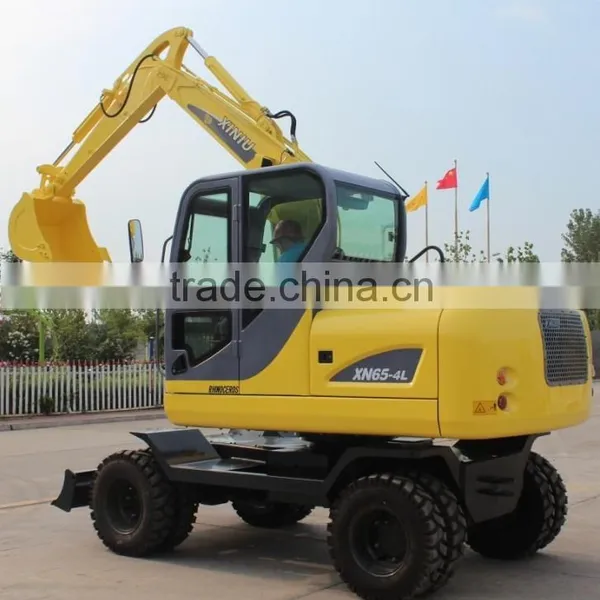

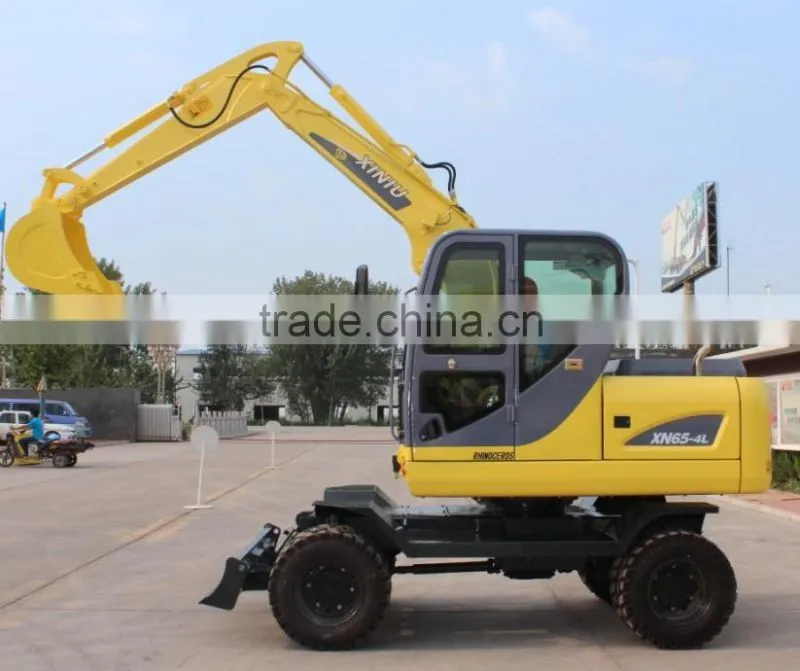

XN65-4L EXCAVATOR
WHEEL EXCAVATOR
XN65-4Lhydraulic wheel excavator is a new machine developed on the basis of XNW51360.it is with the features of compact design, beautiful appearance, easy operation and suitable to work in narrow space .this machine adopts imported motor,, with four driver axle. World famous brand engine, powerful and high efficiency, your ideal choice for construction work

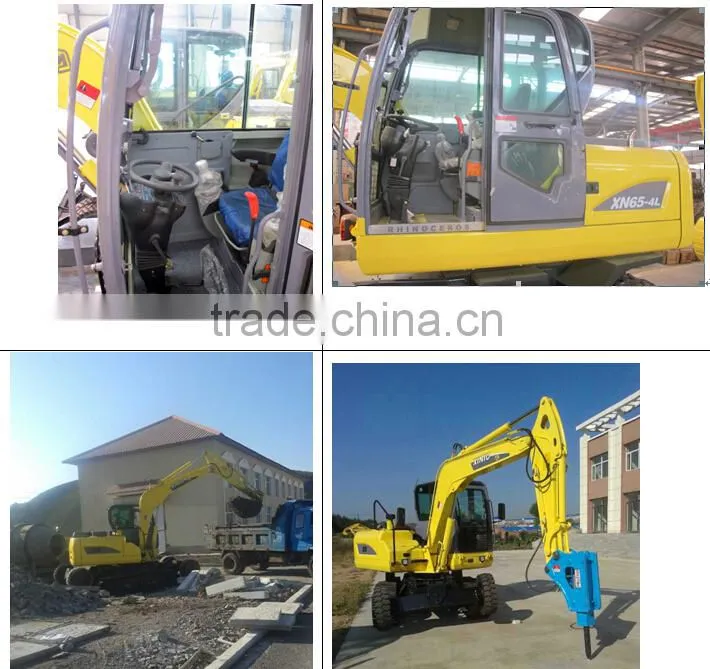

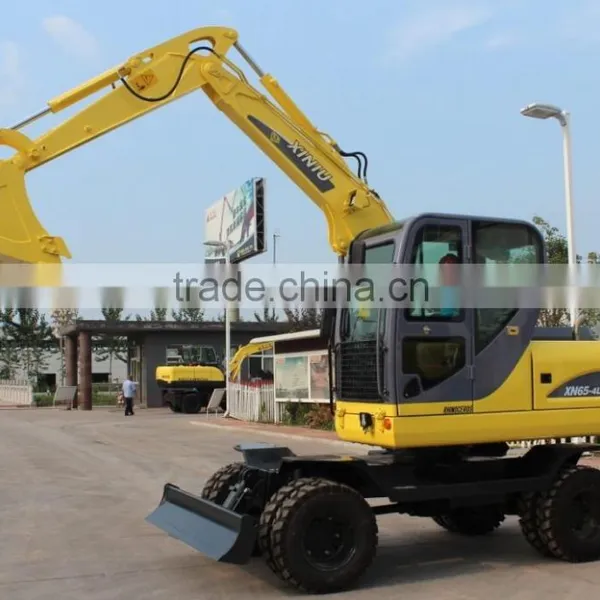

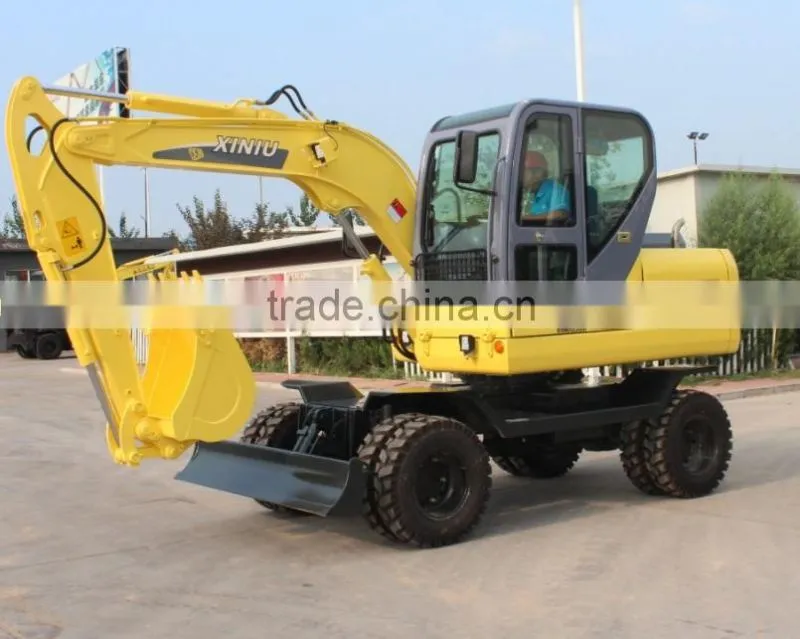

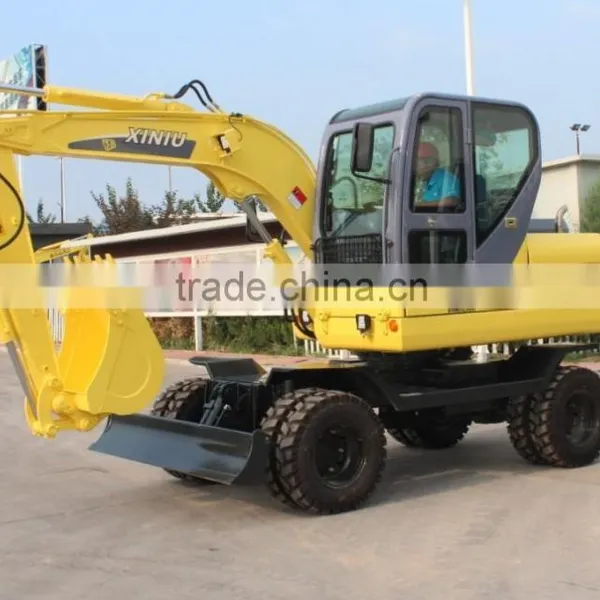

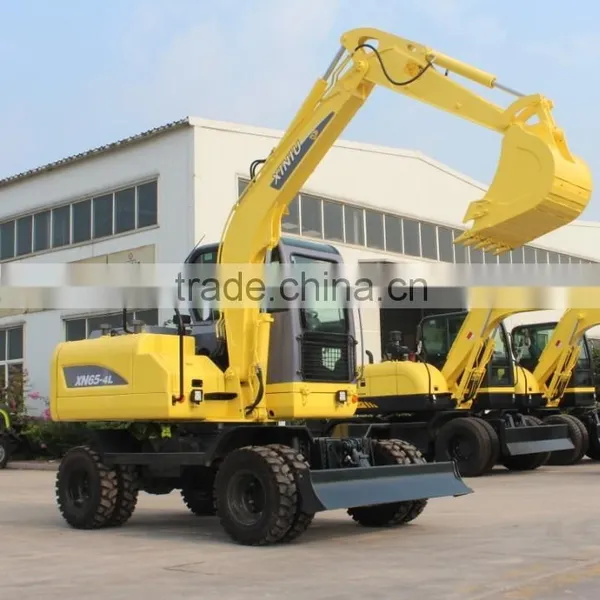

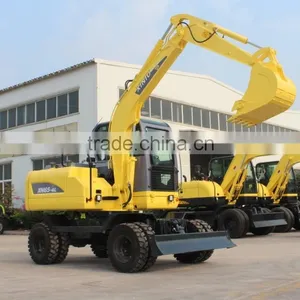

WORKING PHOTO:
DETAILS FOR PRODUCT:
MAIN DIMENSIONS |
UNIT |
XN65-4L |
(Operating Weight) |
kg |
6000 |
(Overall Dimension) |
mm |
5598x2035x2780 |
(Bucket Capacity) |
cbm |
0.25 |
(Wheel Base) |
mm |
2350 |
(Wheel Tread) |
mm |
1580 |
(Ground Clearance) |
mm |
260 |
(Blade Height) |
mm |
295 |
(Blade Dimension) |
mm |
2000x345 |
(Tyre Type) |
7.50-16 |
|
SYSTEM CONFIGURATION |
||
(Engine Type) |
XINCHAI(A498BZG) |
|
(Rated Power/Speed) |
kw |
48 |
(No. of Cylinders/Type) |
4 cylinder / in line |
|
(Starting Type) |
Electirc 24V |
|
(Drive Method 2WD/4WD) |
Mechanical 4WD |
|
(Hydraulic Main Pump) |
SHIMADZU |
|
(Hydraulic System Pressure) |
MPa |
18 |
(Hydraulic System Flow) |
L/min |
115 |
(Valve) |
RUILONG |
|
(Swing Motor) |
EATON |
|
(Max Swing Speed) |
r/min |
12r/min |
(Travel Motor) |
/ |
|
(Max Travel Speed) |
km/h |
35km/h |
(Axle) |
KAICHUANG |
|
(Gear) |
F: 1-5 ; R: 1 |
|
(Bucket Digging Force) |
Kn |
42 |
(Arm Digging Force) |
Kn |
34 |
(Gradeability) |
degree |
35 |
(Working Fuel Consumption) |
L/h |
6.64 |
(Diesle Oil Tank Capacity) |
L |
120 |
(Hydraulic Oil Tank Capacity) |
L |
110 |
OPERATION RANGE |
||
(Min.Swing Radius) |
mm |
2552 |
(Boom Length) |
mm |
3100 |
(Arm Length) |
mm |
1600 |
(Max Digging Height) |
mm |
5370 |
(Max Dumping Height) |
mm |
3810 |
(Max Digging Depth) |
mm |
2857 |
(Max Digging Radius) |
mm |
5975 |
(Standard Machine With A/C) |
AC |
Optional |
(Packing Way) |
2 units in a 40HQ |
|
(Passed Certificates) |
CE ISO |
Container loading
1. Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. Spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container, most of our excavator and backhoe loader can be loaded in container. Convenient.
We try our best to making your experience with us a positive one and therefore we stand behind everything we sell.
This item comes with 1 years or 1200 working hours manufacturers warranty whichever comes first.
Pre-sale service:
Call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.
Studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples and suggestions promotely and considerately, according to customer's production scale and technical requirements.
Selling service:
Promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on choosing the place, how to save cost, and play the maxium value of our machine
After-sale Service:
1. our technicians will provide on-site service to customers in china. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.
2. within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.
3. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.
4. our company will research the staffs service attitude aperiodically to improve the service satisfaction.
Shandong Rhinoceros Engineering Machinery Co., LTD is a professional manufacturer of construction machinery, engineering machinery and trucks in china, the machines cover wheel excavator 5-15 ton, crawler excavator 6 -45 ton , backhoe loader 5-7 ton, wheel loader 0.5-5ton, concrete pump 21-55 meter, small trucks and mini dumper. So i am confident there must be one model can meet to your needs. Most of the machines are with CE, TUV certificate,company ISO certificate. Please send me message for more information.
