Specifications
KU band octo LNB1.Low Noise Figure 0.3dB
2.HDTV digital ready
3.Easy installation
4.Waterproof
Anhui Risesat Electronics Co.,LTD

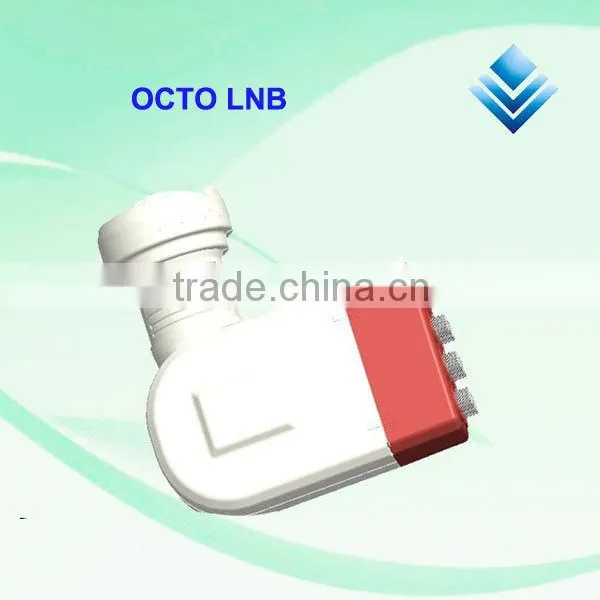

2014 hot product ku band OCTO LNB KU OCTO LNB factory price
Universal Ku Band Octo LNB, Ku Band LNB with 8 Outputs
Input Freq:10.7-12.75Ghz
Output Freq:950-2150MHZ
Noise Figure: 0.3dB
factory lowest price Universal Ku Band Octo LNB, Ku Band LNB with 8 Outputs
Input Freq: 10.7-12.75Ghz
Output Freq: 950-2150MHZ
L.O.Freq: 9.75/10.6Ghz
Noise Figure: 0.3dB
Conversion Gain: 50-70dB
A. Input Frequency
1. Low Band: 10.7~11.7Ghz
2. High Band: 11.7~12.75Ghz
B. Output Frequency
1. Low Band: 950~1950MHZ
2. High Band: 1100~2150MHZ
C. L.O. Frequency
1. Low Band: 9.75 Ghz
2. High Band: 10.6Ghz
D. L.O. Stability
1. Low Band: ±1MHZ(-40 TO +70)
2. High Band: ±1MHZ(-40 TO +70)
E. Noise Figure: 0.3dB
Conversion Gain: 50~70dB
Input VSWR: 2.5:1(max)
Output VSWR: 2.0:1(max)
F. Supply Voltage
1. Ca: 11.5~14.0V(Vertical Polarization) 13 VDCType
2. Cb: 16.0~19.0V(Horizontal Polarization)
Direct Current 150mA
Control Signals:
1. Low Band: Ca or Cb (see below)
2. High Band: Cc or Cb(see below)
3. Cc: Continues 22KHz
Operation Temperature: -40 TO +70
Storage Temperature: -40 TO +80
Relative Humidity: 0%~95%
Phase Noise:
1. -50dBc/Hz——1kHz(max)
2. -75dBc/Hz——10kHz(max)
3. -95dBc/Hz——100kHz(max)
Input Frequency Range |
LOW Band:10.7~11.7GHz |
|
High Band:11.7~12.75GHz |
Output Frequency Range |
Low Band: 950 - 2050MHz |
|
High Band: 1100 - 2150MHz |
Input VSWR |
2.5:1 |
Output VSWR |
2.5:1 |
L.O. Frequency |
Low Band 9.75GHz |
|
High Band 10.6GHz |
L.O. Stability |
±2MHz @ (-40c~70c) |
L.O. Phase Noise |
-70dBc/Hz (1KHz Offset) |
|
-90dBc/Hz (10KHz Offset) |
|
-110dBc/Hz (100KHz Offset) |
Conversion Gain |
60dB (TYP) |
Gain Flatness |
±0.5dB/6MHz; ±2.5dB/IN BAND |
Noise Figure |
±0.3dB (Typ) |
Image Rejection |
50dB(Typ) |
Output Power |
+5dB (Min) (at 1dB gain compression) |
Cross Polarization Discrimination |
23dB(Min) |
DC SUPPLY VOLTAGE |
11~14.5V (V),15.5~22V (H) |
SUPPLY CURRENT |
130mA (MAX) |
LOW/HIGH BAND SWITCHING |
Low Band: 0Hz HIGH BAND: 22KHz±4KHz |
Output Connector |
75Ω "F" type female |
RELATIVE HUMIDITY |
0%~95% |
Operating Temperature |
-30 °C to +70 °C |
