ku Quad Lnb Factory Lowest Price

Name: ku Quad Lnb Factory Lowest Price
Brand: Risesat
SKU: 126335817
Availability: InStock

US$ 4.943 - 5.452 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Risesat

Model Number:

RS-104

Anhui Risesat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Risesat

Model Number RS-104

Specifications

ku quad lnb
1.Universal LNBF
2.universal high gain signal
3.factory Price lowest
4.HDTV digital ready

ANHUI RISESAT ELECTRONIC CO.,LTD

KU QUAD LNB Factory lowest price

Works with SD&HD(MPEG2&4)signal
Ku Band Frequencies 11.7-12.75 GHz
IN STOCK KU band Quad lnb fast delivery

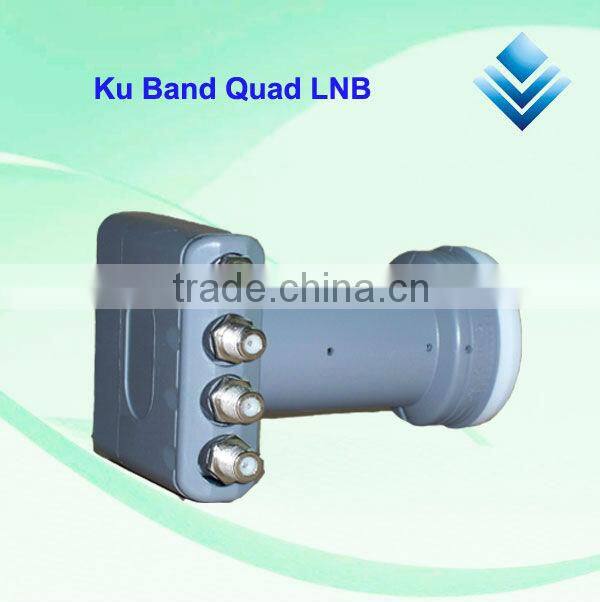

KU band Quad LNB

Works with SD & HD(MPEG2&4) signal

Wideband Input Frequency Range from 10.70 GHz ~ 12.75 GHz

Output Frequency Range from 950 MHz ~ 2150 MHz

Superior Low Phase Noise for Digital Reception

Low Noise Figure & High Isolation performance

Excellent D.R.O Stability

Easy Installation of Digital Reception

Guaranteed Water Proof

Input Frequency Range	LOW Band:10.7~11.7GHz
	High Band:11.7~12.75GHz
Output Frequency Range	Low Band: 950 - 2050MHz
	High Band: 1100 - 2150MHz
Input VSWR	2.5:1
Output VSWR	2.5:1
L.O. Frequency	Low Band 9.75GHz
	High Band 10.6GHz
L.O. Stability	±2MHz @ (-40c~70c)
L.O. Phase Noise	-70dBc/Hz (1KHz Offset)
	-90dBc/Hz (10KHz Offset)
	-110dBc/Hz (100KHz Offset)
Conversion Gain	60dB (TYP)
Gain Flatness	±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure	±0.3dB (Typ)
Image Rejection	50dB(Typ)
Output Power	+5dB (Min) (at 1dB gain compression)
Cross Polarization Discrimination	23dB(Min)
DC SUPPLY VOLTAGE	11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT	130mA (MAX)
LOW/HIGH BAND SWITCHING	Low Band: 0Hz HIGH BAND: 22KHz±4KHz
Output Connector	75Ω "F" type female
RELATIVE HUMIDITY	0%~95%
Operating Temperature	-30 °C to +70 °C
