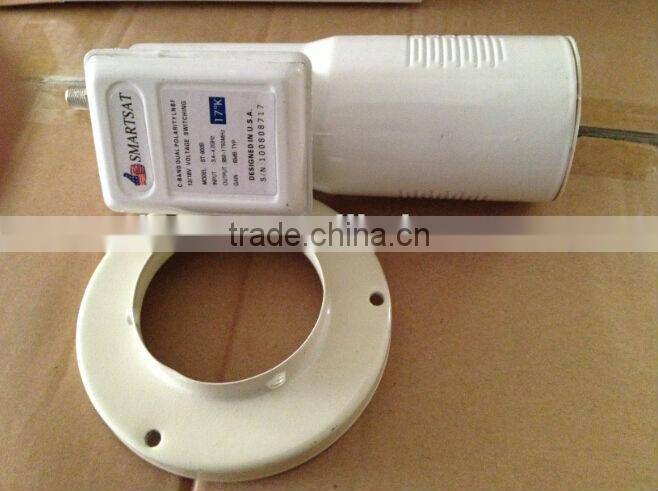

2014 hot product C band LNB good quality Factory price

Specifications

C band LNBF
1.Dual Polarity Switchable
2.Super low Noise&Digital Ready
3.High Gain Output
4.17"K Factory lowest price

ANHUI RISESAT ELECTRONI CO.,LTD

2014 hot product C band LNB  good quality Factory price







Input RF Frequency :3.7~4.2GHz

 Output IF Frequency :950~1450MHz

Noise Figure :0.7(Tpy) 1.3(Max)

 F/D Ratio(F/D) :0.28~042(Adjustable)

Input Reflector Type Prime Focus



Cross Pol.lsolation :20dB(Type)

Conversion Gain: 62dB(typ) 55dB(Min)

Gain Variation :±0.5dB /27MHz

Gain Flatness: ±4dB /(500MHz)

Image Rejection :45dB(Min)



Output Frequency Range:950~1450MHz

L.O. Frequency: 5.15GHz

L.O. Frequency Stability: ±1.0 MHz @ 25°C

 ±2.5MHz @-40°C~+60°C

L.O. Phase Noise: -60dBC/Hz(1KHz Offset)



 D.C. Current Consumption: 150mA ( max)

Operating Temperature:  -40°C~+60°C





















welcome to visit our factory

contact SKYPE: risesat
