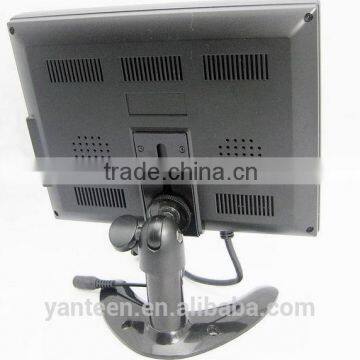

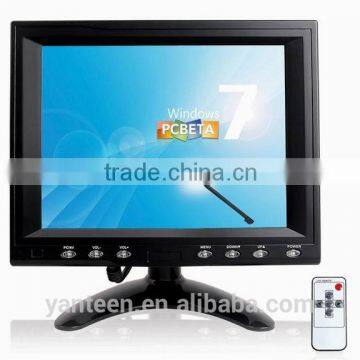

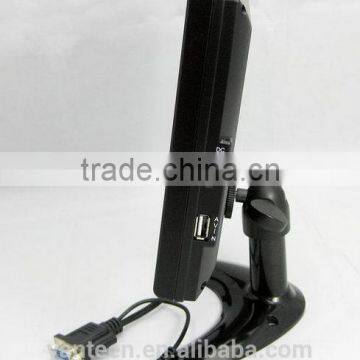

8inch touch screen lcd monitor for car pc
- 100000 Unit / Units per Month
- Shenzhen
- T/T Credit Card PayPal
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 8inch | Type: | Resistive |
Interface Type: | D-Sub, USB | Resolution: | Other, 1024 x 768, 800x600 and 1024x768 option | Brand Name: | OEM&neutral |
Model Number: | YT-0801 | Place of Origin: | Guangdong, China |
Product Description
7inch/8inch/10.4inch/12.1inch/15inch/17inch/19inch/22inch Touchscreen monitor
Feature:
1.8" 4:3 Resistive touch screen monitor
2.Connetor VGA+USB/VGA+RS232(Serial Port)
3. Power DC12V/AC110-240V
4. Desktop/Mounted /Open Frame Optional
5.Support Window7/8/XP, VISTA,LINUX Etc,
6.Resistive ,Capacitive Touch Screen Avaiable.
7.Popular Power Supply DC12V ,
8.Multi Languages OSD Menu.
Specification:
Model number | YT-0801 |
LCD screen | |
Panel size | 8inch TFT-LCD, 4:3 |
Resolution | 800x600, 1024*768option |
Display Colors | 16.2M |
Brightness | 350cd/m2 |
Backlight | CCFL backlight |
Response time | 12ms |
View angle | Horizontal:170°;Vertical:160° |
Contrase ratio | 400:1 |
Duration | 50000hours |
Touchscreen | |
Touchscreen | 4-wire resistive touchscreen(5-wire resistive touch, Capacitive,SAW option) |
touch validity | >1,000,000 |
Touch interface | USB or RS232 optional |
Touch response time | 2ms |
Interface | |
Connector | VGA for video signal |
USB (or RS232) for touch | |
Other | |
Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
2) provide stable mental base to support the monitor | |
OSD control | AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
Power supply | External Power Supply:100 to 240V (DC 12V) |
Power consumption | Max 30W |
Operation system | Windows,Linux,Mac. |
Operation Environment | Workable Temperature:-10 to 60°C |
Storage temperature:-20 to 70°C | |
Operate relative humidity:20% to 80%; | |
storage relative humidity:10% to 90% | |
Certificate | CE, ROHS |
Warranty | 1 year,provide spare parts |
Assessories | power cable,USB cable, VGA cable,Adapter, Drive and warranty card |
Packing | |
Net weight | 1.6 Kgs/pcs,include stable mental base |
Gross weight | 2.5 Kgs/pcs,include stable mental base |
Monitor size | 205*163*31mm(not include base) |
Each unit box size | 310*85*225mm |
Package size | 4pcs in a carton,carton size: 650*450*410mm |
Applications:
Entertainment /Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Television station
Education
Exhibition
Advertisement
Hotel/Hospitality
Industry equipment
Banking
Customised Solutions
OEM/ODM:
Packing: neutral packing, no printing inside and outside the box
Logo: Can print the customers’ Logo
Our factory is an integrated enterprise with the ability to production,sales and system solutions for the implementation
of integrated technology enterprises.
Welcome to your try order to test the quality and our service!
Shipping and Package:
Gift&neutral box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,
Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Detaik ?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
