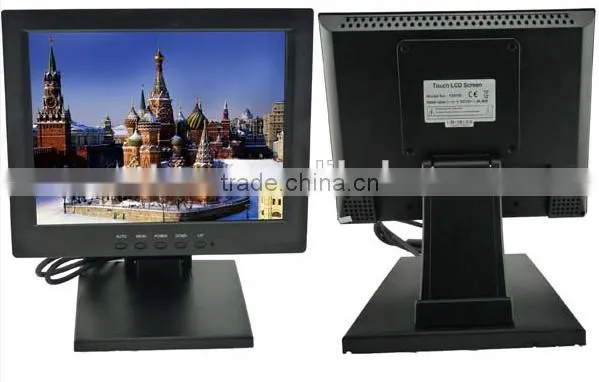

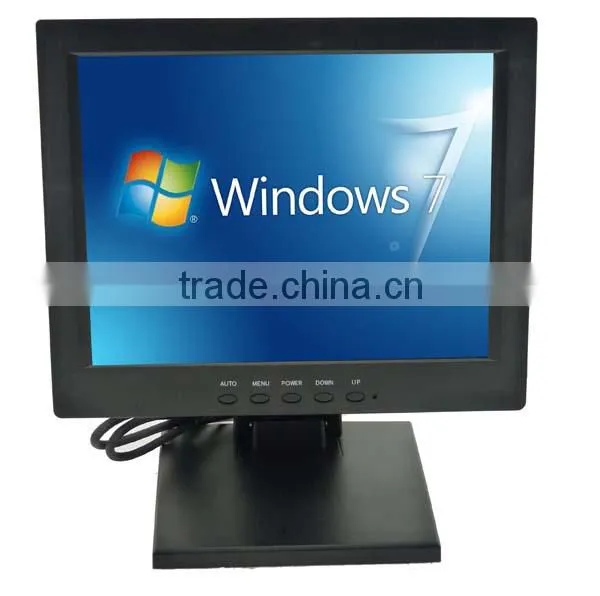

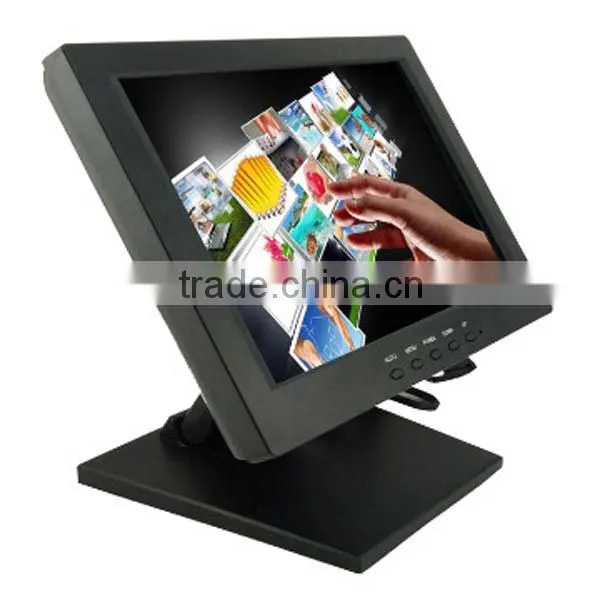

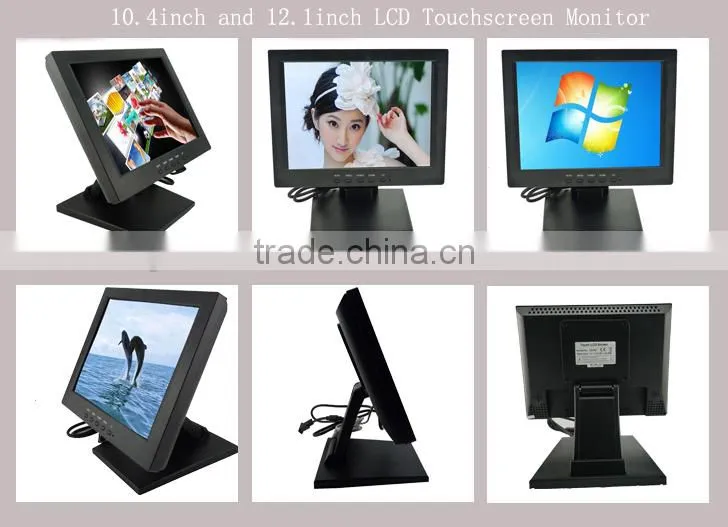

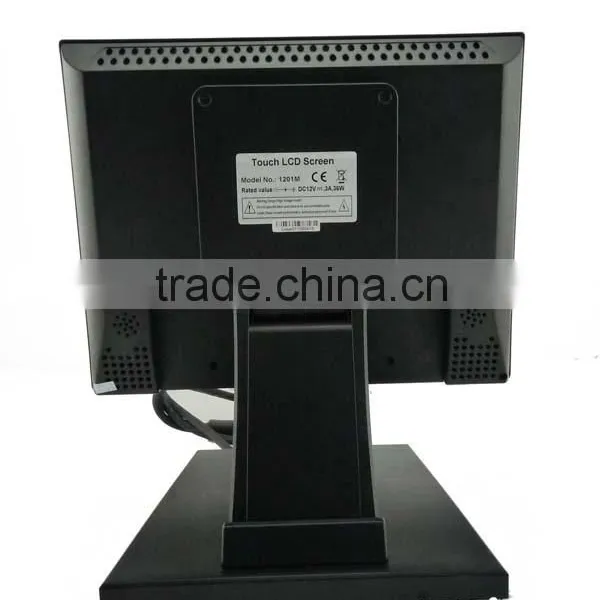

Help CenterVGA+USB 12.1inch Resistive Touch Screen Monitor
Related Products
-
12.1inch Medical LCD Touchscreen DisplayNegotiableMOQ: 1 Unit -
DC12V 12.1inch Lcd Monitor With Resistive TouchscreenNegotiableMOQ: 1 Unit
-
Square Screen 12.1inch Touch Screen Lcd MonitorNegotiableMOQ: 1 Unit
-
12.1inch Small Touch Screen Monitor for POS MachineNegotiableMOQ: 1 Unit
-
Multi Language 8inch LCD Touchscreen Monitor With VGA and USB InterfaceUS$ 70 - 88MOQ: 1 Unit
7inch/8inch/10.4inch/12.1inch/15inch/17inch/19inch/22inch Touchscreen monitor
Feature:
1.Standard VGA USB / Serial port , Can Add AV / TV / HDMI / DVI Input According To YourRequire
2 .With VESA 75mm&100mm, can support wall mount
3.1024 *768resolution / 60Hz
4. Metal Case / Placstic Case / Open Frame For Choice
5.OEM/ODM Offered
7 .Use For Desktop Computer / Pos / Car / ATM / Kiosk / Transportation/
Industrial Automation / Medical Treatment
Specification:
Model number |
YT-1201 |
LCD screen | |
Panel size |
12.1 inch TFT-LCD, 4:3 |
Standard Resolution |
800*600, 1024X768option |
Display Colors |
16.2M |
Brightness |
300cd/m2 |
Backlight |
CCFL backlight |
Response time |
12ms |
View angle |
Horizontal:160°;Vertical:150° |
Contrase ratio |
400:1 |
Frequency |
60~75Hz |
Touchscreen | |
Touchscreen |
4-wire resistive touchscreen(5-wire resistive touch, Capacitive,SAWoptional) |
Duration |
50000hours |
touch validity |
>1,000,000 |
Touch interface |
USB or RS232 optional |
Touch response time |
2ms |
Interface | |
Connector |
VGA for video signal |
USB (or RS232) for touch | |
Other | |
Setup (optional) |
1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
2) provide stable mental base to support the monitor | |
OSD control |
AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
Power supply |
External Power Supply:100 to 240V (DC 12V/2.6A) |
Power consumption |
Max 30W |
Operation system |
Windows,Linux,Mac. |
Operation Environment |
Workable Temperature:-10 to 60°C |
Storage temperature:-20 to 70°C | |
Operate relative humidity:20% to 80%; | |
storage relative humidity:10% to 90% | |
Certificate |
CE, ROHS |
Warranty |
1 year,provide spare parts |
Assessories |
power cable,USB cable, VGA cable,Adapter, Drive and warranty card |
Packing | |
Net weight |
6.0 Kgs/pcs,include stable mental base |
Gross weight |
3Kgs/pcs,include stable mental base |
Monitor size |
299*242*43mm(not include base) |
Each unit box size |
350*310*144mm |
OEM/ODM:
Color: black, white can be customized
Packing: neutral packing, no printing inside and outside the box
Logo: Can print the customers’ Logo
Our factory is an integrated enterprise with the ability to production,sales and system solutions for
the implementation of integrated technology enterprises.
Entertainment /Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Television station
Education
Exhibition
Advertisement
Hotel/Hospitality
Industry equipment
Banking
Customised Solutions
Gift&neutral box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Shen Zhen Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Detaik ?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
