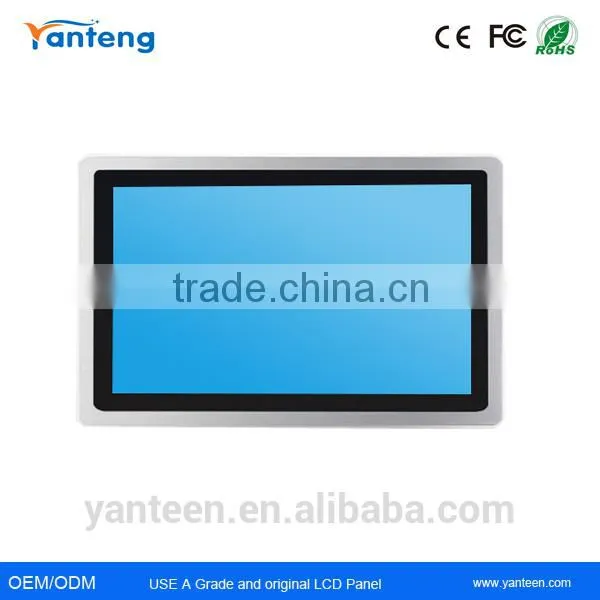

3mm ultra -thin IP65 front panel 21.5inch industrial panel pc with 5-wire resistive touchscreen
Feature:
.Whole aluminum alloy casing, waterproof IP65 front panel
. True flat seamless,3mm ultra -thin front panel
.Slim and thin design,Support 7x24hours working
.5-wire touchscreen and capacitive touchscreen option
.High quality industrial LCD panel
-High brightness 1000nit/1500nit LED backlights option, direct sunlight readable.
.Work temperatures -10°—60°
.Intel Celeron1037U,2GB RAM, 32GB SDD
.Embedded/card buckle/VESA holes installation
.Multi-language,Support Windows/Linux OS
Available Sizes: 12" 15" 17" 19" 21.5"
Specification:
| Model number | YIPC-2105A | |
| LCD panel | Panel size | 21.5inch |
| Resolution | 1920×1080/60HZ | |
| Aspect ratio | 16:9 | |
| Panel | LED backlight | |
| Brightness | 400cd/m2(1000/1500cd/m2 option) | |
| Contrast ratio | 5000:1 | |
| Display color | 16.7M | |
| View angle | H178; V178 | |
| Response time | 5ms( 178 Full view angle option) | |
| Life | 50000h | |
| Windows system | CPU | Intel Celeron1037U,Dual core,1.8GHz |
| RAM | 2G DDR3, 4G option | |
| Hard disk | 32GB, 64GB/128GB/500GB option | |
| graphics card | Integrated GMA3650 Intel display chip | |
| Network card | Built in gigabit network card | |
| System | Windows XP/ Win7/Win8 option | |
|
Touchscreen Option |
Touchscreen | 5-wire resistive touchscreen (Capacitive touchscreen option) |
| Touch number | >3500 million | |
| Touch way | Pressure sensing | |
| touchscreen interface | USB intergace(RS232 interface option) | |
| Other | Power supply | AC 100-240V, 50-60Hz, DC12V |
| Power Consumption | <40W | |
| Work temperature | -10℃-60℃ | |
| Storage temperature | -20℃-60℃ | |
| Dimension | 557x345x56.6mm | |
| Casing | Whole aluminum alloy casing | |
| Color | Black/Silvery option | |
| Interface | 1xVGA,1xHDMI, 4xUSB, 2x COM,1xLPT, 1xLAN,1xAudio output/input, 1x WIFI antenna | |
| Installation | Embedded/VESA holoes/Wall-mounted/desktop | |
| Accessories | Manual, Adapter, power cord,bracket, Emmbed Buckles | |
Applications:
1.Embedded into all kinds of equipment as display device
2.Telecom, network engine room host monitor
3.Military standard monitor,Reinforcement level display
4.Industrial machinery, numerical control equipment, engineering machinery,
5.Train, subway, hospitals, government agencies, port monitoring and display
6.4S auto shop, product display, automatic vending machine, courier easy box
7.Self registration, bank line access number, terminal self - help machine,
8. Medical equipment,Terminal inquiry machine, automation equipment

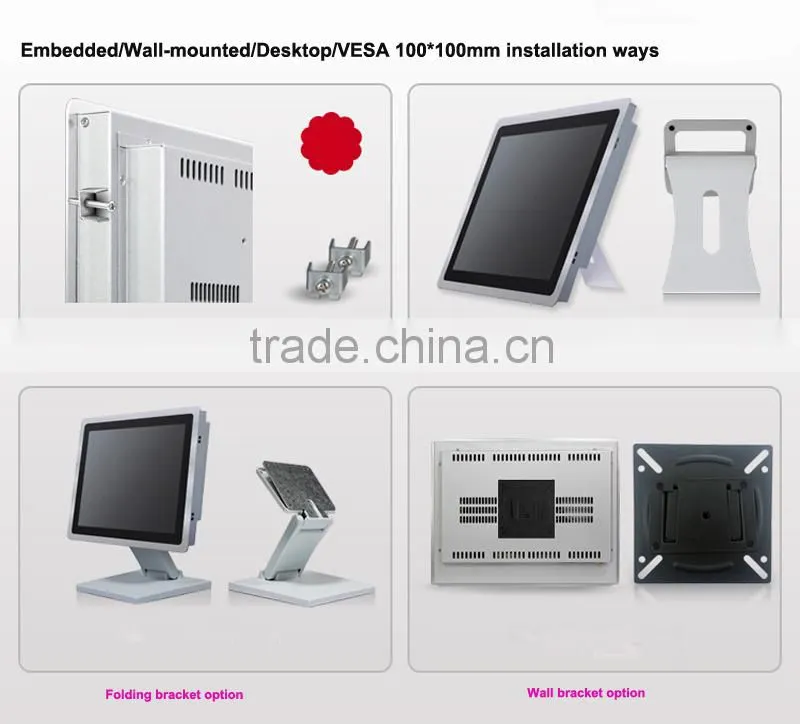

Installation way:
Package:
Shipping and Package:
Gift&neutral box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Industrial Touch screen monitor, Industrial touchscreen panel pc,
Open frame monitor,Digital signage, LCD video wall, LCD kiosk.
We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Yan Teng?
A: 1. Professional Industrial Touchscreen Panel PC manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T . WestUion and Paypal.
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
