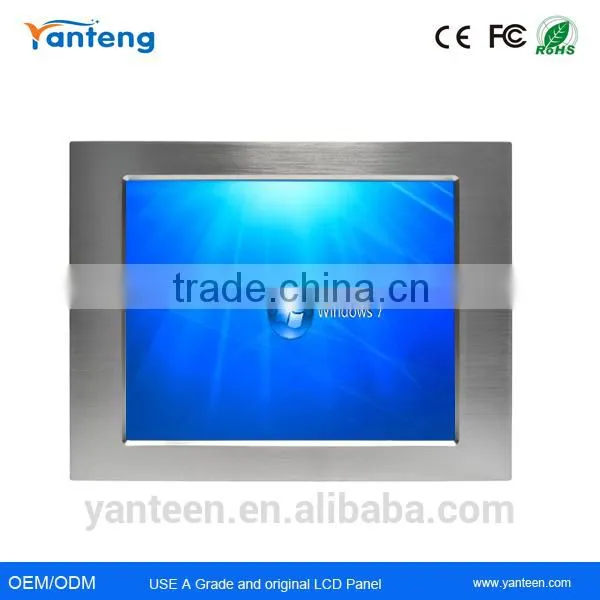

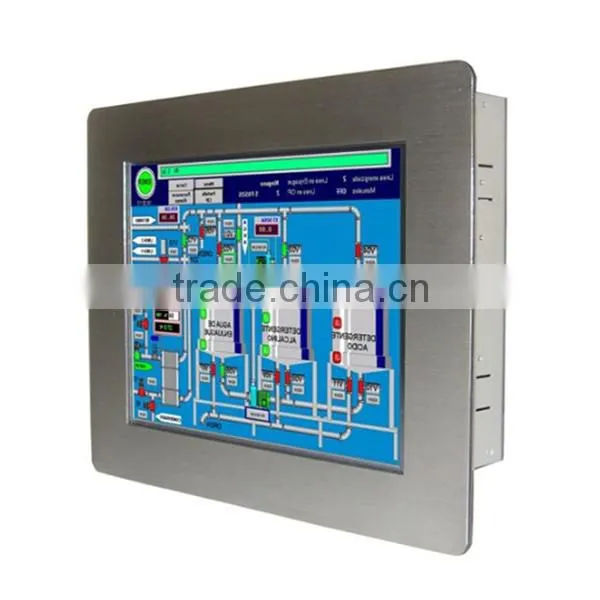

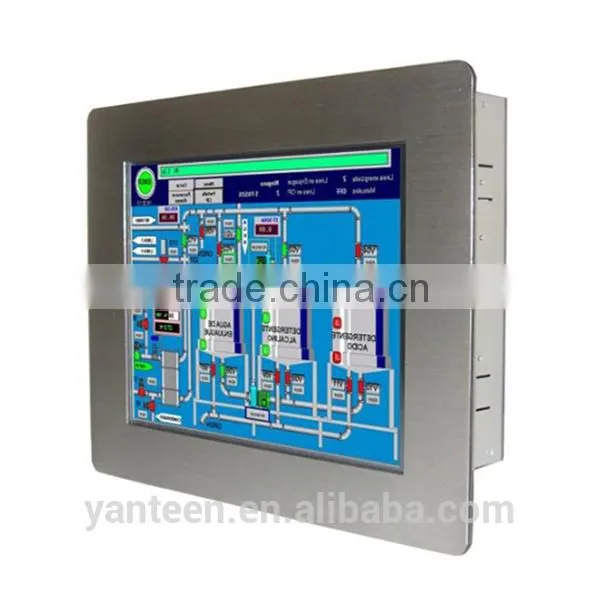

Panel Mount 15inch industrial touch screen panel pc with wide operational temperature range
Feature:
.15"XGA resolution industrial TFT LCD screen.
.Integrated with low power Intel Atom N270 1.6GHz CPU, 533MHz FSB.
.Fanless design.
.2GB DDR2 RAM.
.32GB SSD.
.NEMA4 (IP65) front plate, rugged and low profile design.
.Black powder coated front bezel.
.5 wire industrial resistive touchscreen.
.Wide operational temperature range, -10°C to +50°C.
.RoHS compliant.
Specification:
| Item No. | YTPC-1501 | |
| LCD Screen | Size | 15" |
| Aspect Ratio | 4:3 | |
| Pixel Pitch | 0.297*0.297 mm | |
| Resolution | 1024*768 (SVGA) | |
| View Angle | 160° (H)/140° (V) | |
| Brightness | 400 nits | |
| Contrast Ratio | 700:1 | |
| Colors | 16.2M | |
| Touch Screen | Technology | 5-wire resistive |
| Active Area | 304*228 mm | |
| View Area | 309*233mm | |
| Screen Thickness | 2.3mm | |
| Resolution | 4096*4096 | |
| Response Time | Below 10ms | |
| Light Transmission | >80% | |
| Touch Media | Finger, stylus, rubber | |
| Durability | More than 10,000,000 single touch | |
| MTBF | >60,000 hours | |
| PC System | CPU (Intel Atom N270) | 1.6GHz Core Frequency |
| 533MHz FSB | ||
| 512KBs L2 cache | ||
| 2.5W low TDP | ||
| Chipset | Intel® 945GSE Express Chipset | |
| MCH: 945GSE + ICH7 mBGA | ||
| FWH | ||
| Memory | 1GB DDR2, max supported 2GB | |
| I/O (FINTEK71862FG Chipset) | 8 *USB 2.0, 2 *COM, 1* LPT, 2*(RS232) | |
| Sound Card | ALC662 chip, 6-channel sound card, front Audio pin | |
| Hardware Detect | ITE8712, CPU detect Fan, system fan, voltage, temperature, etc. | |
| Net Card | 10~100~1000M adaptive network card | |
| Power requirement | +12V | |
| Rear Panel I/O | VGA CRT | |
| 1*RJ-45 | ||
| 4 *USB ports | ||
| 1*DC (in) | ||
| 1*AV | ||
| AUDIO-OUT | ||
| AUDIO-MIC | ||
| TV System | System Supported | PAL/SECAM/NTSC |
| Stereo | SRS Tru-Surround XT | |
| Power: 10W*2 | ||
| Quality Approval | Fire-resistance | UL-94HB |
| Water-resistance | NEMA4 / IP65 | |
| Chemical-resistance | Active area of Touch is resistant for acetone, toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal oil, and Vinegar. | |
| Certificate | RoHS, FCC (Part 15) | |
| CE (EN55022 and EN55024) | ||
| Environments | Temperature | Operation: -10°C ~ 60°C |
| Storage: -20°C ~ 70°C | ||
| Humidity | Operation:10%~90% RH | |
| Storage: 5%~95% RH | ||
| Power Supply | Power Input | 24V DC |
| Power Consumption | Approx. 60Watts | |
| Weight | Gross Weight | 6kgs |
| Net Weight | 5kgs | |
| Dimension | PC Dimensions (W*H*D) | |
| Mounting Cutout Dimensions | ||
| Mount | Embedded Mount, Panel Mount | |
| Accessories | AC Adapter, Power Cord, Touch Driver | |
Applications:
1.Embedded into all kinds of equipment as display device
2.Telecom, network engine room host monitor
3.Military standard monitor,Reinforcement level display
4.Industrial machinery, numerical control equipment, engineering machinery,
5.Train, subway, hospitals, government agencies, port monitoring and display
6.4S auto shop, product display, automatic vending machine, courier easy box
7.Self registration, bank line access number, terminal self - help machine,
8. Medical equipment,Terminal inquiry machine, automation equipment
Shipping and Package:
Gift&neutral box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,
Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Detaik ?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
