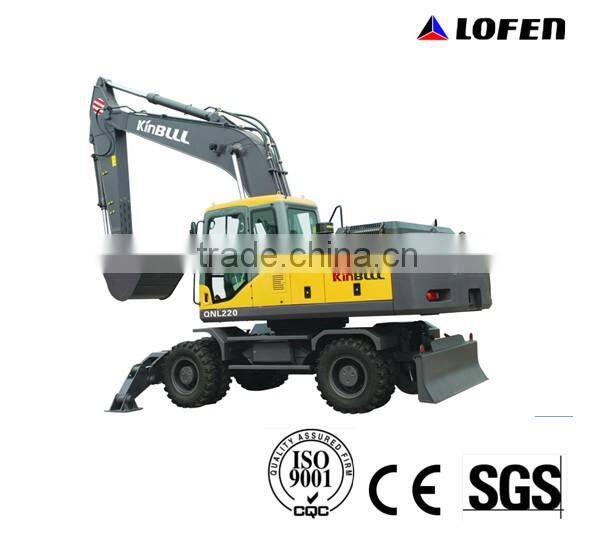

Wheel Excavator Mini Bucket Wheel Excavator

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

Model Number:

QNL220

Shanghai Long Fen Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name QN

Model Number QNL220

Condition New

Moving Type Wheel Excavator

Operating Weight 21750kg

Bucket capacity 1.0m3

Maximum Digging Height 9728mm

Maximum Digging Depth 6405mm

Machine Weight 21750kg

Max Digging Radius 9910mm

Specifications

Chinese Excavator, Hydraulic Excavator, Crawler Excavator, Excavator Manufacturers
Original Cummins Engines
Rexroth, Kawasak

parameters
weight		21750kg
(SAE)bucket capacity		1m³
engine	model	CUMMINS 6BTAA5.9-C
	type	4 cylinder inter-cool water cool
	output	85.4kw/2200rpm
	max torque	477Nm/1500rpm
	displacement	3.9L
travelling and swinging	max travelling speed	30km/h
	crawling capability	>35%
	swing speed	13r/min
hydraoulic system	main pump	Variable displacement bent axis piston double pump
	main pump rated flowing	2x132L/min
	revolution of main pump	2200rpm
	travelling motor	Variable displacement bent-axis axial piston motor
	swinging motor	Fixed displacement axial piston motor
	pressure of travelling and working	330bar
	pressure of swinging system	270bar
	pressure of joy stick system	40bar
volume of tank	volume of fuel tank	270L
	volume of hydraulic tank	125L

equipment and parameters
length of arm		4600mm
length of boom		2100mm
A max. digging height		9728mm
B max. digging depth		6405mm
C max digging radious		9910mm
D max.digging radious on the ground		9685mm
E max. digging depth vertical		3840mm
F max. dump height		6055mm
(SAE) bucket digging power		82.7kN
(SAE) boom digging power		74.2kN

overall parameters
A overall length		9455mm
B overall width		2530mm
C overall height		3420mm
D width of bulldozer		2490mm
E base of axle		2600mm
F base of wheel		1944mm
G distance of counterweight		1260mm
H min. distance to ground		378mm
I length of tail		2290mm
I′ tail swing radious		2388mm
J height of arm back		2915mm
