Help CenterLG853D 5000kg Longking Tractor With Whee Loader for Sale With CE Approved
Related Products
-
ZL50C China Lonking Wheel Loader Front End Loader With Snow BladeNegotiableMOQ: 1 Unit -
LONKING LG850G Wheel Loader With Weichai 220kw Engine China Famous PayloaderNegotiableMOQ: 1 Unit
-
LG850 Hot Sale 5 Ton Wheel Loader With CE China Front LoaderNegotiableMOQ: 1 Unit
-
LG6220 Lonking Medium Size Excavator With 1.1 Cubic Meters BucketNegotiableMOQ: 1 Unit
-
LG6220 Lonking 22ton Hydraulic Excavator With Excavator Cab and 1.1m3 Excavator Bucket VulumeNegotiableMOQ: 1 Unit
Construction Machinery LG853N features:
Powerful WEICHAI Engine
Hydraulic Transmission & Torque Converter
Pilot Control as Optional
Standard Air Condition
Variety with Attachment
Convenient Maintenance
Standard equipped with high-powered WD10G240E21 engine.
Effective homemade torque converter, Transmission and drive axle that perfect matched with the engine.
Short wheelbase lay out design, light and flexible.
CDM853 can select machinery flexible control or pilot control.
CDM853 Standard equipped with detachable cab,Comfortable and safe cab that conforms to ergonomics design.
Rational layout of the electrical system circuit ensures high safety and longer service life.
Following is the detailed technical parameters
Overall Data |
Steering System |
||||||||||
Bucket Capacity (m3) |
2.7/3.0 |
Type |
Hydraulic Load Sensing System |
||||||||
Rated Payload(kg) |
5000 |
Cylinders-bore×Stroke(mm) |
2-90×340 |
||||||||
Operating Weight(kg) |
15950±300 |
Steering Pump |
Gear Pump |
||||||||
Traction Force(kN) |
150±3 |
System Pressure(MPa) |
15 |
||||||||
Breakout Force(kN) |
155±3 |
Flow Rate(L/min/rpm) |
176/2200 |
||||||||
L×W×H(mm) |
7670×3000×3480 |
Steering Angle |
±35° |
||||||||
Travel Speeds (km/h): |
Hydraulic System |
||||||||||
|
Ⅰ |
Ⅱ |
|
|
Lift Cylinders-bore×Stroke(mm) |
2-160×836 |
|||||
Forward |
11.5 |
36.0 |
|
|
Tilt Cylinder-bore×Stroke(mm) |
1-180×559 |
|||||
Reverse |
16.0 |
|
|
|
Model of Implement Pump |
Gear Pump |
|||||
Engine |
WEICHAI WD10G220E21 |
Flow Rate(L/min/rpm) |
220/2200 |
||||||||
Rated Power(kW·hp/rpm) |
162·(220)/2200 |
System Pressure(MPa) |
16 |
||||||||
Peak Torque(Nm/rpm) |
850/1400-1400 |
Pilot Control System Pressure(MPa) |
2.5 |
||||||||
Starting Voltage(V) |
24 |
Hydraulic cycle time, Rated load in bucket(In second): |
|||||||||
Drive Train |
Raise(Loaded) |
Dump |
Lower(Empty) |
Total |
|||||||
Torque Converter |
Single-stage, Duo-turbine, 4-element |
6.0 |
1.2 |
4.3 |
11.5 |
||||||
Torque Ratio |
4.0 |
Electrical System |
|||||||||
Transmission |
Planetary Powershift Transmission |
System Voltage(V) |
24 |
||||||||
Gear |
2F/1R |
Battery (2 in series)(Ah) |
120 |
||||||||
Pressure of Transmission(MPa) |
1.2~1.5 |
Lamp Voltage(V) |
24 |
||||||||
Main Reducer |
Spiral Bevel, 1-stage Reduction |
Service Refill Capacity |
|||||||||
Final Reducer |
Planetary Reduction |
Fuel Tank(L) |
360 |
||||||||
Tire |
23.5-25 L-3 16PR TT |
Hydraulic Tank(L) |
360 |
||||||||
Brake System |
Crankshaft(L) |
20 |
|||||||||
Service Brake |
Single Circuit Caliper,Dry Brake |
Transmission(L) |
45 |
||||||||
Setting Pressure (MPa) |
0.78 |
Front Axle(L) /Rear Axle(L) |
25/25 |
||||||||
Parking Brake |
Flexible Shaft Controlled Caliper |
Air Conditioning System |
|||||||||
Emergency Brake |
Flexible Shaft Controlled Caliper |
Heating Capacity(W) |
5800 (±10%) |
||||||||
|
Cooling Capacity(W) |
4500 (±10 |
|||||||||
The pictures
We also have more models for your opition

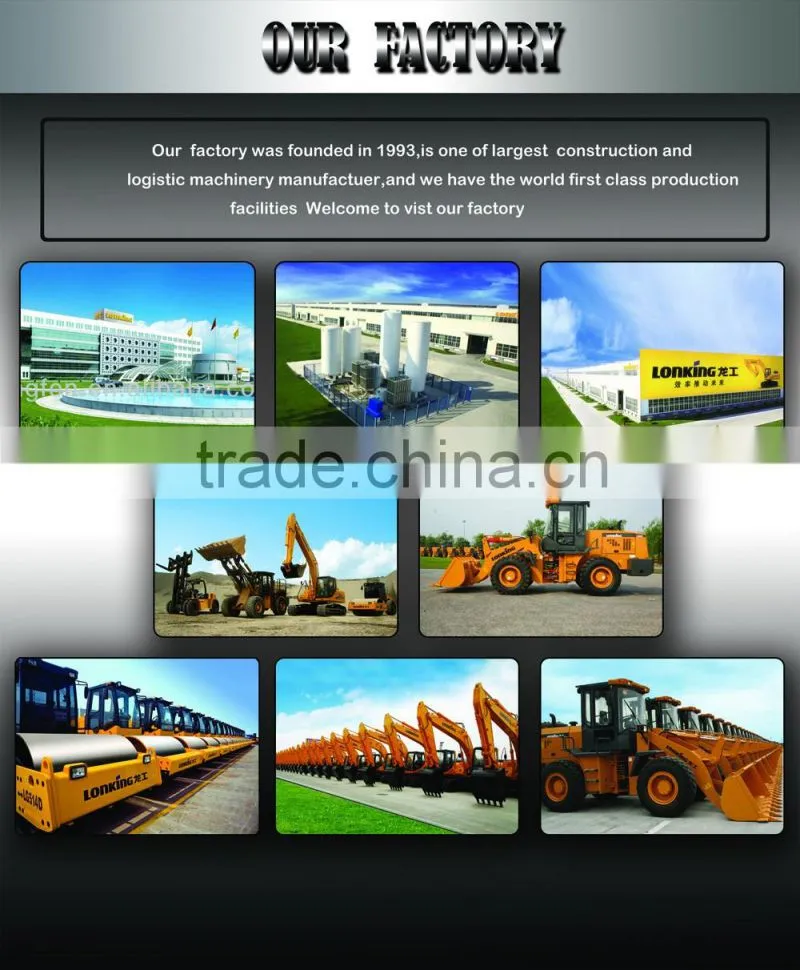

Our company
Shanghai lonking is a professional manufacturer for wheel loader forklift ,excavator ,road roller all of our product was approved with CE AND ISO9001 ,With many years imported experience we can assure the products quality
our products are being used across the world
