Specifications

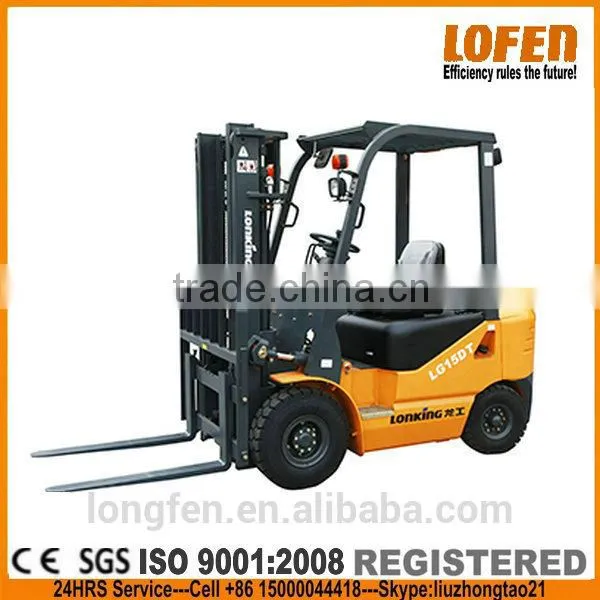

1.5 ton diesel lift truck LG15dtAdvanced Ergonomical Design
Equipped with AC Motor
Wide View Mast
| MODEL | LG15DT |
|---|---|
| Power type | Diesel |
| Rated capacity (Kg) | 1500 |
| J Load centre (mm) | 500 |
| h1 STD Max lifting height (mm) | 3000 |
| h3 Free lifting height (mm) | 100 |
| L5*W*T STD Fork size (mm) | 920×100×40 |
| Mast tilt angle (deg) | 6/12 |
| L3 Front overhang (mm) | 425 |
| L4 Rear overhang (mm) | 425 |
| Overall dimension | |
| L1 Overall length(mm) | 3170 |
| W1Overall width (mm) | 1090 |
| h2 Mast lowered height (mm) | 1995 |
| h4 Overhead guard height (mm) | 2049 |
| R1 Min.turning radius (mm) | 1950 |
| Min .intersecting aisle (mm) | 3580 |
| Speed(load/unload) | |
| Max.traveling speed (km/h)(F/R) | 22/22 |
| Max,lifting speed (mm/s)(load/unload) | 480/500 |
| Max.gradient (%) | 20 |
| Dead weight (kg) | 2550 |
| S/P Tread(frnt/rear)(mm) | 890/870 |
| L2 Axle distance (mm) | 1400 |
| Min.ground clearance | |
| m2 Mast (mm) | 110 |
| m1 Frame (mm) | 100 |
| STD Engine | Xinchai NC485 |
| Rated power(kw) | 31 |

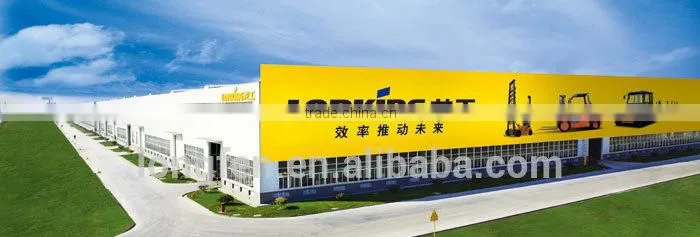

Founded in 1993, Lonking Holdings Limited ("Lonking") is one of the largest construction &logistic machinery manufacturers in China. It has 19 wholly owned subsidiaries and four production bases respectively located in Fujian, Shanghai, Jiangxi and He'nan, covering over 3 million square meters.
Lonking manufactures wheel loaders, hydraulic excavators, road rollers, forklifts, motor graders and skid steer loaders. The company also develops and produces core components, including gearboxes, torque converters, axle, hydraulic components, gear pipes and driver shaft among others.
In 2011, 46,000 units of Lonking wheel loaders were sold, covering Chinese wheel loader market share of over 20%, ranking top in the industry; 16,000units of Lonking forklift were sold, ranks top 5 among Chinese forklift brands.
Lonking aims to continue developing energy efficient and environmental-friendly products and gives it share in the property of global economy and progress of humanity.

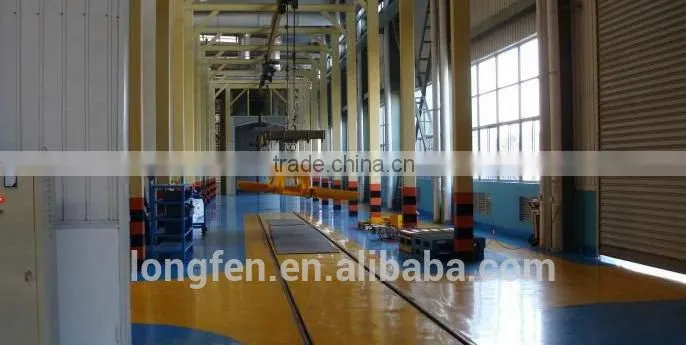

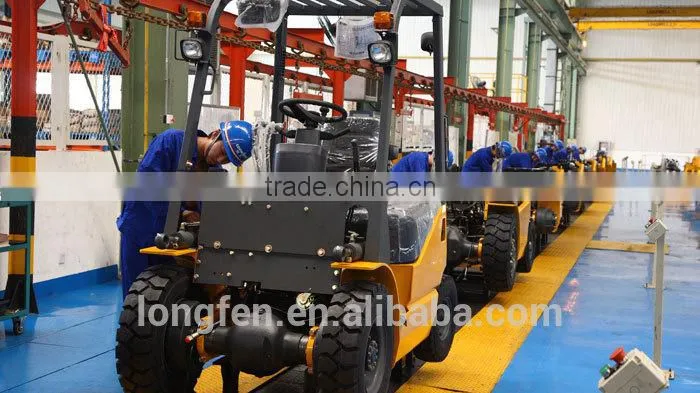

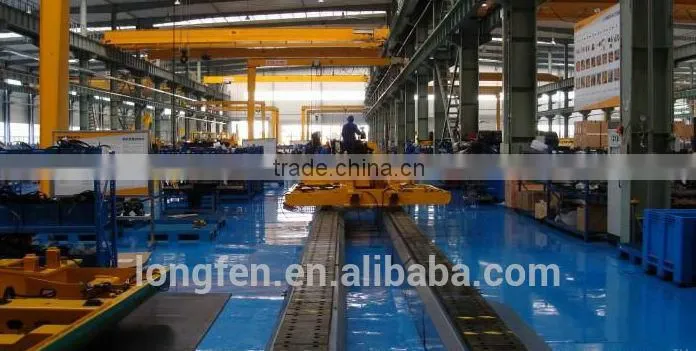

Morden and Clean Automatic Producing Line

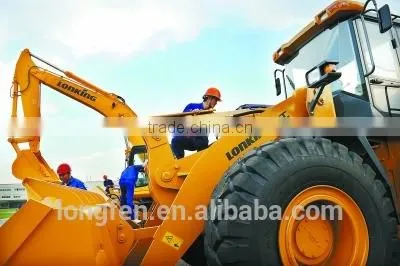

Every sold lonking machinery will be comppletely inspected
before we delivery your machinery to the port!
12 months warranty or 2600 working hours!
Lonking always believes, the first machine is sold by the effort of salesman, the second machine is sold by quality and service, Lonking will not do the sales without service, service is the strong support and insurance to our clients.
Wherever or whenever you are, Lonking trained technician and genuine parts are at your service, without delay, without excuses, with both Lonking and local dealers' efforts, to keep your equipment efficient, it's Lonking's pledge, efficiency rules the future!
