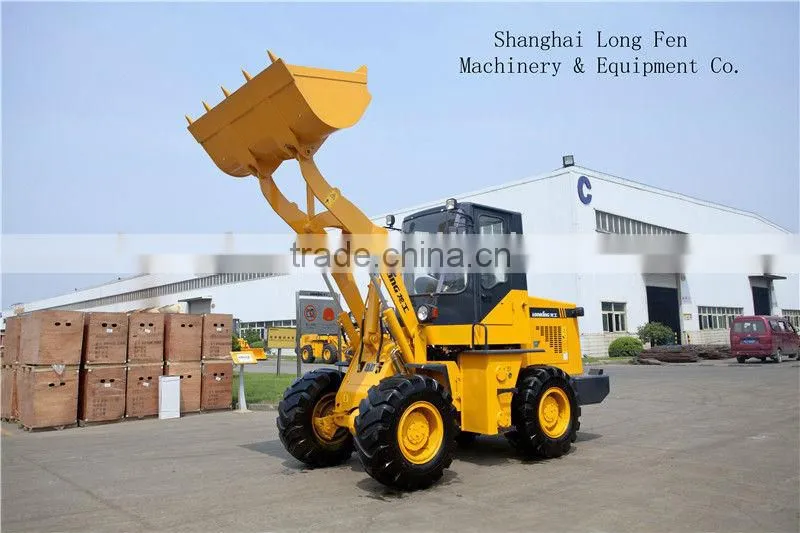

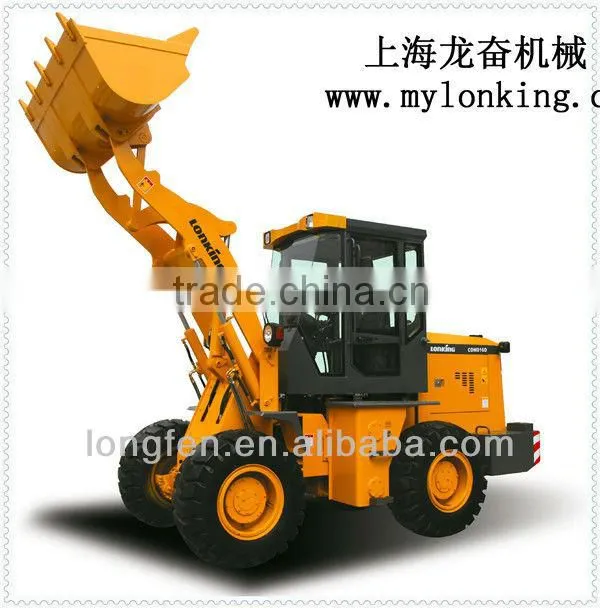

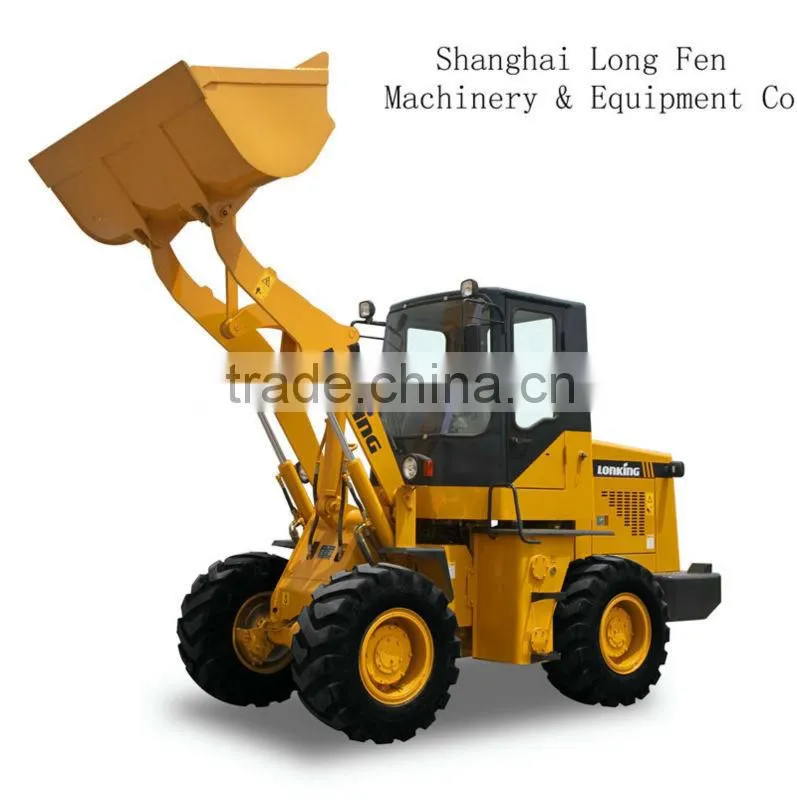

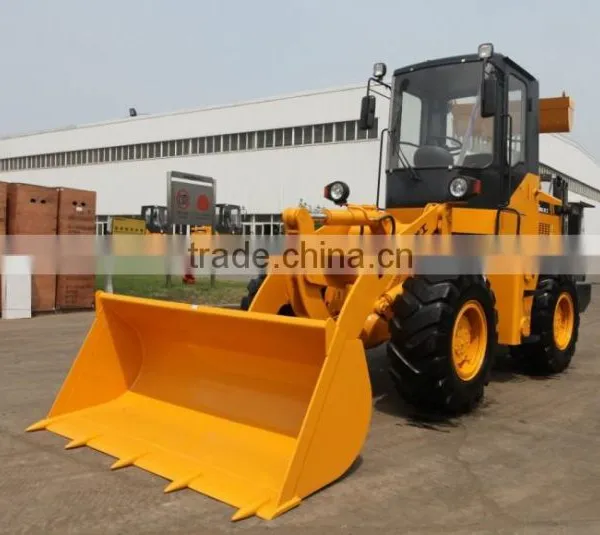

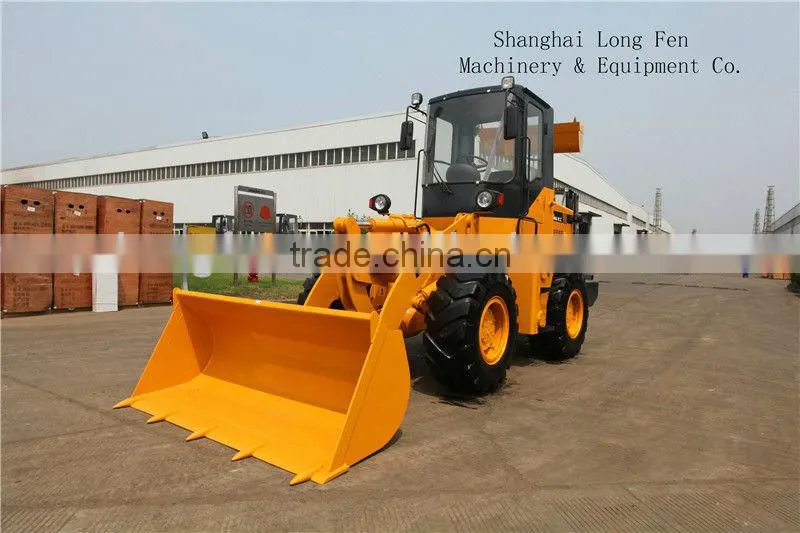

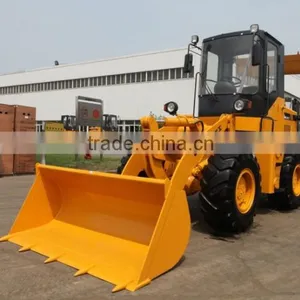

1.6 Ton Mini Loader Made in China (Lonking LG816D)

Name: 1.6 Ton Mini Loader Made in China (Lonking LG816D)
Brand: LONKING
SKU: 126321815
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

LONKING

Model Number:

LG816D

Shanghai Long Fen Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name LONKING

Model Number LG816D

Place of Origin Shanghai, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5800x1800x2930mm

Rated Load 1600kg

Certification ISO

Warranty 12months or 2000working hours from the date of B/L, which comes first.

After-sales Service Provided Overseas third-party support available

Specifications

powerful Changchai engine
hydraulic transmission & torque converter
reliable powertrain
optimized structure design

								Air Conditioning System (Optional)
Overall Data								Steering System
Bucket Capacity (m³)							0.95	Type			Hydraulic Load Sensor System
Rated Payload (kg)							1600	Cylinders-BorexStroke (mm)				2-63X280
Operating Weight (kg)							5500	Steering Pump				Shared With Working Pump
Traction Force (kN)							50	System Pressure (MPa)				14
Breakout Force (kN) Max. Travel Speeds (km /h):							52	Steering Angle				±35°
	I				II			Hydraulic System
Forward	7.4				20.8			Lift Cylinders-BorexStroke (mm)				2-90X589
Reverse	7.2				20.4			Tilt Cylinder-BorexStroke(mm)				1-100X387
Engine					YTO YT4A2-24			Working Pump				Gear Pump
Rated Power (kW/rpm)						55/2400		Flow Rate (L/min/RPM)				120/2400
Rated Torque (Nm/rpm)						235/1680-1800		System Pressure (MPa)				16
Starting Voltage (V)						24
Drive Train								Hydraulic Cycle Time, Rated Load in Bucket (In Second):
Torque Converter			Single-stage, Single-turbine, 3-element					Raise(Loaded)	Dump	Lower(Empty)			Total
Torque Ratio			3.7					4.9	0.8	3.7			9.4
Transmission			Fixed Shaft Hydraulic Shift Spur Gear					Electrical System
Gear			2F/2R					System Voltage (V)				24
Pressure of Transmission (MPa)							1.2-1.5	Battery(2 in series) (Ah)				180
Main Reducer		Spiral Bevel Gear Single-stage Reduction						Lamp Voltage (V)				24
Final Reducer		Planetary Reduction						Service Refill Capacity
Tire		16/70-20						Fuel Tank (L)				80
Brake System								Hydraulic Tank (L)				80
Service Brake		Air Drive, Four Wheel Brake (Dry)						Transmission (L)				14
Setting Pressure (MPa) Parking & Emergency Brake				0.78 Flexible Shaft Controlled Caliper				Front Axle (L) / Rear Axle (L)				12/12
								Heating Capacity (W)				5800(±10%)
								Cooling Capacity (W)				4500(±10%)
