Help CenterLG6150 China Lonking Excavator for Sale With CE
Related Products
-
LG6485H China Lonking 48 Ton Long Arm Excavator for SaleUS$ 200,000 - 230,000MOQ: 1 Unit -
LG6485H High Efficiency 48 Ton China Excavator for Sale With Excavator Swing BearingUS$ 200,000 - 230,000MOQ: 1 Unit
-
LG6485H Lonking 48 Ton Multifunctional Excavator for SaleUS$ 200,000 - 230,000MOQ: 1 Unit
-
LG6485H China 48 Ton Excavator for Sale With 2.2 Cbm BucketUS$ 200,000 - 230,000MOQ: 1 Unit
-
LG6485H China Lonking Brand 48 t Low Price China Excavator for SaleUS$ 200,000 - 230,000MOQ: 1 Unit
China Lonking 14 ton excavator for sale
Products parameter
| Specifications | CDM6150 | ||
| Engine | Model | Cummins4BTAA3.9-C | CumminsQSB4.5 |
| Rated power | 86 kW (117hp) /2200 rpm | 90 kW /2200 rpm | |
| Max. torque | 424 N.m/1600 rpm | 489 N.m/1500 rpm | |
| Bore× Stroke | 102mm×120mm | 107 mm×124 mm | |
| Displacement | 3.9 L | 4.5 L | |
| Comment | Maintain the rated power at 2300m elevation. | ||
| Operating weight | Summary |
Operating weight:14000kg The operating weight includes the weight of 4600 mm standar boom,2500 mm standard arm,0.56m3 standard bucket, |
|
|
500 mm track shoes,lubricating oil, coolant,the full diesel oil tank and the rest standard configuration units.. | |||
| Ground pressure | 45 kPa | ||
| Fluid capacity | Fuel tank | 270 L | |
| Cooling system | 23 L | ||
| Engine oil | 14 L | ||
| Swing drive unit | 1.8 L | ||
| Traveling gear | 2×2.5 L | ||
| Hydraulic oil tank | 159 L | ||
| Swing mechanism | Summary |
High torque plunger motor and 2-stage planetary reducer drive. Brakeinside loading motor is applied by |
|
|
spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position. | |||
| Swing speed | 11.9 rpm | ||
| Travel drive | Summary |
The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged |
|
|
inside the track frame to prevent the damage caused by t he rugged road surface. The motor inside is provided with | |||
|
the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking. | |||
| Taveling speed | 3.34 -5.5 km/h | ||
| Gradeability | 35°(70%) | ||
| MaximumTraction | 113 kN | ||
| Traveling mechanism | Standard track shoe width | 500 mm | |
| No. of track shoe | 43 (each side) | ||
| No. of carrierrollers | 2 (each side) | ||
| No. of track rollers | 7 (each side) | ||

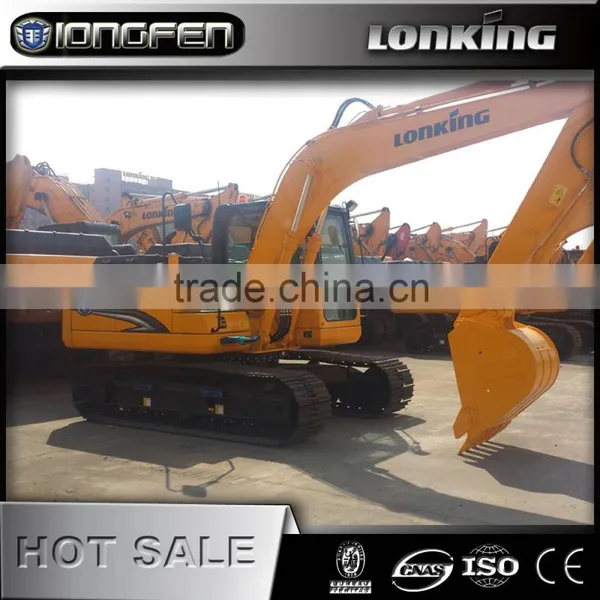

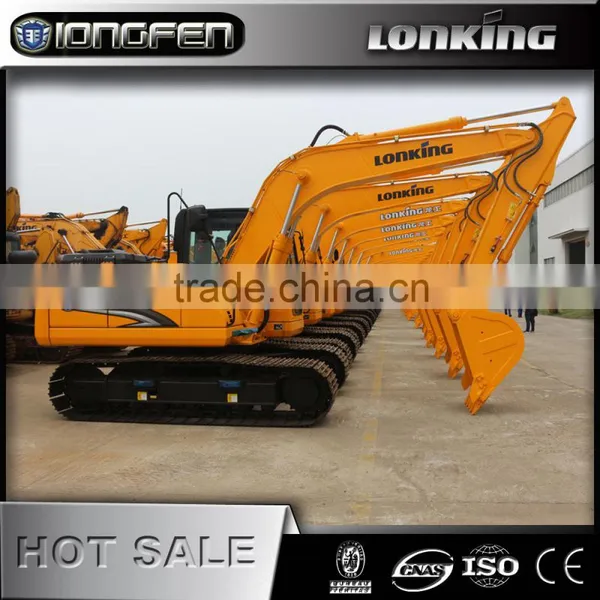

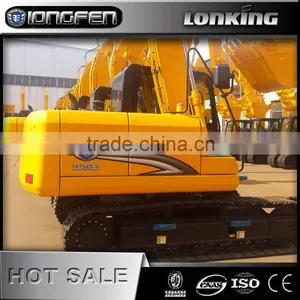

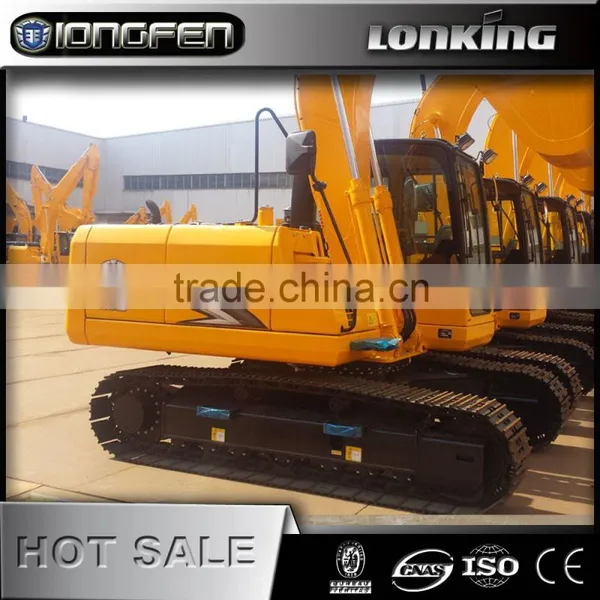

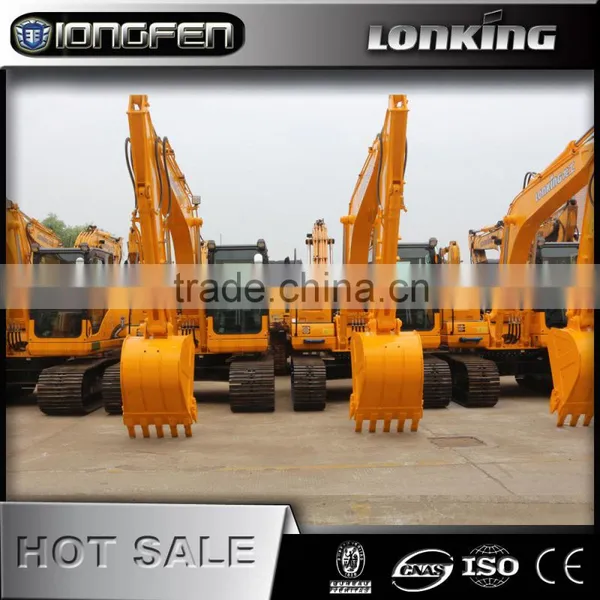

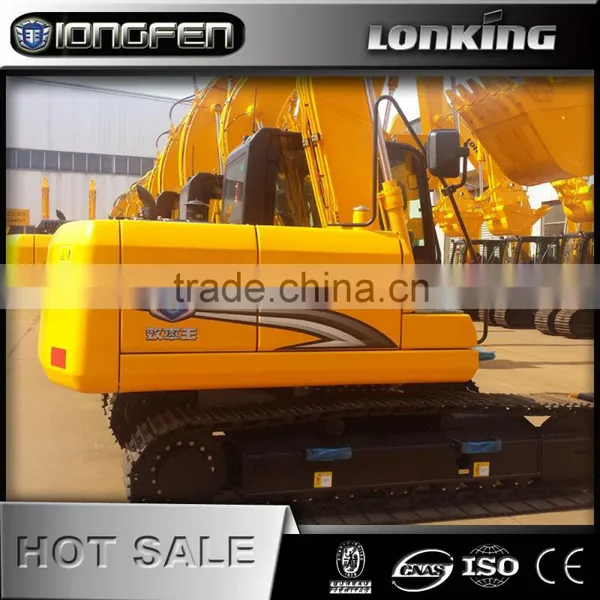

product pics for Lonking 6150E

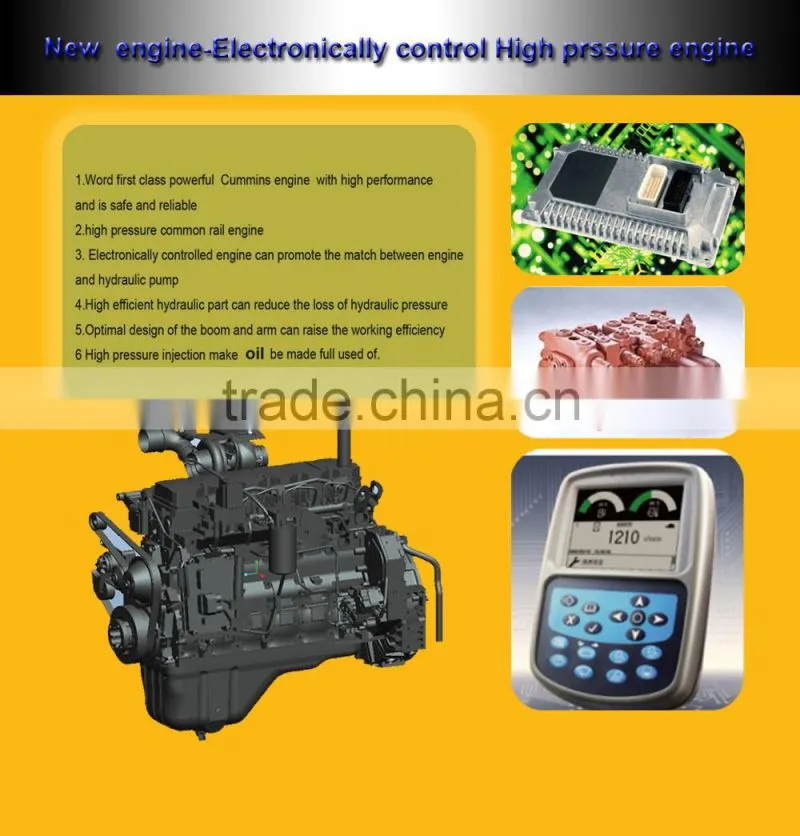

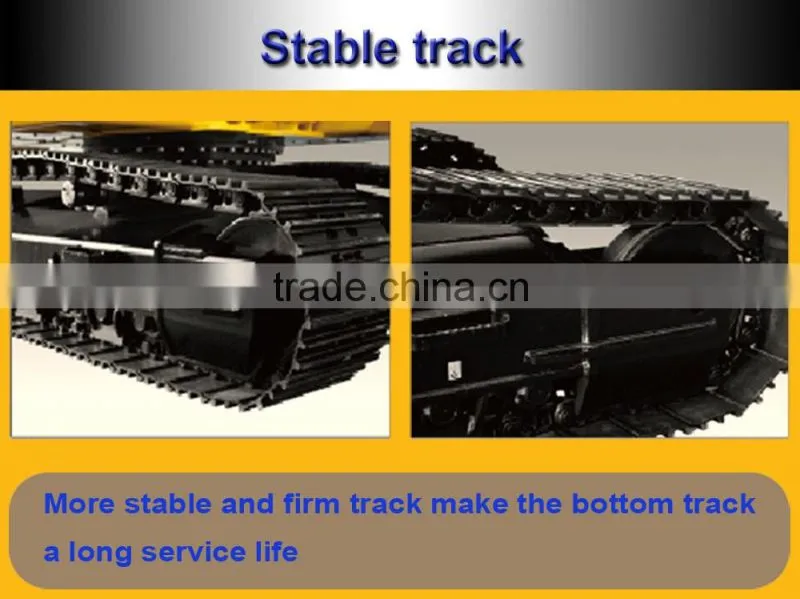

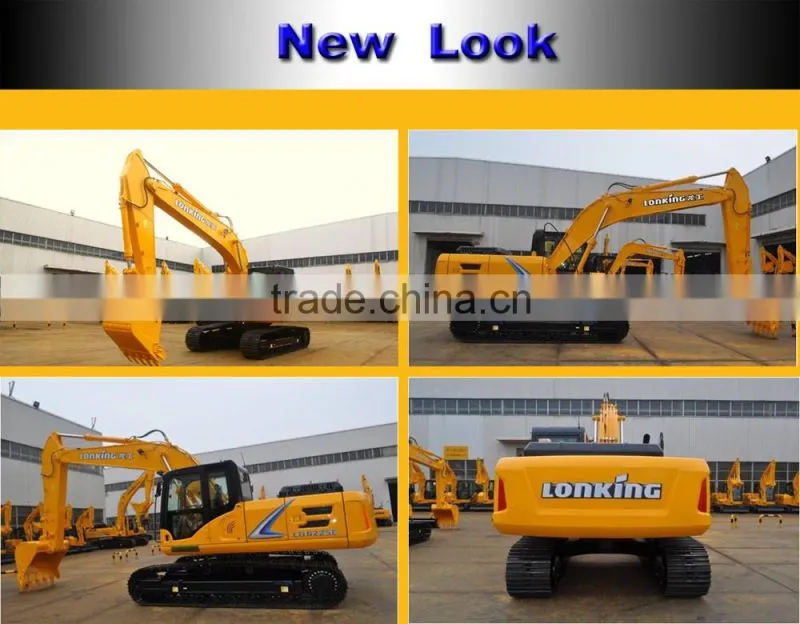

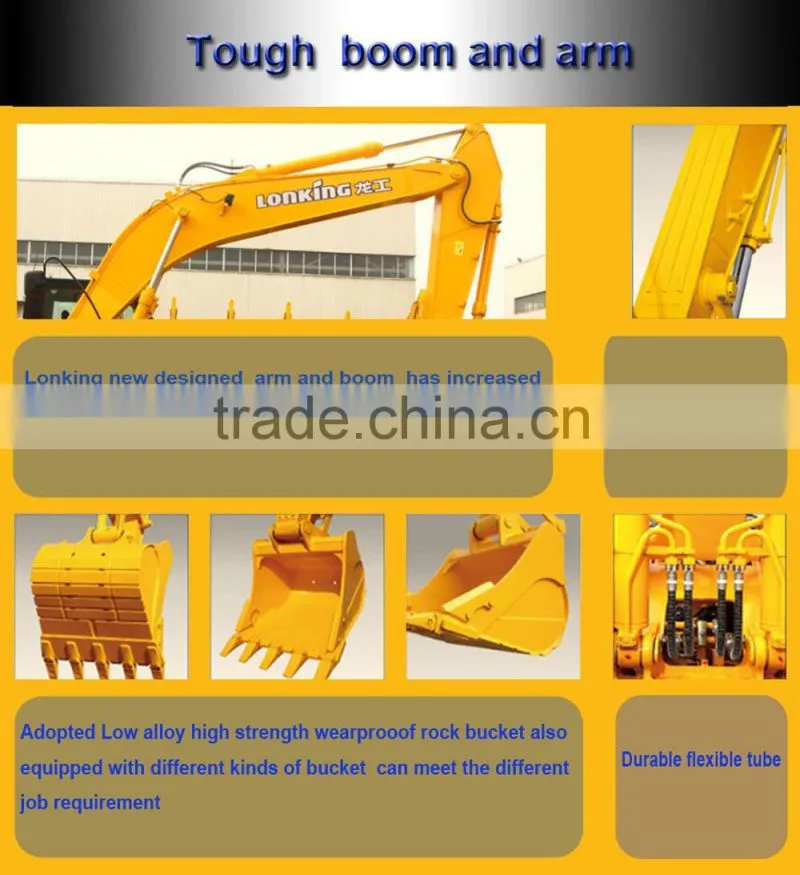

The main features for Lonking LG6150 excavator

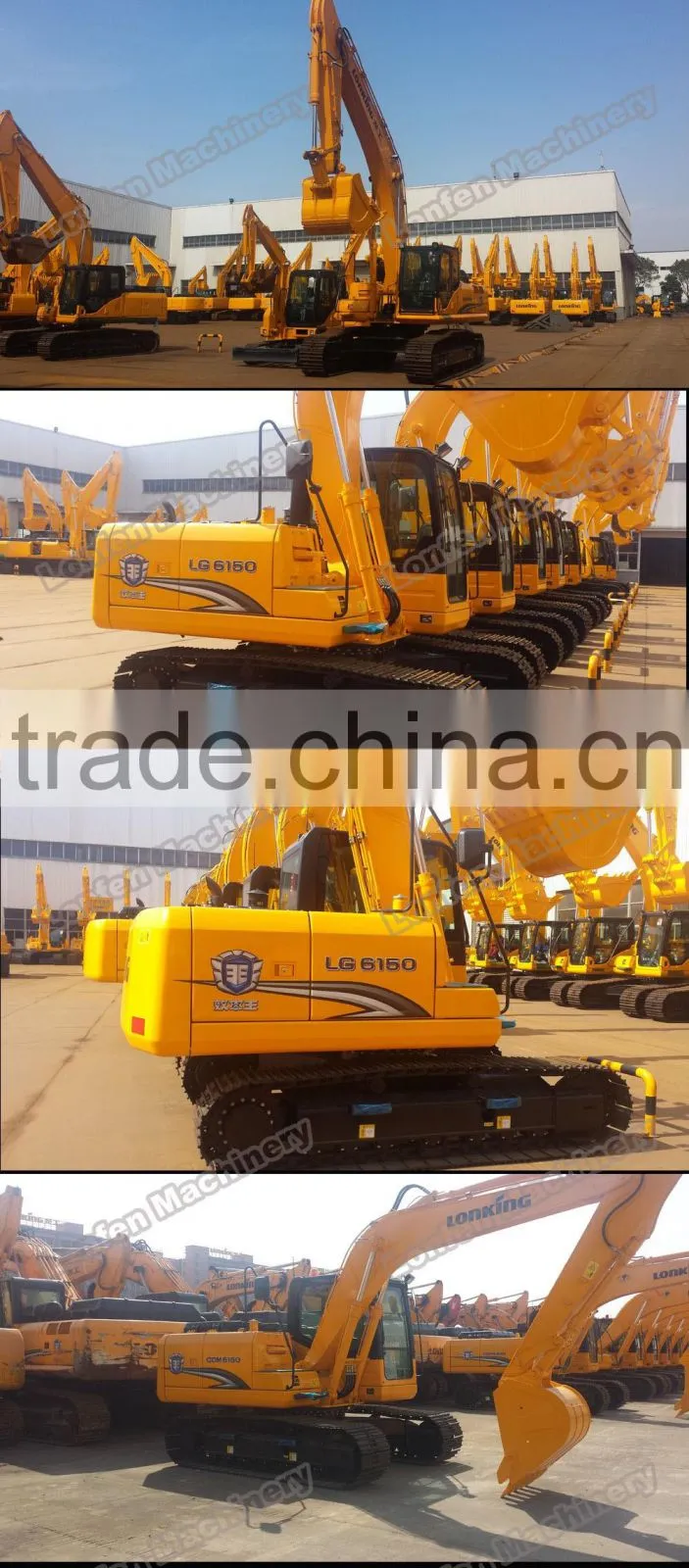

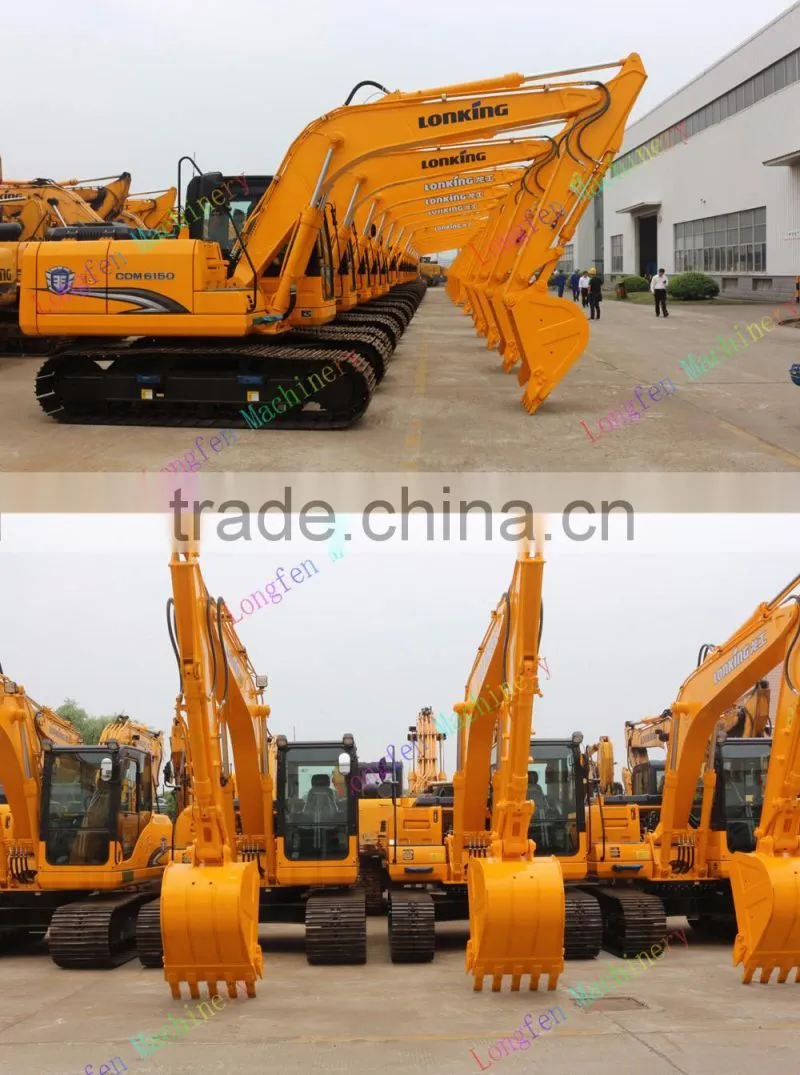

Our workshop
