LG6485H China 48 Ton Excavator for Sale With 2.2 Cbm Bucket
US$ 200,000 - 230,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Lonking
Model Number:
LG6485H
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LG6485H China Lonking Brand 48 t Low Price China Excavator for SaleUS$ 200,000 - 230,000MOQ: 1 Unit -
LG6485H High Quality China Lonking Fuel Economy Excavator for SaleUS$ 200,000 - 230,000MOQ: 1 Unit
-
LG6485H China 300 kw Diesel Excavator for SaleUS$ 200,000 - 230,000MOQ: 1 Unit
-
LG6485H Low Cost Lonking Excavator for Sale With Low PriceUS$ 200,000 - 230,000MOQ: 1 Unit
-
LG6485H Hot Sale China Lonking 48 Ton Track Excavator With Low PriceUS$ 200,000 - 230,000MOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
Lonking
Model Number
LG6485H
Condition
New
Moving Type
Crawler Excavator
Operating Weight
48200kg
Bucket capacity
2.2m3
Maximum Digging Height
10915mm
Maximum Digging Depth
7795mm
Machine Weight
48200kg
Max Digging Radius
12000mm
Rated Speed
5.5/3.3km/h
Certification
ISO CE
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Lonking high quality 48 ton hydraulic excavator for sale
| Construction Machinery CDM6485H features: |
| This model has many optional working devices, and has strong travelling driving force. The ground clearance is high. It adopts to mining and other serious conditions. The undercarriage can be disassembled, so it’s easy to be transported. This model is widely applied in mines and earthwork sites such as mining, road construction, railway construction and urban construction. |
| Strong power system |
| Adopt the QSM11 series engine with low noise, low emission and strong power that supports the work at high altitudes and meets Phase III waste gas emission standards of Europe and America. |
| Advanced hydraulic system |
| Adopt the double-pump double-loop negative flow control system that follows technical and intelligent electric proportional control and allows the engine and hydraulic power to be always consistent, thereby improving power utilization and fuel economy. |
| Excellent computer monitoring system |
| Set three power control modes to meet different load requirements. |
| Adopt the integrated electro-mechanical hydraulic technology to realize intelligent control, this technology can perform auto-diagnosis and auto-alarm display to the fault and it can provide functions of automatic idle speed, automatic engine overheating protection, auto-prompt of maintenance information and history fault log. |
| The multi-function monitor can fully monitor engine speed, coolant temperature, engine oil pressure and fuel level and so on. |
| Automatic sound warning for travel. |
| Multi-function comfortable luxury cab environment |
| The spacious and multi-function cab designed according to ergonomics enhances comfort for operator. |
| The luxury suspension seat can be regulated to provide optimal comfort for driver. |
| The mounting seat of cab adopts silicone oil & rubber material, it can both reduce the vibration and noise in the cab and greatly reduce the driver's fatigue, tremendously enhancing work efficiency. |
| The high-power air-conditioner and multi-hole circulating system enhance the refrigeration and heating capacity, to ensure comfortable temperature in the cab. |
| The cab has protective railings, so the operator is safer and more comfortable. |
| Convenient maintenance system |
| Three side doors can be opened, so that each maintenance point can be accessible when routine inspection and maintenance are performed. |
| The label of maintenance point is clear and simple, convenient for operation. |
| Electrical components are all arranged in the cab and the electrical control box for easy maintenance. |
| Walkways are increased on both sides of the platform, avoiding the trouble from ground maintenance and making maintenance easier. |
| The engine hood is opened a small door for the part of the engine needing maintenance, so that maintenance work becomes very convenient. |
The main parameter for LG6485H
| model | CDM6485H | |
| Engine | Model | CumminsQSM11 |
| Rated power | 269kW /1850 rpm | |
| Max. torque | 1674N M/1400rpm | |
| Bore× Stroke | 125mm × 147mm | |
| Displacement | 11.04 L | |
| Comment | Maintain the rated power at 2300m elevation. | |
| Operating weight | Summary | Operating weight:48200kg |
| The operating weight includes the weight of 7060mm standard boom,3380mm standard arm,2.2m3 standard bucket,600 mm track,lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units. | ||
| Ground pressure | 83 kPa | |
| Fluid capacity | Fuel tank | 655 L |
| Cooling system | 43 L | |
| Engine oil | 40 L | |
| Swing drive unit | 7.3 L | |
| Traveling gear | 2×10 L | |
| Hydraulic oil tank | 480 L | |
| Swing mechanism | Summary | High torque plunger motor and 2-stage planetary reducer drive.Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position. |
| Swing speed | 9.1 rpm | |
| Travel drive | Summary | The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface; The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking. |
| Taveling speed | 3.3 - 5.32 km/h | |
| Gradeability | 35°(70%) | |
| MaximumTraction | 382kN | |
| Traveling mechanism | Standard track shoe width | 600 mm |
| No. of track shoes | 50 (each side) | |
| No. of carrierrollers | 2 (each side) | |
| No. of track rollers | 9 (each side) | |
| Hydraulic system | Main pump | Duplex axial variable plunger pump |
| Pilot pump | Gear pump (integrated in main pump) | |
| Max. flow of system | 2×360 L/min | |
| Max. pressure of equipment | 37.2 MPa | |
| Max. pilot pressure | 3.9 MPa | |
| Operating equipment | Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control. | |
| Electrical system | System voltage:24 V | |
| Battery:12 V,120 A×2 | ||

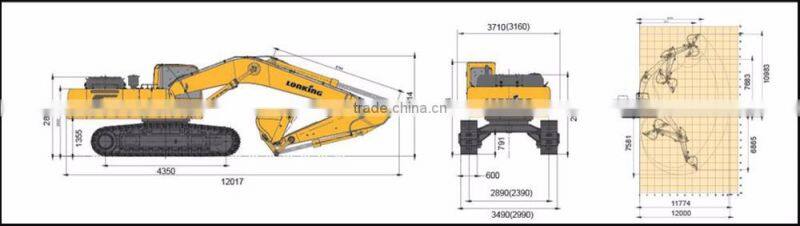

The size of the LG6485h

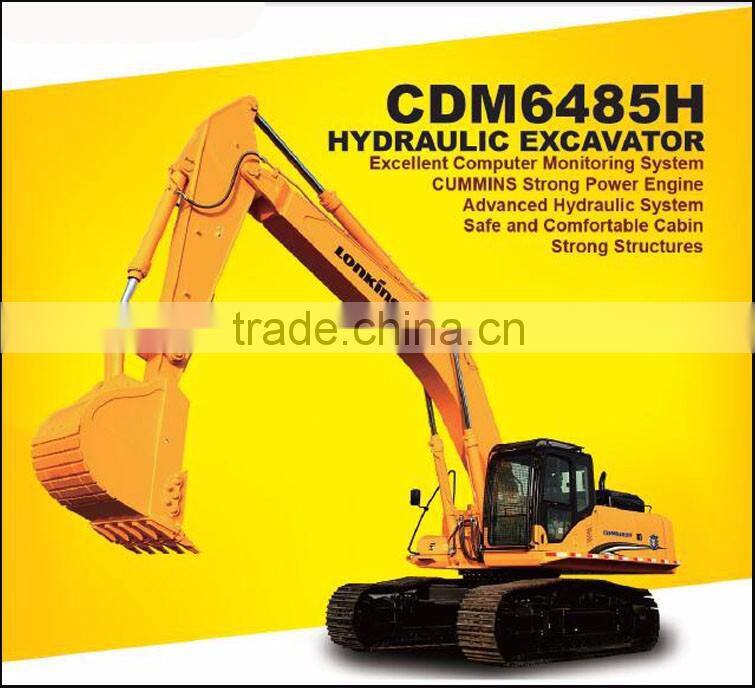

THE PICTURES FOR Lonking 48 ton excavator for sale with high quality
Packaging & Shipping
packing and shipping
we have more models for your option
