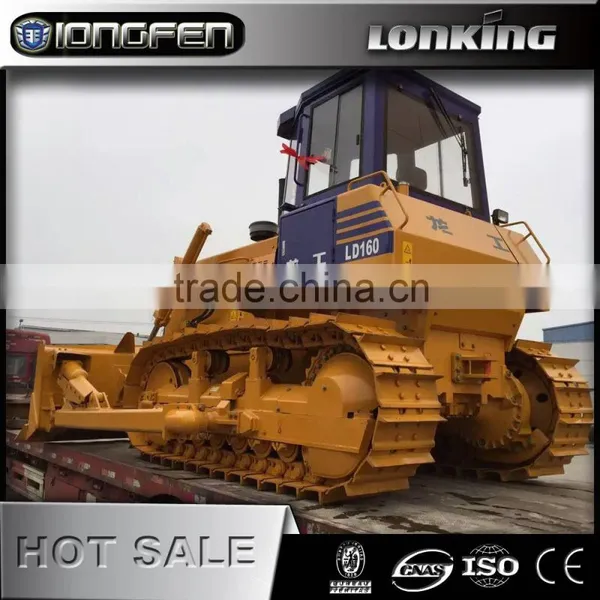

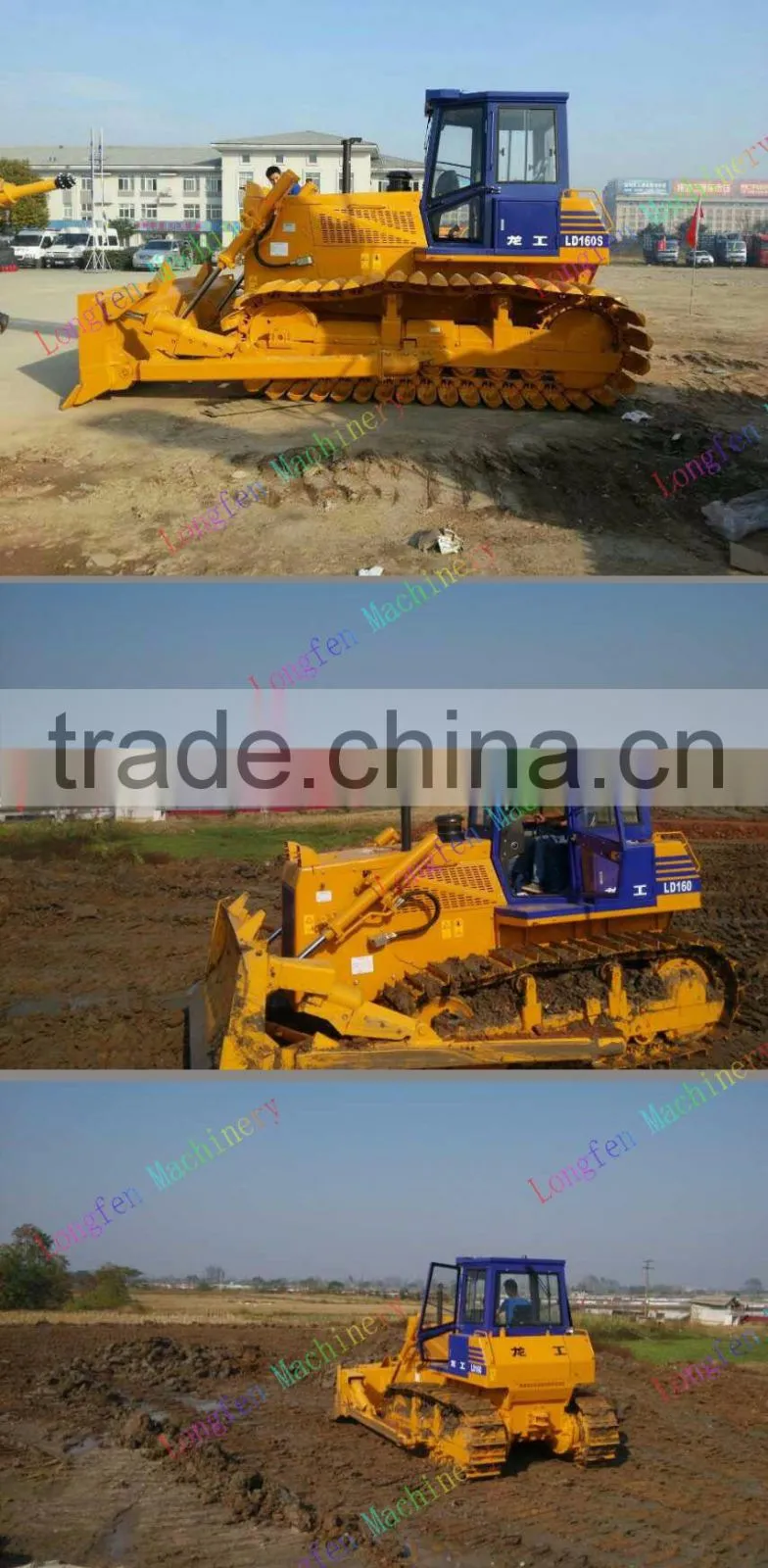

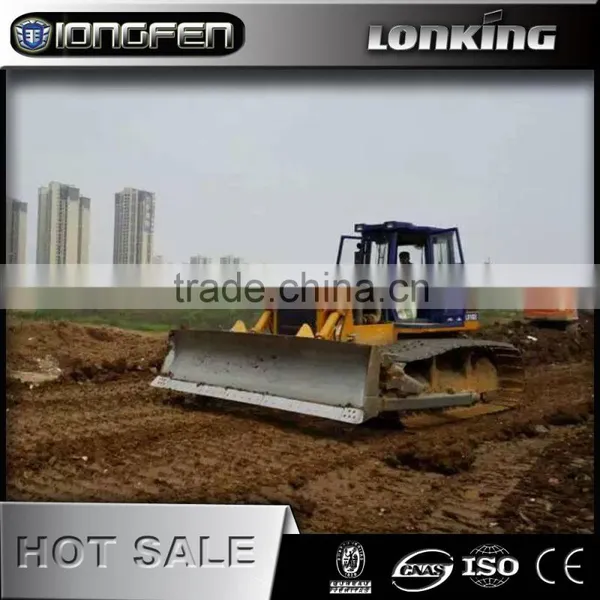

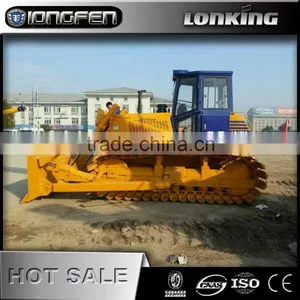

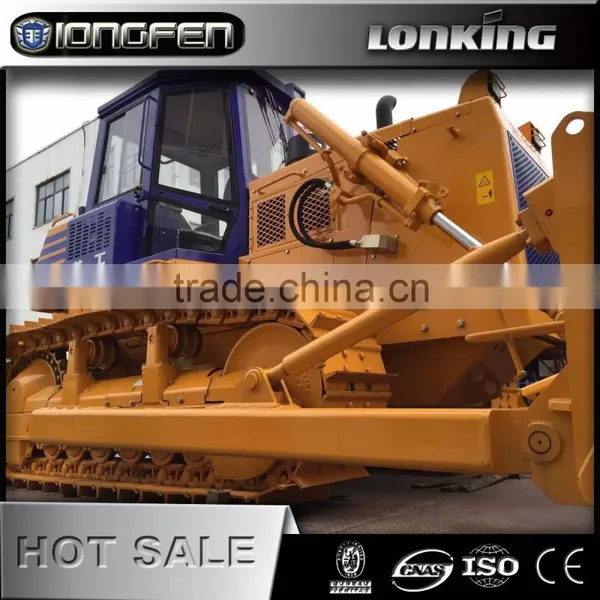

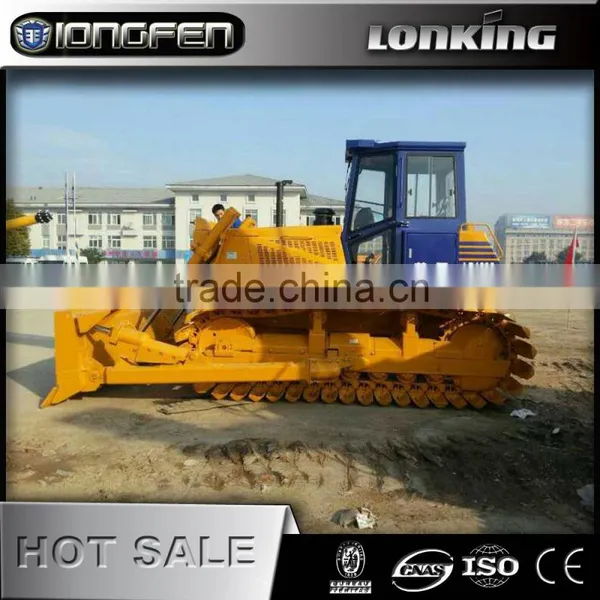

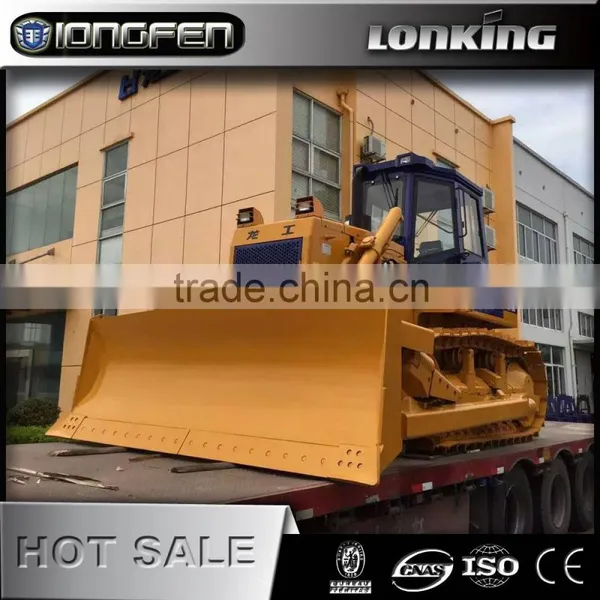

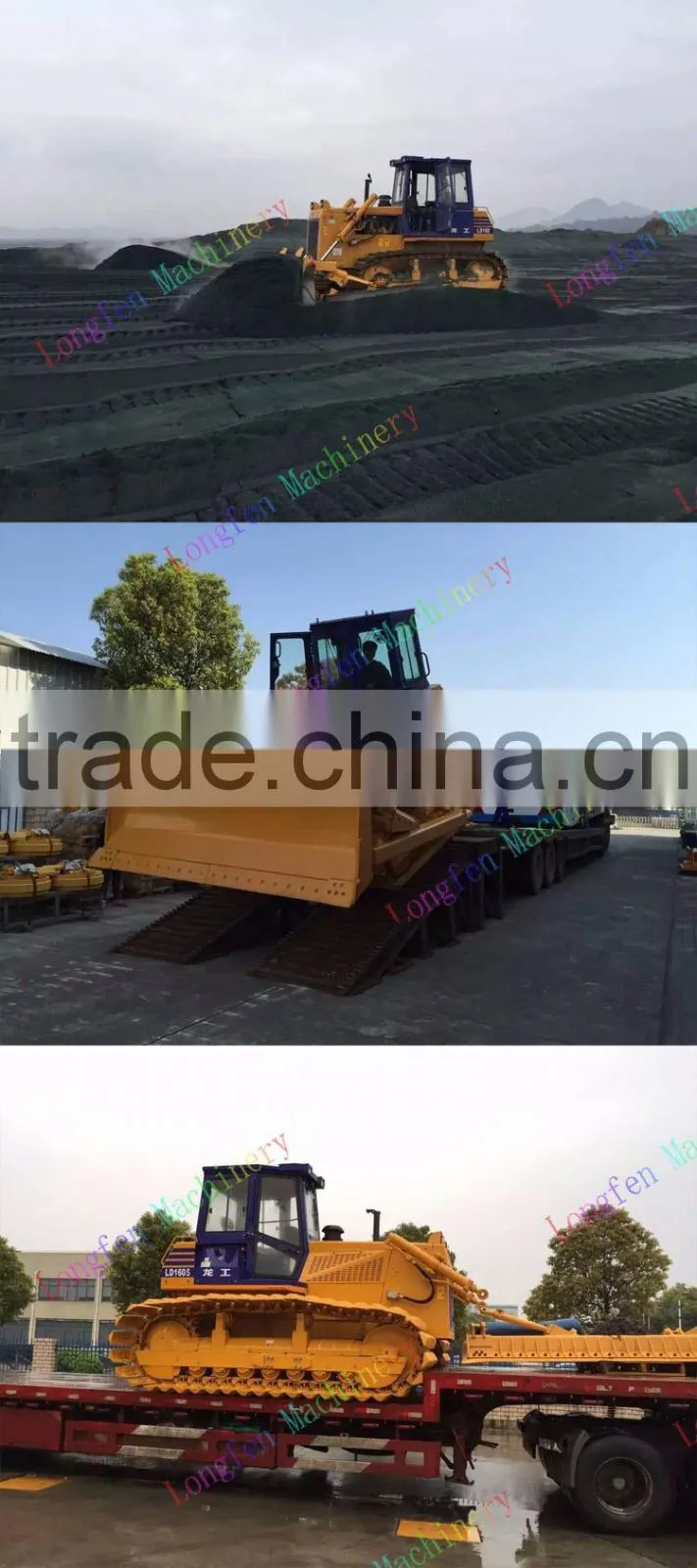

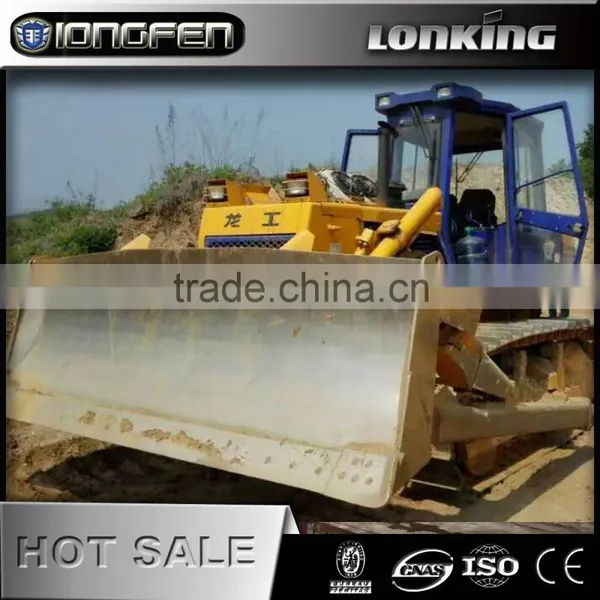

LD160S China Shantui Bulldozer/Lonking Bulldozer/xcmg Bulldozer

Name: LD160S China Shantui Bulldozer/Lonking Bulldozer/xcmg Bulldozer
Brand: Lonking
SKU: 126320611

US$ 1 - 20,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Lonking

Model Number:

LD160S

Shanghai Long Fen Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Lonking

Model Number LD160S

Condition New

Moving Type Crawler Bulldozer

Machine Weight 16800kg

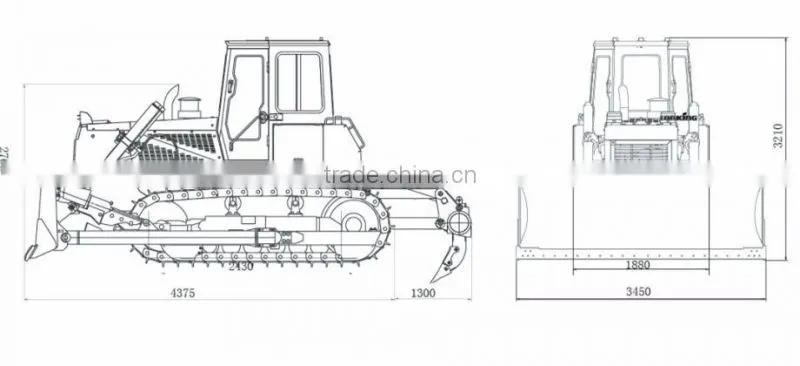

Dimension(Long * Breadth * High) 5677x3450x3210mm

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Lonking 17 ton bulldozer for sale with low price for sale

the parameter for ld160s

Engine	WD10G178E25
Power	120kW/1850rpm
Blade Type	Straight Blade
Operating Weight	16800kg
Blade Capacity	4.5m³
Engine
Model	WD10G178E25
Type	Water-cooled,in-line, 4-Stroke,Direct Injection
Rated Power(kW)	120
Rated Speed(r/min)	1850
Number of Cylinders-Bore×Stroke(mm)	6-125×130
Piston Displacement(L)	9.726
Min.Fuel Consumption(g/kW·h)	214
Max.Torque(N)	764
Water Tank Capacity(L)	79
Fuel Tank Capacity(L)	300
Hydraulic system
Max Working Oil Pressure(MPa)	14
Oil Pump Type	Gear Pump
Flow(L/min)	243
Lifting Cylinder of Blade (Bore×Number of Cylinders)	Φ110×2
Tilt Cylinder of Blade (Bore×Number of Cylinders)	Φ160×1
Power Train System
Type	Swing Type of Sprayed Beam Suspended Type of Balance Beam
Number of Carrier Rollers(Each Side)	2
Number of Track Rollers(Each Side)	6
Track Type	Single Grouser
Width of Shoe(mm)	510/610(Optional)
Length of Track on Ground(mm)	2430
Blade
Blade Type	Straight
Width×Height(mm)	3350×1120
Max.Lifting Height(mm)	1110
Max.Digging Depth(mm)	530
Cutting Edge Angle(°)	55
Max.Tilt(mm)	400
Ripper
Type	Three-shank
Max.Penetration(mm)	572
Max.Lifting Height(mm)	492
Travelling Speed
Speed of Forward Gears(km/h)	0-3.33
	0-5.89
	0-9.75
Speed of Reverse Gears(km/h)	0-4.33
	0-7.67
	0-12.68
