T series contour cutting plotter Hanze TH-740
Usage
The machine with high speed and low noise . With the name speed in curve line and straight line.
Carving pressure and and quick separation .Standard DM/PL language pattern,with a high speed.
It canbe typed through CORELDAW directly.
CUTTING PLOTTER the main purposes is stuck in the fragile text or graphics. Forte by the dorsal surface and lining two materials, mouse, only in the exclusive bits stuck on the surface dielectric creates text or graphics,
while not cut back lining .And you can draw, cut, kiss-cut and decupe shapes around.
You can cut cartoon or other Vinyl and polyester sheets for your business and hobbies.
Features
1.Convenience repeat function,up to 500 times(32-bit ARM CPU,128mb, High- speed CACHE
memory)
2.High-precision steel Axes,guarantee the precision.
3.Compatible Artcut, Flexi sign10.0, Coreldraw,Adobe Illustrator,Signcut,ect. (CDR and AI can output directly)
4.Our machine have more interface for you supply:U disk,USB,Serial port,Bluetooth OR WIFI Wireless transfer;can work independently without PC when you use U disk
5.We supply many optional functions for you to choose :contour cutting,AAS automatic contour cutting ,media way ,basket,huge pressure ,Mac OSX system;
6.Our machine's control panel have 11 membrane or sillilcon buttons and 3.0 inch LED touching screen ,havetwo language :Chinese and English;
7.Beautiful appearance.
8.Super silence.
9.Leading shaft,High torgue step/servo motor,micro-step driver.
10.ARM system.
Specification
| Model | TH-740XL |
| Media way | optional/Floor stand |
| Mainboard | 32-bit ARM7 CPU,4MB,High-speed CACHE memory |
| Control panel | 9 Key industrial buttons+4 inch high-definition touch screen |
| Driver | High speed,big power step motor,micro-step driver |
| Maximum paper feed width | 730mm |
| Maximum cutting width | 630mm |
| Maximum cutting speed | 800mm/s |
| Cutting force | 0-1000g(digital adjustment) |
| Mechanical precision | 0.025mm |
| Repeat precision | <± 0.025mm |
| Type of plotter pen | All types diameter 11.4mm plotter pen |
| plotter instruction | Compatible DM/PL,HP/GL |
| interface | USB/U disk/Serial port |
| Power supply | AC220V/110V,50Hz |
| Power consumption | <80w |
| knife (blade) | TENETH imported blade |
| Operating environment | Temperature:5-35°c,Relative Humidity:30-70% |
| Package size | 1045*330*395 |
| Gross weight | 30kg |

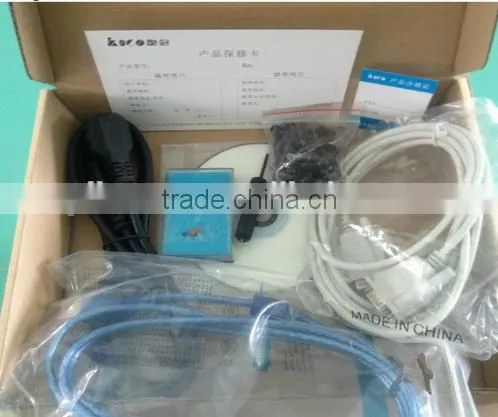

Package content:
1×Power line 1×pen
1×serial cable 1×Stand
3× knifes 1×Warranty card
Cutting products show:
Excellent After-sale Services:
One year warranty |
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request. |
Free exchange of new components |
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge, you only need to pay the freight , except for the print head and some consumable parts. |
Free online consultation |
The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily. |
Free onsite installation and training |
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it |
