Specifications
1:SMC Type CRA1 Series Pneumatic Rotary Cylinder2:Bore size: 30, 50, 63, 80, 100mm
3.Long service of life, easy to use.

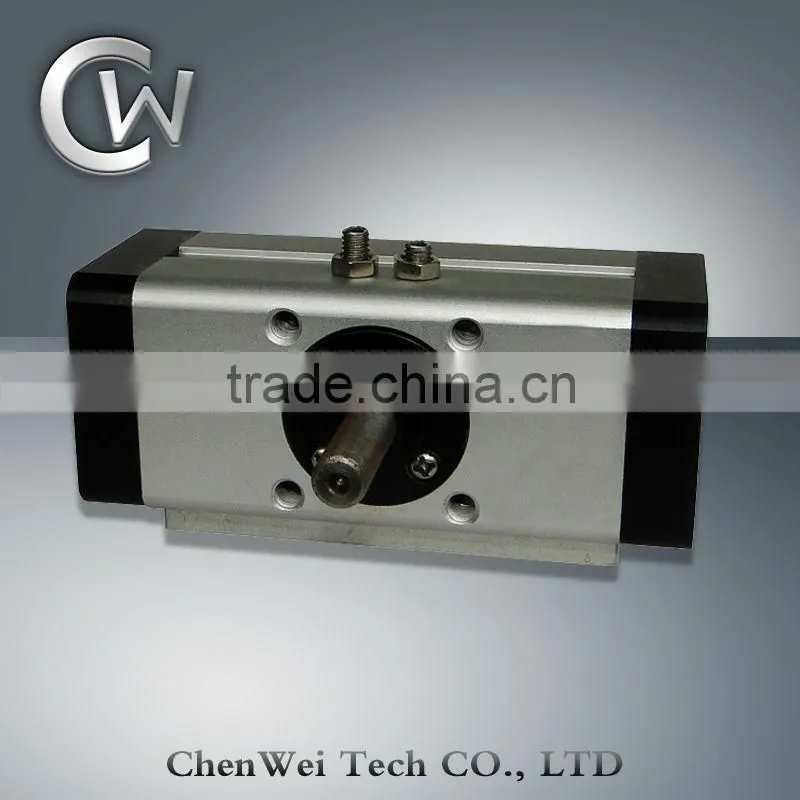

SMC Type CRA1 Series Pneumatic Rotary Cylinder
Features:
1.CRA1 series rotary Pneumatic actuators.
2.Equivalent to SMC CRA1 series Rotary Pneumatic Actuators , with the same appearance.
3.Bore size(mm): 30, 50, 63, 80, 100.
4.Rack & Pinion style rotary actuator.
5.Rotating angle: 90°, 100°, 180°, 190°.
6.Angle adjustment is possible.
7.A wide variety of types and broad size variations.

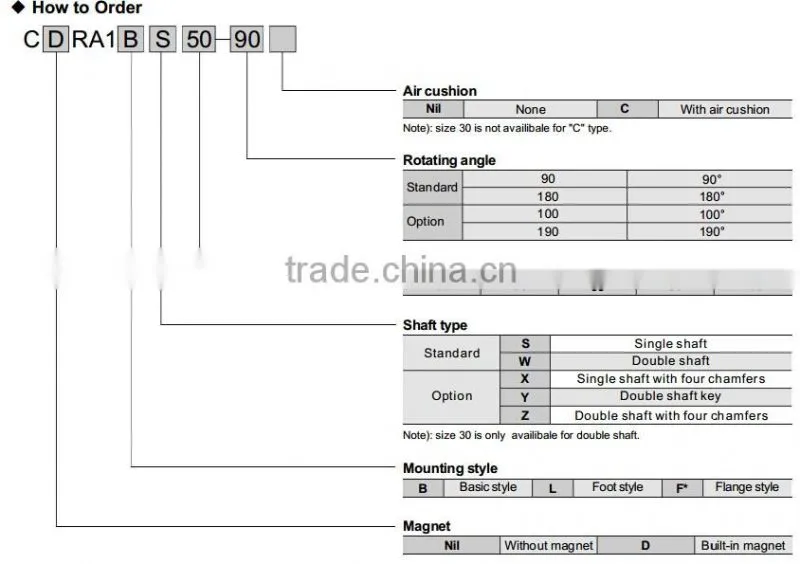

How to Order:
Specification:
| Bore size(mm) | 30 | 50 | 63 | 80 | 100 |
| Fluid | Air | ||||
| Action | Double acting | ||||
| Minimum operating pressure | 0.1 MPa | ||||
| Maximum operating pressure | 1.0 MPa | ||||
| Ambient and fluid temperature | 0 to 60°C (No freezing) | ||||
| Cushion | None | Adjustable air cushion at both ends | |||
| Lubrication | Non-lube | ||||
| Output (N·m) | 1.9 | 9.3 | 17 | 32 | 74 |
| Auto Swith(Option) | Solide state switch(3-wire, 2-wire) | ||||
| Port Size | M5x0.8 | G1/8 | G1/4 | G3/8 | |
| Note 1: Output under the operating pressure at 0.5 MPa. | |||||
Main Material
| No. | Description | Material | Note |
| 1 | Body | Aluminum alloy | Hard anodized |
| 2 | Cover | Aluminum alloy | Hard anodized |
| 3 | Piston | Aluminum alloy | Chromated |
| 4 | Shaft | Chrome molybdenum steel | - |
| 5 | Rack | Carbon steel | - |
| 6 | Piston seal | NBR | - |

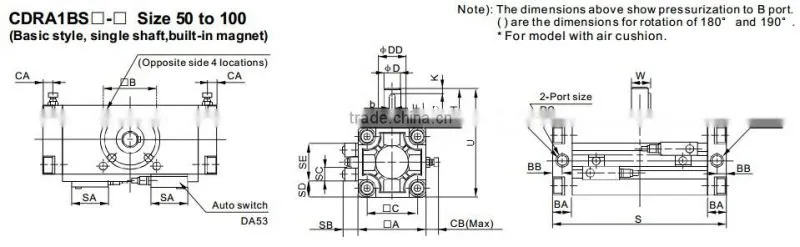

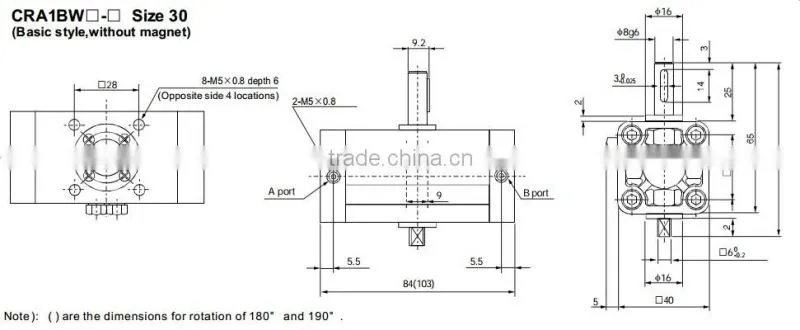

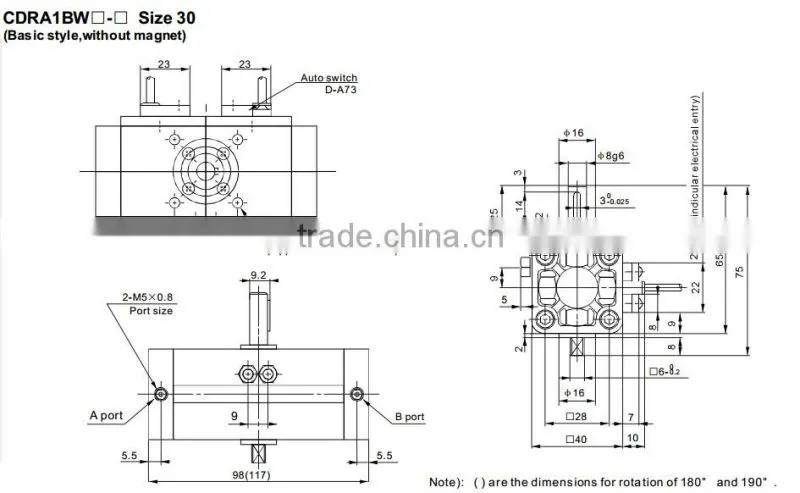

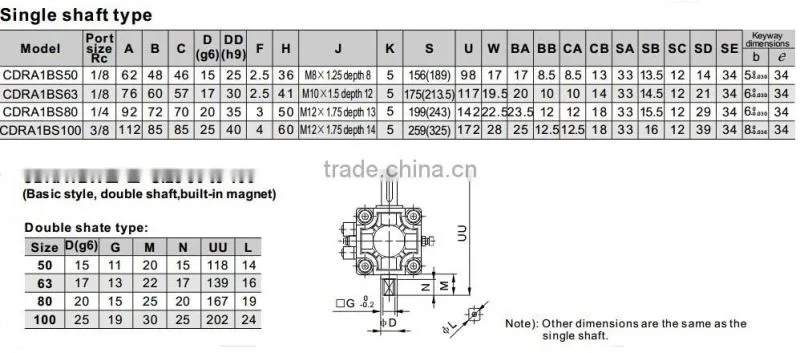

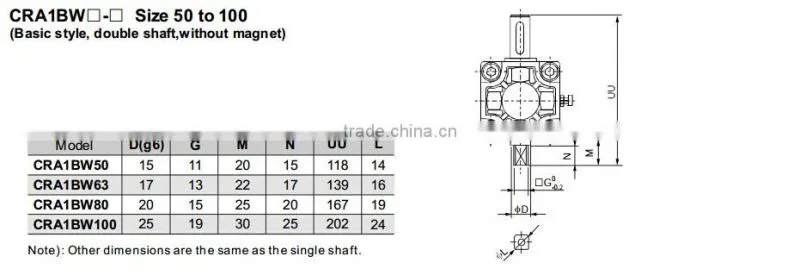

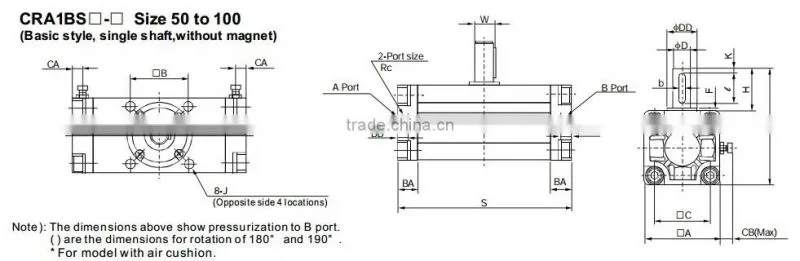

Dimensions and sizes:
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us

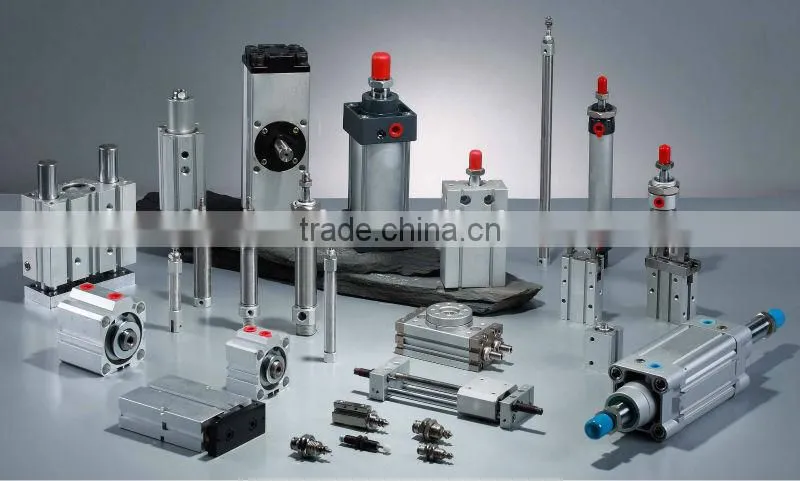

1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
