Specifications
1:MSQ Series Pneumatic Rotary Cylinder-SMC Rotary Cylinder2:Bore size: 10-200mm
3:Integration of a table and rotary actuator

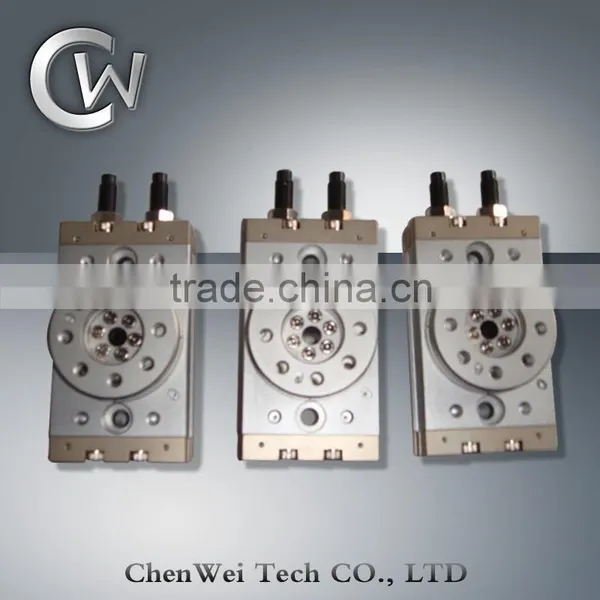

MSQ Series Pneumatic Rotary Cylinder
Features:
1).Easy mounting of workpiece.
2).Large rolling element bearing.
3).Pivoting angle adjustment range: 0~190
4).With internal shock absorber.
5).Movement in direction of table's radial thrust: 0.01mm or less.
6).Small size and light weight.
7).Variety of installation options for space-saving.

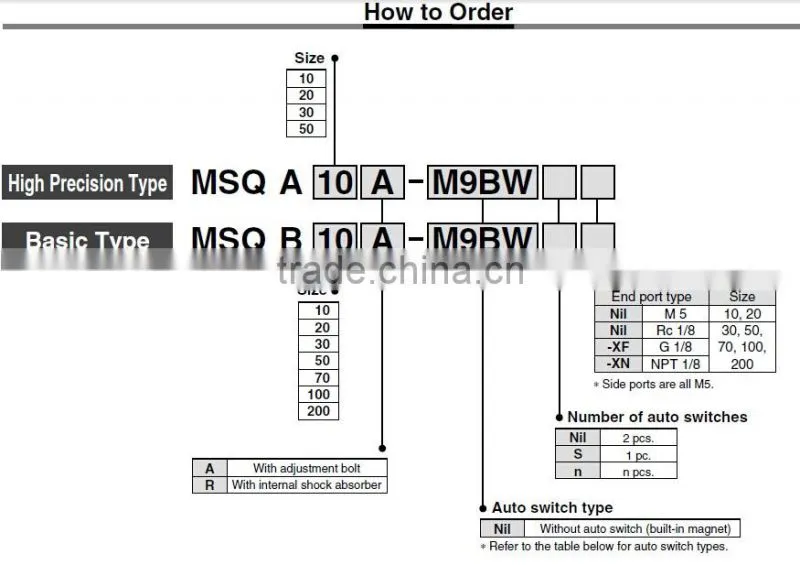

How to Order:
Specification:
| Bore size(mm) | 10 | 20 | 30 | 50 | |
| Fluid | Air(no lubrication) | ||||
| Max operating pressure | withadjustment bolt | 1.0MPa | |||
| with internal shock absorber | 0.6MPa | ||||
| Working temperature | 0 to 60 degree | ||||
| Cushion | withadjustment bolt | rubber bumper | |||
| with internal shock absorber | shock absorber | ||||
| Angle adjustment range | 0 to 190 degree | ||||
| Max rotation | 190 degree | ||||
| Port size | endport | M5X0.8 | 1/8" | ||
| slide port | M5X0.8 | ||||
Main Material
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
