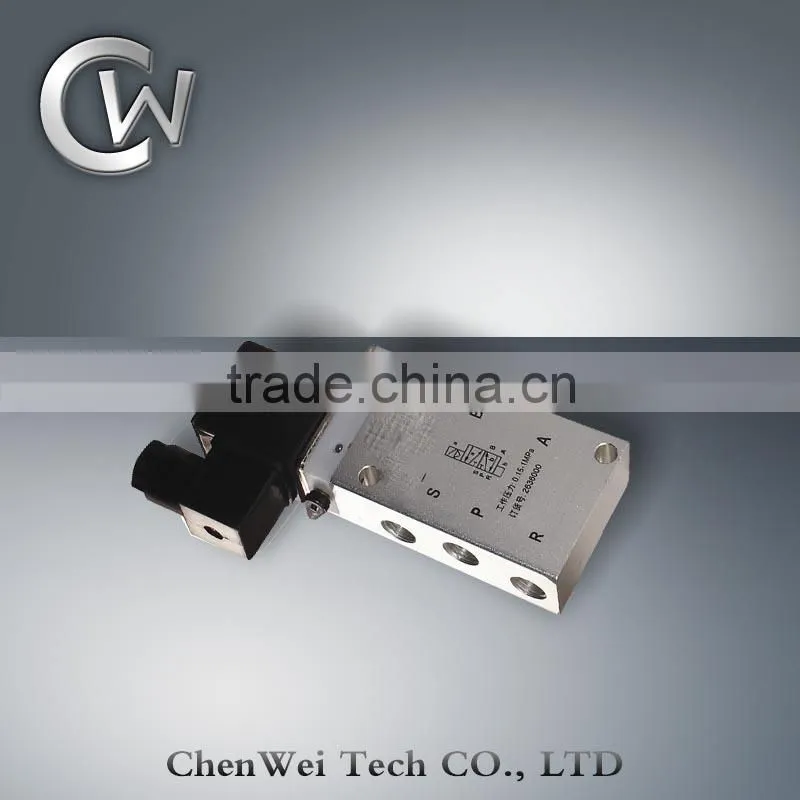

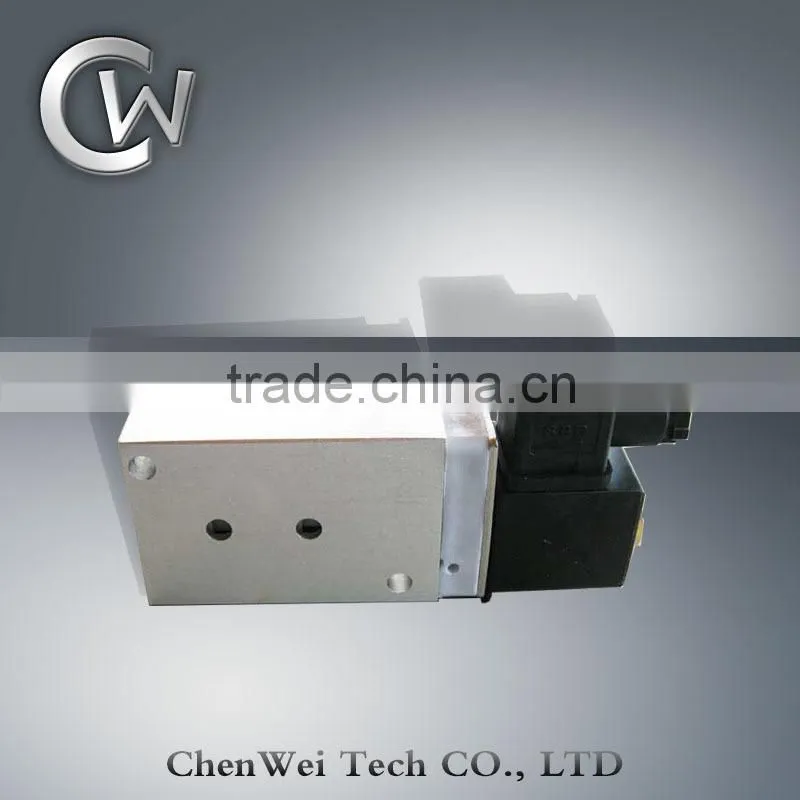

HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve
- 1000 Piece / Pieces per Month
- ningbo or shanghai
- T/T Credit Card PayPal
Product Details
| Standard or Nonstandard: | Standard | Structure: | Regulating | Pressure: | Medium Pressure |
| Power: | Pneumatic | Material: | Alloy | Temperature of Media: | Medium Temperature |
| Media: | Other, air | Port Size: | G1/2 | Place of Origin: | Zhejiang, China |
| Model Number: | 8020750/8022750/8021750/8020850/8022850/8021950 | Brand Name: | CW |
Product Description
Specifications
1:HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve2:Port size:G1/4,G1/2
4:1 year warranty
HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve
1: HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve
2: 3/2 way
3:Port size:G1/4,G1/2
4:1 year warranty
5:Good quality and reasonable prices.

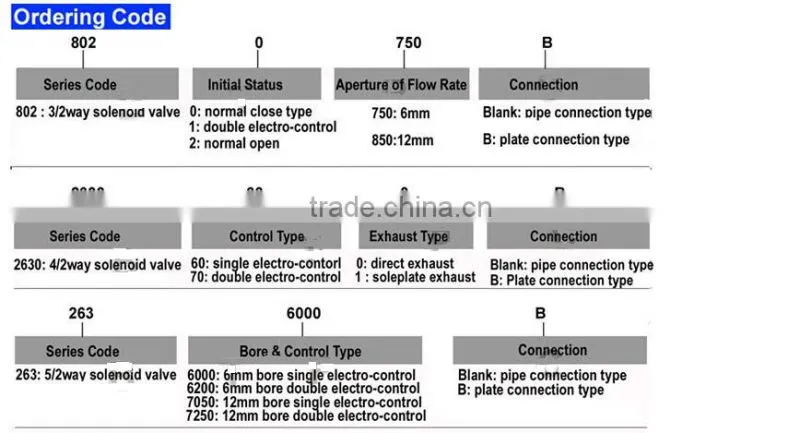

How To Order:
Specification:
| Model | 8020750 | 8022750 | 8021750 | 8020850 | 8022850 | 2630600 | 2636000 | 2636200 | 2637050 | 2637250 |
| Effective Section Area | 10 mm²(Cv=0.56) | 40mm²(Cv=2.23) | 4mm² | 10 mm²(Cv=0.56) | 40mm²(Cv=2.23) | |||||
| (Cv=0.23) | ||||||||||
| Port Size | Inlet=Outlet=G1/4 | Inlet=Outlet=G1/2 | In=Out= | In=Out=Exh=G1/4 | In=Out=Exh=G1/2 | |||||
| Exh=G1/8 | ||||||||||
| Way & Position | 3/2way | 4/2way | 5/2way | |||||||
| Working medium | 40um micron filtered air | |||||||||
| Working-pressure | 0.15~1.0Mpa | |||||||||
| Max. pressure resistance | 1.2MPa | |||||||||
| Medium Temperature | -5~50°C | |||||||||
| Insulation & Protection class | IP65, F class | |||||||||

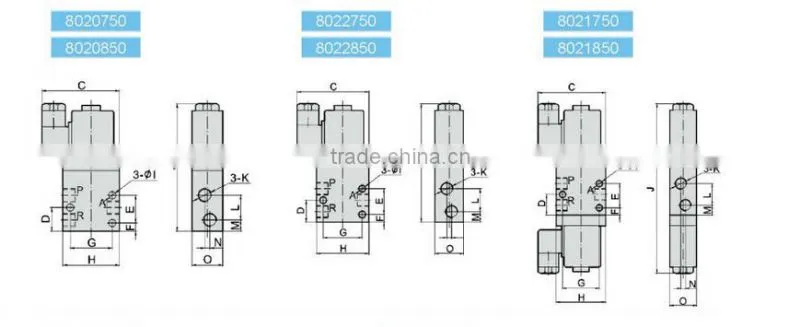

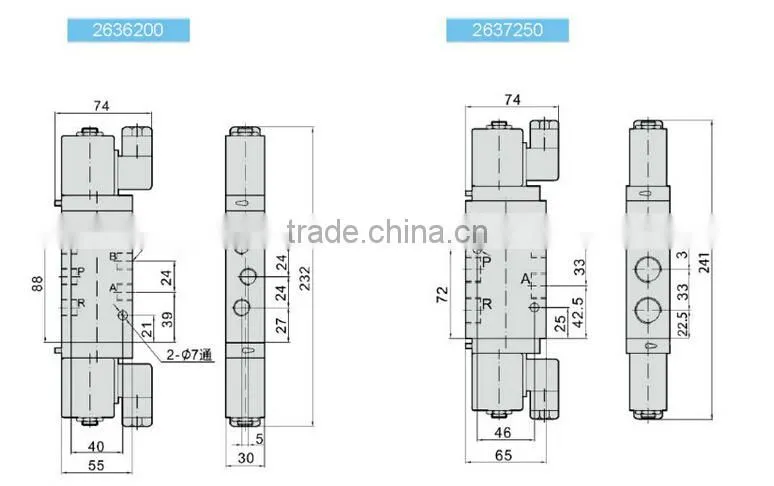

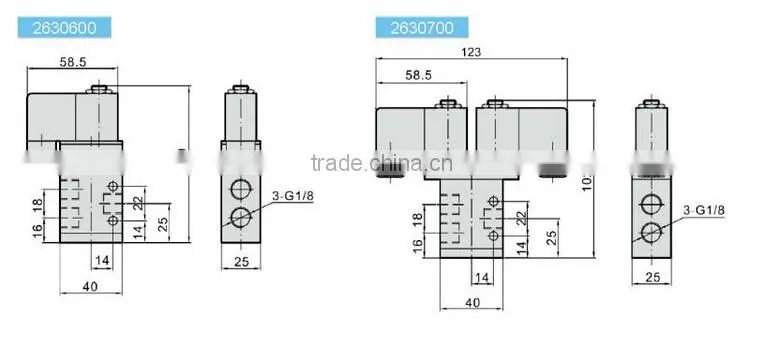

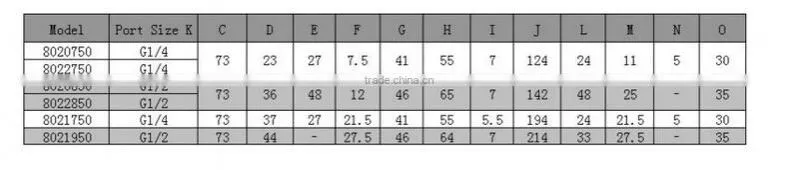

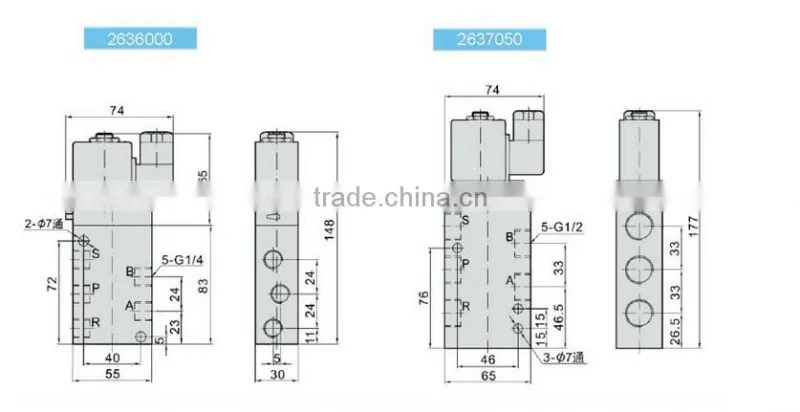

Dimensions and Sizes:
Shippment
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
