Specifications
1.Plastic Water-proof Solenoid Valve- Plastic solenoid valve2.Port size:1/8", 1/4" ,3/8" ,1/2",3/4", 1" ,1-1/4" ,1-1/2" ,2"

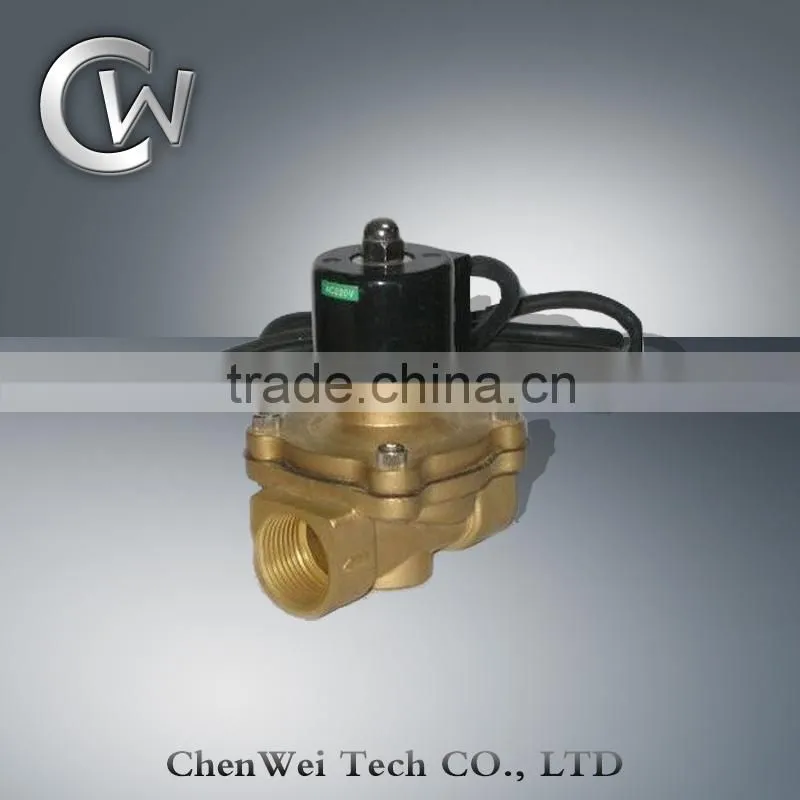

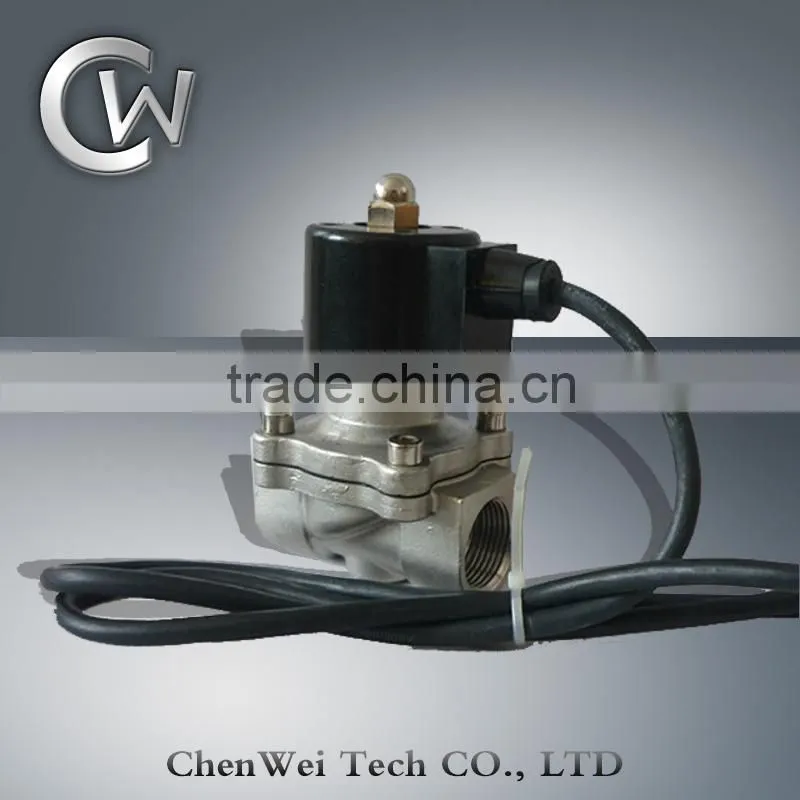

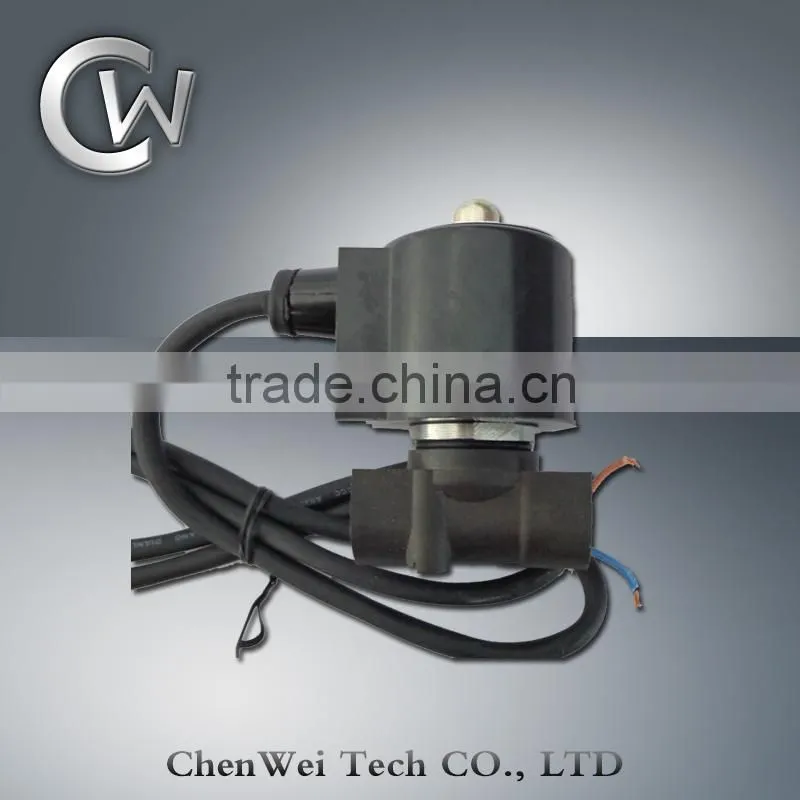

Plastic Water-proof Solenoid Valve- Plastic solenoid valve
Features:
1 ) working pressure:water:0~5kgf/cm2, air:0~7kgf/cm2, oil:0~5kgf/cm2
2 ) Max. pressure:10kgf/cm2
3 ) Working medium: gas, oil, water.
4 ) velocity:below 20CST
5 ) Working temperature:-5~80℃
6 ) Fluid ph:10%, higher ph value can be customized.
7 ) Acting type: Direct acting
8 ) Type: Normally closed type.
9 ) Lifetime:More than 150000 times
10 ) nsulation class:B class
G1/4″ Thread ID:11mm
G3/8″ Thread ID: 14mm
G1/2″ Thread ID: 19mm
G3/4″ Thread ID: 24mm
G1″ Thread ID: 31mm
G1 1/4″ Thread ID: 38.5mm
G1 1/2″ Thread ID: 45mm
G2″ Thread ID: 57mm
Specification:
| Model | 2WSL025-06 | 2WSL025-08 | 2WSL040-10 | 2WSL160-10 | 2WSL160-15 | 2WSL200-20 | 2WSL250-25 | 2WSL350-35 | 2WSL400-40 | 2WSL500-50 |
| Fluid | Air, Water, Oil | |||||||||
| Action | Direct Acting, Normally Closed | |||||||||
| Type of Actuation | 2 port 2 position | |||||||||
| Orifice Size | 2.5mm | 4mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||
| Cv | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||
| Port Size | G1/8 | G1/4 | G3/8 | G3/8 | G1/2 | G3/4 | G1 | G1/1/4 | G1/1/2 | G2 |
| Viscosity Limit | Under 20CST | |||||||||
| Operating Pressure Range | Air:0~0.7MPa, Water:0~0.5MPa, Oil: 0~0.5MPa | |||||||||
| Proof Pressure | 1.05MPa | |||||||||
| Ambient and Fluid Temperature | -5 ~ 80 degrees centigrate | |||||||||
| Allowable Voltage Range | ±10% of rated voltage | |||||||||
| Material of Body | Engineering plastic | |||||||||
| Seal Material | NBR | |||||||||
| Power consumption | AC220V | 2.0W |
| DC12V,AC110V,AC380V | 2.5W | |
| DC24V | 3.0W | |
| AC24V | 3.5W | |
| Allowable voltage range | -15%~10% | |
| IP rate | IP65 | |
| Insulation rate | Class F | |
| Action | Internally piloted | |
| Min. activate time | 0.05 s | |
| Lubrication | Needless | |
Dimensions and Sizes:
