Specifications
1.2W200-20 Engineer Plastic Water Solenoid Valve2.Port size:3/4"
3.Working temperature:-5~80
4.Pressure:0-0.8MPa

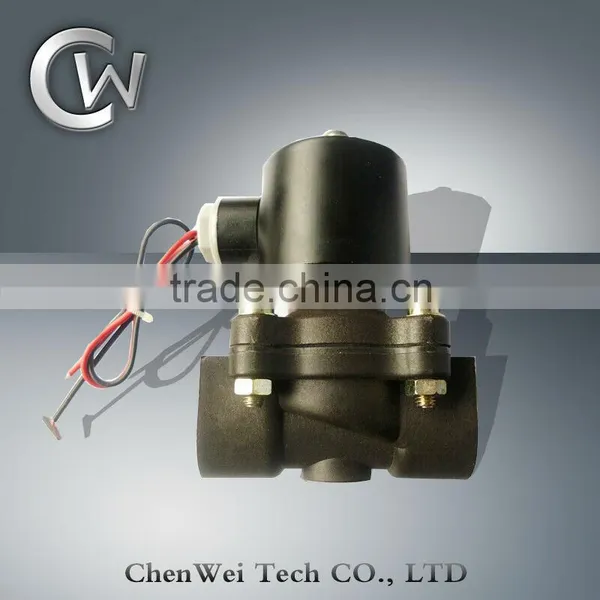

2WSL200-20 Engineer Plastic Water Solenoid Valve
Features:
The 2WSL200-20 series plastic water valve are used for many conditions especially for water treatment system,with thread size G3/4".
1.Port size: G3/4"
2.Motion pattern: Direct Action, normally closed.
3.Working Medium: Air,Water,Oil,Gas
4.Type: Normal Close Type
5.Working Pressure: Air:0-0.7MPa; Water:0-0.5MPa; Oil: 0-0.5MPa. Max,Pressure Resistance: 1.0Mpa
6.Operating Temperature: -5-80°C
7.Voltage Range: ±10%
8.Material of valve body: Plastic
9.Material of seal: NPR,EPDM or VITON
10.Life span>150000
11.Insulation class:B class
12.Coil temperature <75℃
13.Power consumption<30W
Shippment
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
