Specifications
1.Stainless Steel 2 way Steam Solenoid Valve-Steam Valve2.Medium: steam
3.Temperature:-5~+180 degree
4.port:G1/2 to G2

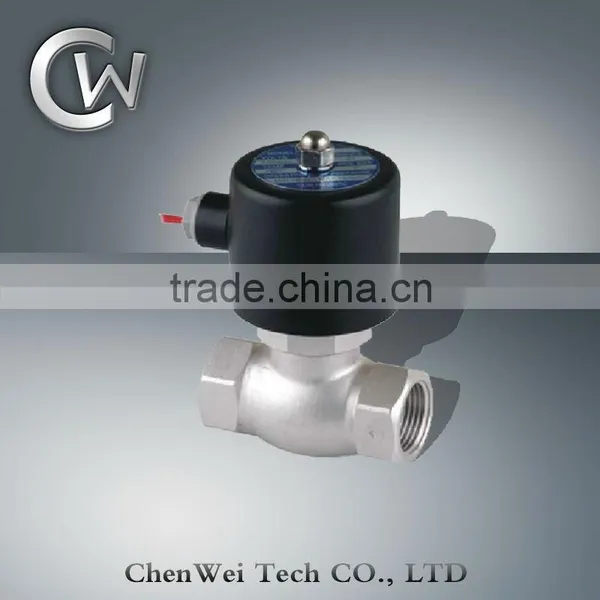

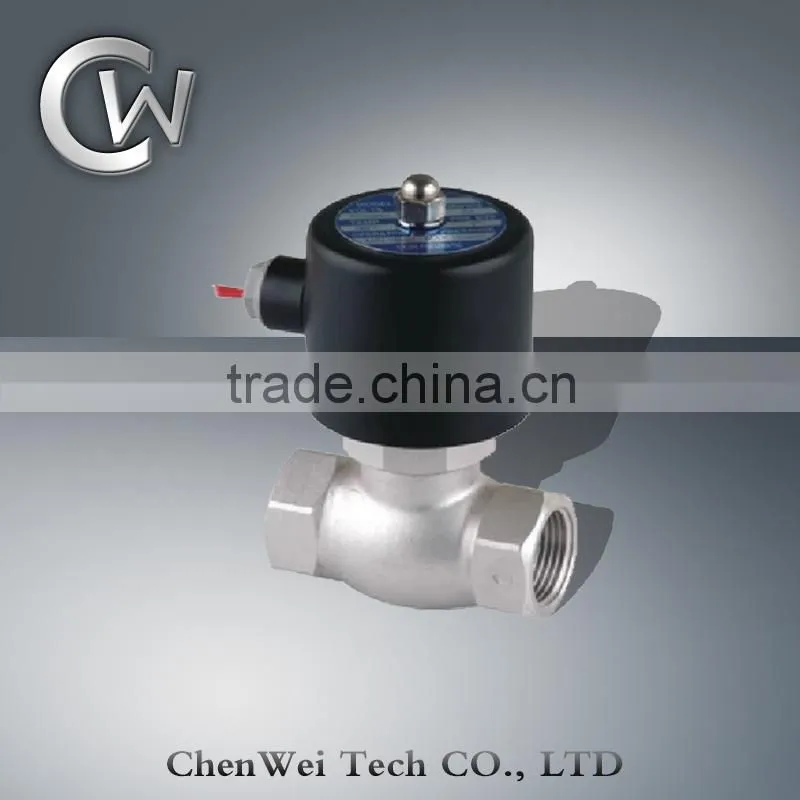

Stainless Steel 2 way Steam Solenoid Valve-Steam Valve
Features:
1) port size: 1/2" ~ 2"
2) Working Medium: steam, air, water
3) Action Type: pilot operated
4) Valve Body:Stainless steel
5) Valve Control Style: NC (normal close)
6) Orifice Size: 17,22,30,50
7) Working Pressure: 0~1.5MPa
8) Max. Proof Pressure: 1.5MPa
9) Seal Material: PTFE
10) Working Temperature: -5~185°C
11) Wiring Form: lead wire type, DIN connector, explosion-proof coil
12) Voltage: DC12V, DC24V, AC24V, AC110V, AC220V ,AC380V 50/60HZ,
Specification:
| Model | 2L170-15 | 2L170-20 | 2L200-25 | 2L300-35 | 2L400-40 | 2L500-50 |
| Fluid | Air, Water, Steam | |||||
| Action | internally pilot acting, normally closed | |||||
| Type | 2 port 2 position | |||||
| Aperture (mm) | 17mm | 20mm | 30mm | 50mm | ||
| Cv value | 4.8 | 12 | 20 | 48 | ||
| Port size | G1/2'' | G3/4'' | G1'' | G1-1/4'' | G1-1/2'' | G2" |
| Operation fluid viscosity | 20 CST Below | |||||
| Operating pressure | 0.1 ~ 1.5MPa | |||||
| Max. Proof pressure | 2.25MPa | |||||
| Operating temperature | -5 ~ 180C | |||||
| Alowable Voltage range | ±10% of rated voltage | |||||
| Material of body | stainless steel | |||||
| Material of oil seal | PTFE | |||||
| Power consumption | AC220V | 2.0W |
| DC12V,AC110V,AC380V | 2.5W | |
| DC24V | 3.0W | |
| AC24V | 3.5W | |
| Allowable voltage range | -15%~10% | |
| IP rate | IP65 | |
| Insulation rate | Class F | |
| Action | Internally piloted | |
| Min. activate time | 0.05 s | |
| Lubrication | Needless | |
Dimensions and Sizes:
Shippment
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
