Help CenterMHC2-16 Air Gripper Cylinder-SMC Type Gripper
Related Products
-
MHC2-10 Pneumatic Gripper Cylinder-SMC Type GripperUS$ 25 - 30MOQ: 1 Piece -
SMC Type MHT2 Toggle Type Angular Style Air GripperUS$ 40 - 50MOQ: 1 Piece
-
MHS2 Series 2 Finger Parallel Style Air GripperUS$ 40 - 50MOQ: 1 Piece
-
SMC Style MHC2 Series Air Gripper CylinderUS$ 40 - 50MOQ: 1 Piece
-
MHZ2 Series Parallel Style Air Gripper CylinderUS$ 40 - 50MOQ: 5 Pieces
Specifications
1:MHC2-16 Air Gripper Cylinder-SMC Type Gripper2: widely used in machinery.
3:Bore size:10mm.
4:Long service of life.

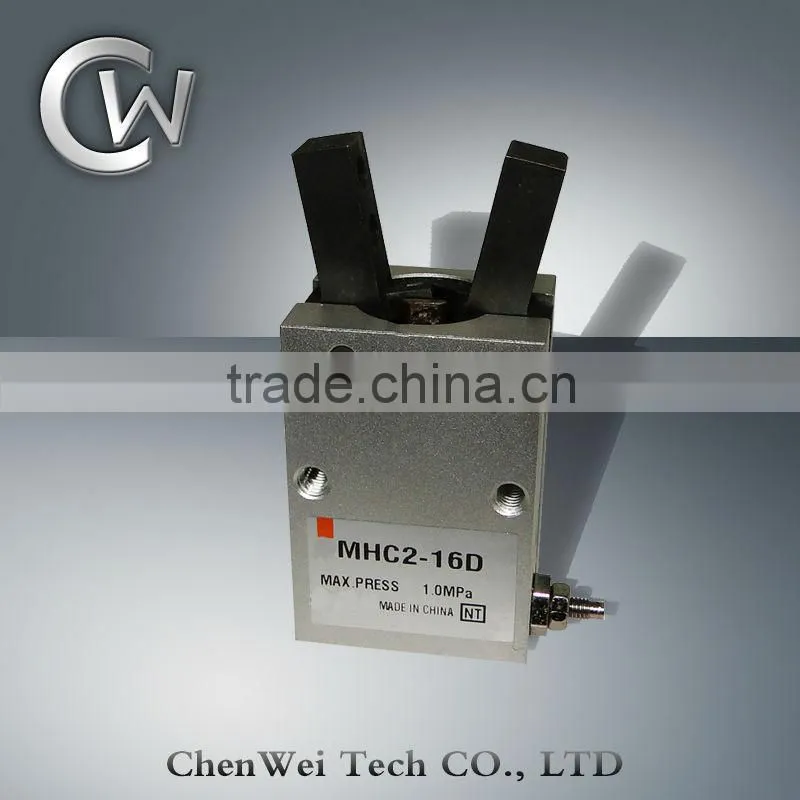

MHC2-16 Air Gripper Cylinder-SMC Type Gripper
Features:
1.Same dimensions and sizes as SMC air gripper cylinder.
2.Standard design,simple structure,low starting pressure,smooth motion.
3.Precision grinding piston rod to guarantee long working lifetime.
4.Bore size:10mm,16mm,20mm,25mm
5.Long service of life, easy to control and maintain.

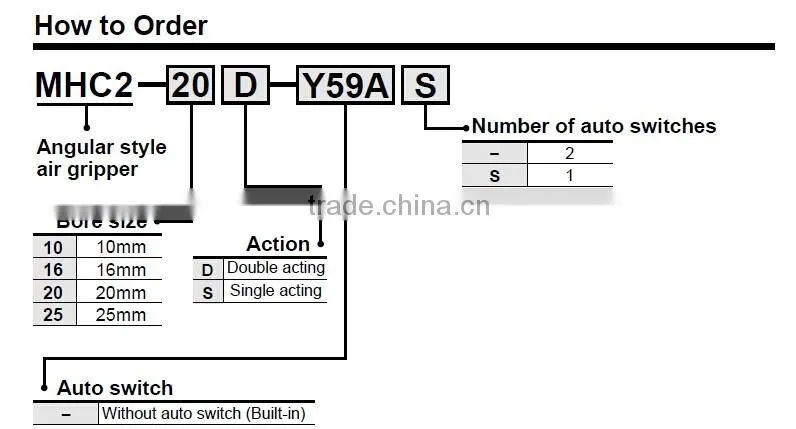

How To Order:
Specification:
Boresize (mm) |
10 |
16 |
20 |
25 |
|
Fluid |
Air |
||||
Action |
Double acting, Single Acting |
||||
Operating pressure |
Double Acting |
0.1to 0.6 Mpa |
|||
Single Acting |
0.25 to 0.6 Mpa |
||||
Ambientand fluid temperature |
–10 to 60°C |
||||
Repeatability |
±0.1mm |
||||
Max.operating frequency |
180 c.p.m. |
||||
Cushion |
Rubber bumper (Standard, With stroke adjuster) |
||||
Lubrication |
NoTRequired |
||||
Auto Swith (Option) |
Solide state switch (3-wire, 2-wire) |
||||
Port size |
M3x 0.5 |
M5x 0.8 |
|||
Model:
| Action | Model | Bore size(mm) | Holding momen (effective value) | Operating angle (both sides) | Weight (g) |
| Double Acting | MHC2-10D | 10 | 0.1 | 30°to -10 ° | 39 |
| MHC2-16D | 16 | 0.39 | 91 | ||
| MHC2-20D | 20 | 0.7 | 180 | ||
| MHC2-25D | 25 | 1.36 | 311 | ||
| Single Acting | MHC2-10S | 10 | 0.07 | 39 | |
| MHC2-16S | 16 | 0.31 | 92 | ||
| MHC2-20S | 20 | 0.54 | 183 | ||
| MHC2-25S | 25 | 1.08 | 316 |
Other Pneumatic Air Gripper Cylinders are also available for you:
MHZ2 series Air Gripper
MHL2 series Air Gripper
MHY2 series Air Gripper
MHS2 series Air Gripper
MHT2 series Air Gripper
