Specifications
1,MHL2-20 Parallel Style Wide Opening Air Gripper2,Long stroke.
3,1unit can handle workpieces with various diameter.

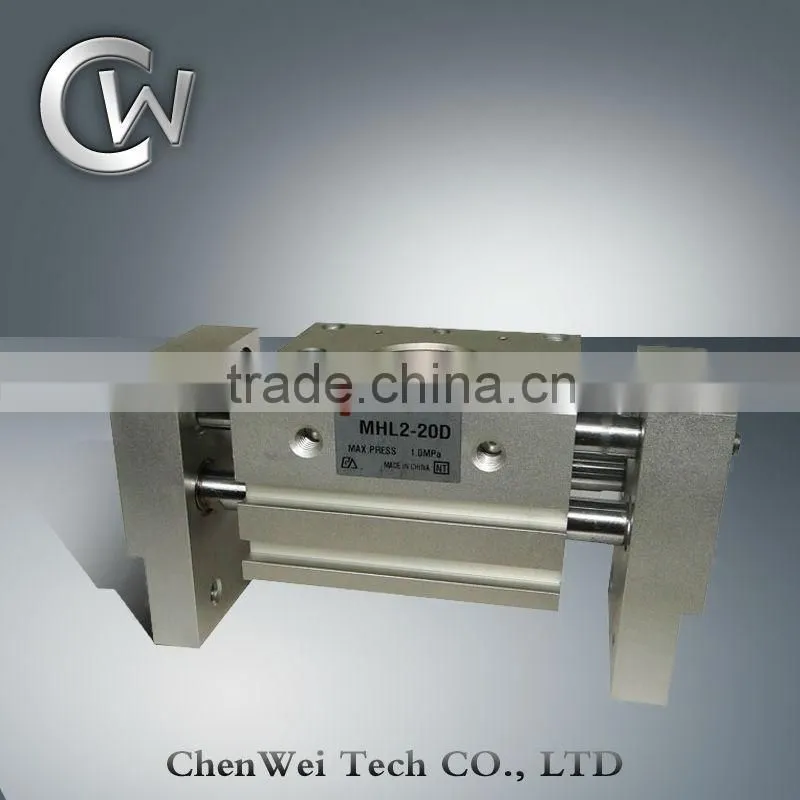

MHL2-20 Parallel Style Wide Opening Air Gripper
Features:
1) Long stroke.
2) One unit can handle workpieces with various diameters.
3) A large amount of gripping force is provided through the use of a double piston mechanism,while maintaining a compact design.
4) Double end type oil-impregnated resin bearings with a metal backing are used for all shafts.
5) Built-in dust-protection mechanism.
6) A high degree of freedom for mounting.
7) Auto Switch mountable.
How To Order:
Specification:
Bore size (mm) |
10 |
16 |
20 |
25 |
32 |
40 |
Fluid |
Air |
|||||
Action |
Doubleacting |
|||||
Operatingpressure (Mpa) |
0.15to 0.6 Mpa |
0.1to 0.6 |
||||
Ambientand fluid temperature |
–10 to 60°C |
|||||
Repeatability |
±0.1mm |
|||||
Effective gripping force (N) |
14 |
45 |
74 |
131 |
228 |
396 |
Cushion |
Rubberbumper (Standard, With stroke adjuster) |
|||||
Lubrication |
Non-lube |
|||||
Strokelength tolerance |
+1or 0 mm |
|||||
Port size |
M5x 0.8 |
Rc1/8, NPT 1/8, G 1/8 |
||||
Model:
Other Pneumatic Air Gripper Cylinders are also available for you:
MHZ2 series Air Gripper-SMC Type.
MHL2 series Air Gripper-SMC Type.
MHY2 series Air Gripper-SMC Type.
MHS2 series Air Gripper-SMC Type.
MHT2 series Air Gripper-SMC Type.
