9inch Truck Parking Rear View System :

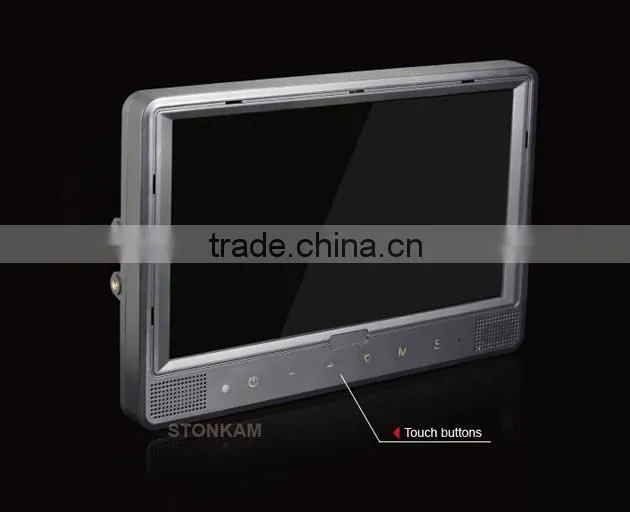

Touch button monitor features:
1.9inch digital lcd monitor
2.Distance label can be turned on and off and adjusted up and down, left and right according to the user's demand
3.Use All touch buttons and support remote control function
4.Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and saved) 5.Power supply for camera, easy installation.
6.Wide voltage input: support 12V and 24V system
7.Picture image may be adjusted for horizontal or vertical viewing
8.Auto scan; the scanning function of each channel can be set to turn on and off separately, scan time (time for switching to other channel) can be adjusted from 1 to 90S
Waterproof Car Rear View Camera Features:
1.Camera angle is adjustable
2.P rating : IP69K
3.Wider viewing angle: 150 degrees
4.Working temperature: -20°C ~ 70°C
5.Mirror/Normal switch is optional
6.Reversing grid is optional
7.Night vision distance: 10m
8.With audio
PC1089 Features:
1.Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089K
2.Wide power supply input: 8V ~32V;
3.Working temperature: -40°C~70°C.
4.With infrared lights;
5.Night vision can auto switch to B/W mode. Good night vision performance, small noise and no color aberration.
6.IR-CUT optional, effectively avoid color aberration in daylight. eg. shooting green plant in high fidelity in the daylight.
7.External mirror and normal image adjustable, audio optional, and P/N available.
1/3'' SHARP CCD
Image device:1/3 SHARP CCD
TV System:PAL/NTSC
Effective Pixels:512*582pixels/512*492pixels
Sensing Area:4.9mm*3.7mm
Scanning System:2:1 Interlace
Sync. System:Internal
Resolution:420L
Horizontal Sync:15.625KHz/15.734KHz
Vertical Sync:50Hz/60Hz
Minimum Illumination:0LUX/F=1.2with IR
Microphone:Optional
Video Output:1.0Vp-p,75Ohm
Gamma Consumption:0.45
AGC:Auto
Signal to noise ratio:>48dB
White balance:Auto
Electronic Shutter:1/50(PAL),1/60(NTSC)~1-10,000S
Backlight Compensation:Auto
Current Consumption: max current 200MA
Power Supply:DC12V
Operating Temperature:-20°C~70°C,max humidity 95%
Storage Temperature:-40°C~80°C, max humidity 95%
Lens:f=2.8mm/2.2mm,F=2.0
Lens Angle:120°/150°

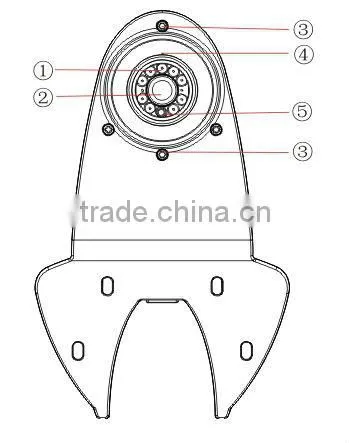

| 1 | 9 lamps |
| 2 | Camera lens |
| 3 | Sphere angle screws |
| 4 | Microphone hole |
| 5 | LDR |
