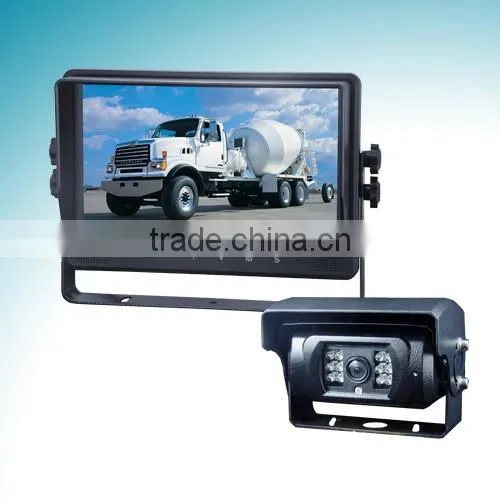

Help Center9 Inch Reversing Camera System for Trucks
Related Products
-
7 Inch Digital Car Monitor Backup Camera SystemNegotiableMOQ: 1 Piece -
7 Inch Digital Car Monitor Backup Camera SystemNegotiableMOQ: 1 Piece
-
7" Rear View System With Car MonitorNegotiableMOQ: 1 Piece
-
Rear View System With 5.6 Inch Touch Buttons Car MonitorNegotiableMOQ: 1 Piece
-
5.6-inch Digital Rear View Car Monitor With Touch ButtonsNegotiableMOQ: 1 Piece
Reversing Camera System features:
Distance label can be turned on and off and adjusted up and down, left and right according to the user's demand
Use all-touch buttons and support remote control function
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and saved)
Power supply for camera, easy installation.
Wide voltage input: support 12V and 24V system
Picture image may be adjusted for horizontal or vertical viewing
Auto scan; the scanning function of each channel can be set to turn on and off separately, scan time (time for switching to other channel) can be adjusted from 1 to 90S

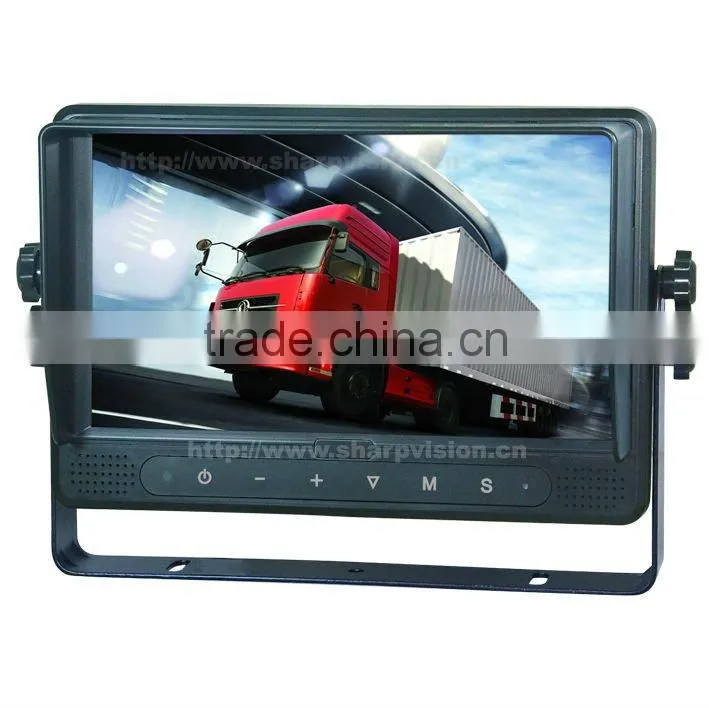

9-inch LCD digital display(MO-138D)
Shatterproof standard:2.83G
Working condition: Performs in rugged conditions; operating temperature: -20°C~70°C
TV system: PAL/NTSC/AUTO
Language system: 8 languages selectable
Video input: 13PIN:support 3 audio inputs
22PIN:support 4 audio inputs, 1 audio output, and 1 video input
Distance label: can be adjusted up and down, left and right.
Auto trigger:3 or 4 camera trigger wires,once triggered, automatically switches to its corresponding camera
Frame ratio: 16:9/4:3
Dot pitch: 0.0825(H)×0.2327(V)
Resolution: 480(H)×272(V)
Brightness: 350 cd/m²
Contrast: 500:1
Viewing angle:U:50°,D:70°, L/R:70°
Power consumption: 6W
Power supply: DC:10-32V
Operating temperature: -20°C~+70°C
Storage temperature: -30°C~+80°C
| 1 | IR remote control receiver head |
| 2 | Power switch |
| 3 | Volume/Value down |
| 4 | Volume/Value up |
| 5 | Menu selection down selector |
| 6 | Menu |
| 7 | Channel switch |
| 8 | Light Sensitive Resistor IC |

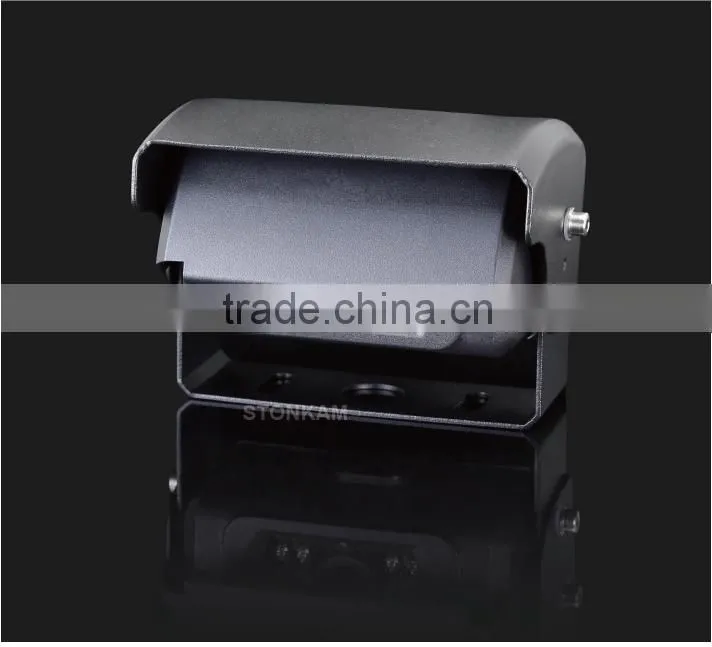

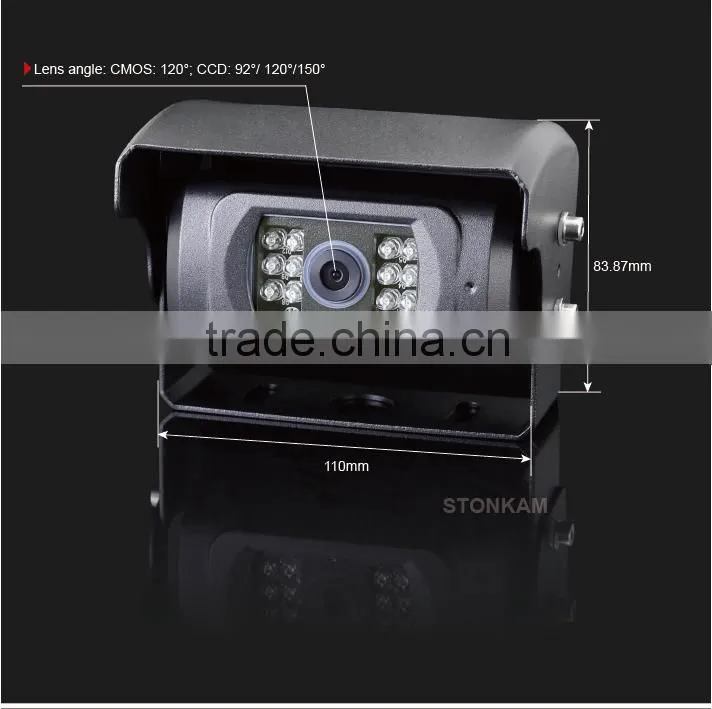

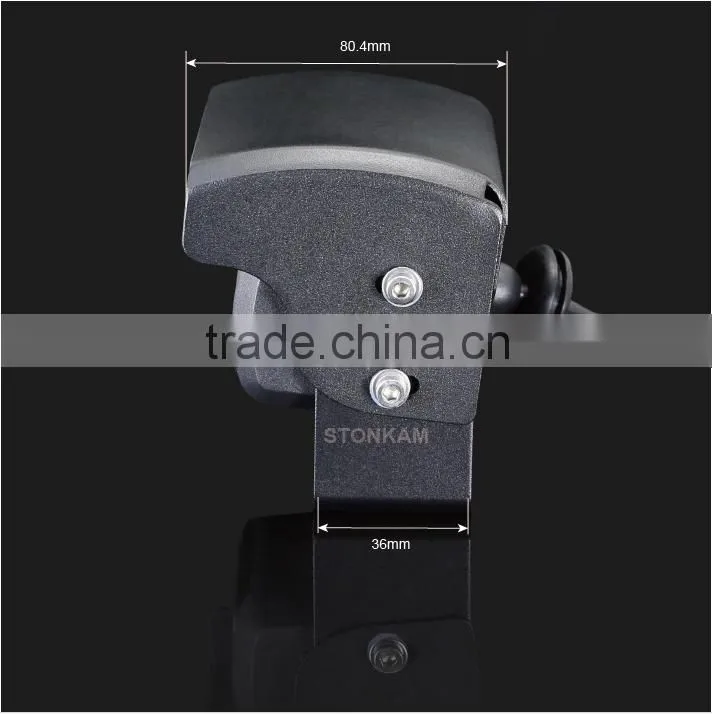

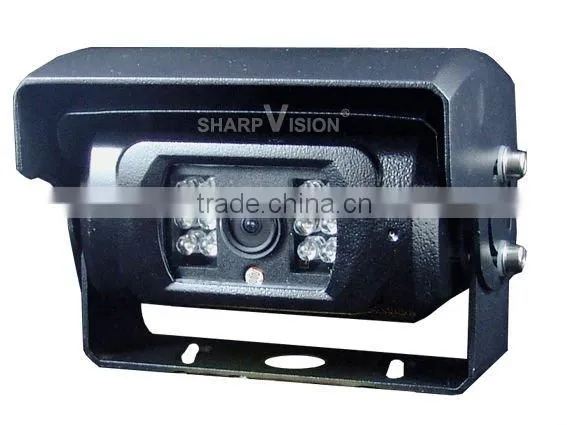

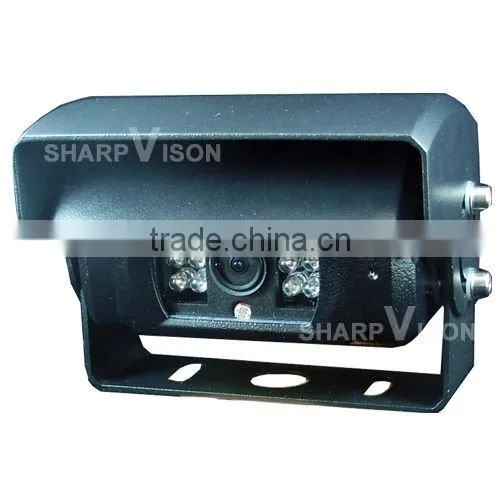

Auto shutter camera(CW-635M)
Backup camera with auto shutter
Super wide angle (180°)
Automatic heating when the camera's running temperature is below 10°C(optional)
Performs in rugged conditions
Distance label selectable to be open or closed
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: approx. 10m
Infrared LED light: 12
Mirror/ Normal image switch (depending on the chips)
