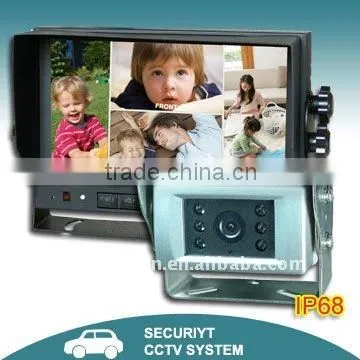

Help Center7 Inch Color Digital CCTV System With Quad View Monitor
Related Products
-
Car Rear View Camera System With 5-inch Digital TFT LCD MonitorNegotiableMOQ: 10 Pieces -
5.6-inch Digital Backup System, Vehicle Camera SystemNegotiableMOQ: 1 Piece
-
Rear View System With 5.6 Inch Touch Buttons Car MonitorNegotiableMOQ: 1 Piece
-
5.6-inch Digital Car Video Camera SystemNegotiableMOQ: 1 Piece
-
7 Inch Digital Color LCD Reversing Camera SystemNegotiableMOQ: 1 Piece
7 Inch Digital Color LCD Car Monitor Quad System
7 Inch Digital Color LCD Quad monitor.
Single, dual , triple , quad image and PIP functions available.
Power output from the monitor being 4X300mA.
1 DVD/AV input and 4 camera inputs; camera title can be set: (maximum 8 characters).
The display effect, volume and mirror function for each camera can be separately set up.
The priority of quad picture and dual picture can be set up.
With trigger wire for dual picture, the relative cameras can be combined optionally.
Camera's name can be set up: 8 characters the longest.
The boot-strap display can be set as your perfect display mode.
Four trigger wires for cameras.
Once a trigger wire is activated, image automatically switches to its relative camera.
Auto scanning and timed image switch.
Image of monitor auto switches to the working channel.
Operates from 10~32V.
Backup distance grid & left / right-turning indicator arrow available.
Applicable to both indoor / outdoor security systems and vehicle rear view systems.
New style, multiple functions, easy installation and convenient operation.

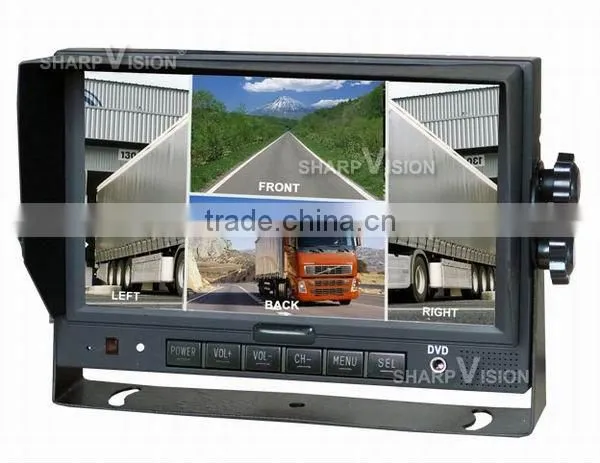

7″COLOR TFT LCD Quad Monitor- MO-136D
1. Dimension: 7″TFT-LCD color monitor with built-in quad
2. TV System: NTSC/PAL .
3. Resolution: 800x3(RGB)X480
4. Brightness: 400cd/m²
5. Contrast: 500 :1
6. Viewing angle: U: 50°/ D: 60°, R/L: 70°
7. Aspect ratio: 16:9
8. Operating Temperature: -10°C~+65°C
9. Storage Temperature: -30°C~+80°C
10. Power consumption: max. 25W
11. Power for cameras: max. 4×300mA, 12V
12. Video inputs: 4 video inputs for cameras: peak value: 1Vp-p, impedance: 75 ohm.
1 DVD input: peak value: 1Vp-p, impedance: 75 ohm.
13. Audio inputs: 4 audio inputs for cameras: peak value: 1Vp-p, impedance: 4.7K ohm.
1 DVD input: peak value: 1Vp-p, impedance: 4.7K ohm.
14. Video outputs: 1 REC video output: peak value: 1Vp-p, impedance: 75 ohm.
1 LIVE video output: peak value: 1Vp-p, impedance: 75 ohm.
15. Audio output: 1 REC audio output: peak value: 1Vp-p, impedance: 4.7K ohm.

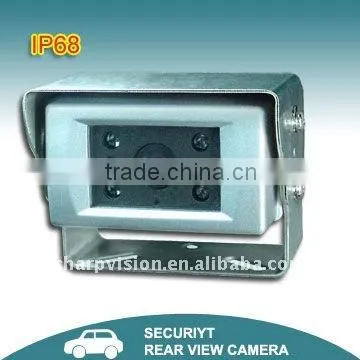

Features of camera:
Firm structure - aluminum-alloy housing, stainless-steel mount and sun-shield
Night-vision function (6 infrared lights)
Smaller size for more convenient installation
1/3” SHARP COLOR CCD SENSOR SPECIFICATIONS
Image Device: 1/3” SHARP CCD
TV System: PAL/NTSC
Effective Pixels: 512*582 pixels / 512*492 pixels
Sensing Area: 4.9mm*3.7mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 420TV Lines
Horizontal Sync. Frequency: 15.625KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz
Minimum Illumination: 0 LUX / F=1.2 (with IR)
Microphone: Optional
Video Output: 1.0 Vp-p, 75 Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50 (PAL), 1/60 (NTSC) ~ 1-10,000 Second
BLC: Auto
Current Consumption: Max. 150 mA
Power Supply: DC12V
Operation Temperature: -20°C~+70°C, RH 95% Max.
Storage Temperature: -40°C~+80°C, RH 95% Max.
Lens: f=2.8mm / 3.6mm, F=2.0
Lens Angle: 120°/92°
