Features of digital monitor:
7 Inch Digital Color LCD Quad monitor.
Single, dual , triple , quad, trefoil, Y-split image and PIP functions available.
Multi-languages of display available: English, French, Spanish, Dutch, German, Italian.
Power output from the monitor being 4X300mA.
1 DVD/AV input and 4 camera inputs; camera title can be set: (maximum 8 characters).
The display effect, volume and mirror function for each camera can be separately set up.
The priority of quad picture and dual picture can be set up.
With trigger wire for dual picture, the relative cameras can be combined optionally.
Camera's name can be set up: 8 characters the longest.
The boot-strap display can be set as your perfect display mode.
Four trigger wires for cameras.
Once a trigger wire is activated, image automatically switches to its relative camera.
Auto scanning and timed image switch.
Image of monitor auto switches to the working channel.
Operates from 10~32V.
Backup distance grid & left / right-turning indicator arrow available.
Applicable to both indoor / outdoor security systems and vehicle rear view systems.
New style, multiple functions, easy installation and convenient operation.

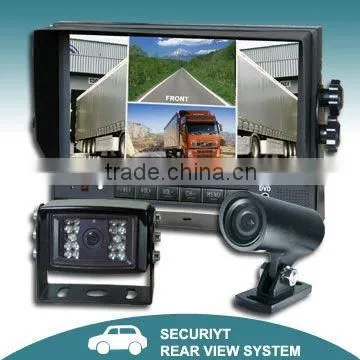

7″COLOR TFT LCD Quad Monitor- MO-136D:
1. Dimension: 7″TFT-LCD color monitor with built-in quad
2. TV System: NTSC/PAL .
3. Resolution: 800x3(RGB)X480
4. Brightness: 400cd/m²
5. Contrast: 500 :1
6. Viewing angle: U: 50°/ D: 70°, R/L: 70°
7. Aspect ratio: 16:9, dot pitch: 0.0642(W) × 0.1790(H)
8. Operating Temperature: -20°C~+70°C
9. Storage Temperature: -30°C~+80°C
10. Power consumption: max. 25W
11. Power for cameras: max. 4×300mA, 12V
12. Video inputs: 4 video inputs for cameras: peak value: 1Vp-p, impedance: 75 ohm.
1 DVD input: peak value: 1Vp-p, impedance: 75 ohm.
1 AUX audio input: peak value: 1Vp-p, impedance: 4.7K ohm
13. Audio inputs: 4 audio inputs for cameras: peak value: 1Vp-p, impedance: 4.7K ohm.
1 DVD input: peak value: 1Vp-p, impedance: 4.7K ohm.
14. Video outputs: 1 REC video output: peak value: 1Vp-p, impedance: 75 ohm.
1 LIVE video output: peak value: 1Vp-p, impedance: 75 ohm.
15. Audio output: 1 LIVE audio output: peak value: 1Vp-p, impedance: 4.7K ohm.
Features of camera:
Backup camera
Super wide angle (180° )
Automatic heating when the camera's running temperature is below 10°C(optional)
Performs in rugged conditions
Distance label selectable to be open or closed
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: approx. 10m
Infrared LED light: 12
Mirror/ Normal image switch (depending on the chips)
Pannel:
Dimension:
Car camera:CW-087
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: 15m
Infrared LED light: 18
Mirror/ Normal image switch (depending on the chips)
Distance label selectable to be open or closed
