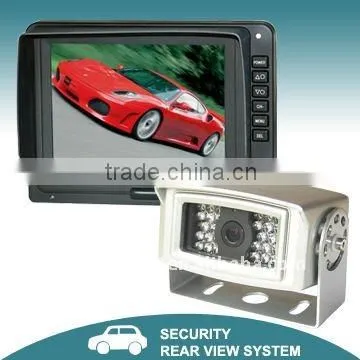

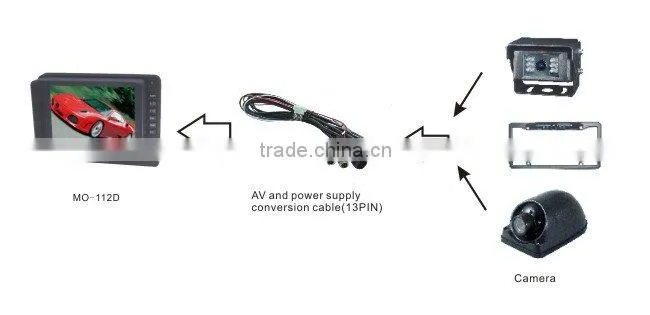

Car rear view camera system with 5-inch Digital TFT LCD Monitor
Features of monitor (MO-112D)
5 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image adjustable for Horizontal, Vertical, Mirror and Normal viewing
3 languages selectable for user operation
Automatic backlighting for buttons.
Full-function remote control.
Multiple video formats available: AUTO/ PAL/ NTSC.
Up to 3 AV inputs.
On-board speaker.
Operates from 12 - 32V. Supports 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
Even if it is mirror image, OSD keeps normal status.
Camera features(CW-086):
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: 22m
Infrared LED light: 28
Mirror/ Normal image switch (depending on the chips)
Distance label selectable to be open or closed
5" Digital TFT-LCD Monitor Specifications
Product: 5" Digital TFT- LCD Color monitor.
Audio output: 1W.
Loudspeaker: one 4.0cm round loudspeaker.
Power supply: Automobile storage battery (12-32V).
Power consumption: about 7 W .
Outer dimension: 147.6mm (W) × 109mm (H) × 26.5mm (T) (without flush mount),
165mm (W) × 126mm (H) × 29.2mm (T) (with flush mount).
Dot pitch: 0.0529(H) × 0.1587 (V).
Resolution: 640 x 3(RGB) x 480 .
Color depth:24 bit.
Display colors:16.7M dithering.
Contrast: 500:1.
Brightness: 200cd/m2.
Viewing angle: U: 50 / D: 70, R/L: 70.
Operating temperature: -20~+70ºC,RH90%.
Storage temperature: -30~+80ºC,RH90%.
