9 Inch Lcd Bus Monitor With 4 AV Input

9 Inch Lcd Bus Monitor With 4 AV Input thumbnail-1
9 Inch Lcd Bus Monitor With 4 AV Input photo-1
Negotiable MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Screen Size:
Other, 9"
Screen Type:
16:9
Placement:
Dashboard
Contact Supplier Request Quote Chat Now
Sharpvision Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Screen Size Other, 9"
Screen Type 16:9
Placement Dashboard
Certification TUV
Car Make all kinds
Place of Origin Guangdong, China
Brand Name OEM
Model Number MO-146

Product Description



bus monitor  features:

  • Distance label can be turned on and off and adjusted up and down, left and right according to the user's demand
  • Use all-touch buttons and support remote control function
  • Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and saved)
  • Power supply for camera, easy installation.
  • Wide voltage input: support 12V and 24V system
  • Picture image may be adjusted for horizontal or vertical viewing
  • Auto scan; the scanning function of each channel can be set to turn on and off separately, scan time (time for switching to other channel) can be adjusted from 1 to 90S

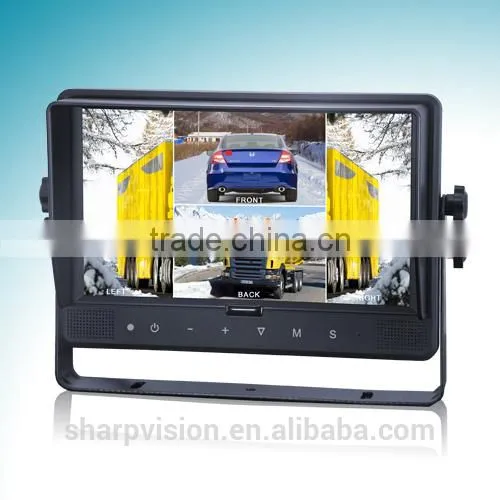

9 inches Digital Quad Monitor MO-146D

  • 1. Dimension:9”TFT-LCD color digital monitor with built-in quad.
  • 2. TV System: NTSC/PAL
  • 3. Resolution: 800 x 3(RGB)x480(H)
  • 4. Brightness: 400cd/m²
  • 5. Contrast: 500:1
  • 6. Viewing angle: U:50°/D:70°;R/L:70°
  • 7. Aspect ratio: 16:9
  • 8. Operating Temperature: -20°C - +70  °C
  • 9. Storage Temperature: -30°C - +80  °C
  • 10. Power consumption:max.25W
  • 11. Power for cameras:max. 4X300mA,12V
  • 12. Input voltage:10-32V
  • 13. Video inputs:4 video inputs for cameras:peak value:1Vp-p,impedance:75ohm
  • 14. Audio inputs:4 audio inputs for cameras:peak value:1Vp-p,impedance:4.7Kohm
  • 1 AUX audio input.
  • 15. Video outputs:1 REC video output: peak value:1Vp-p,impedance:75ohm
  • 1 LIVE video output: peak value: 1Vp-p, impedance: 75 ohm.
  • 16. 16.Audio output: 1 LIVE audio input: peak value:1Vp-p,impedance:4.7Kohm







9 inch lcd bus monitor with 4 AV input
