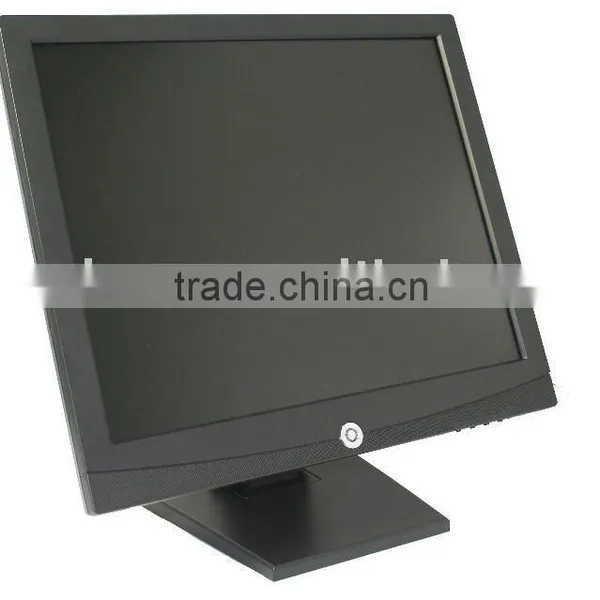

19" Touch Screen LCD Monitor (Plastic Case)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Screen Size:
Other, 19"
Screen Type:
4:3
Placement:
Other, Stand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18.5" Touch Screen LCD Monitor (Plastic Case)NegotiableMOQ: 1 Set -
15" Chassis Case LCD MonitorNegotiableMOQ: 1 Unit
-
12.1" Chassis Case LCD MonitorNegotiableMOQ: 1 Unit
-
12.1" Chassis Case LCD MonitorNegotiableMOQ: 1 Unit
-
9" Open Type Module (OTM) Touch Screen Industrial LCD DisplayNegotiableMOQ: 1 Set
Screen Size
Other, 19"
Screen Type
4:3
Placement
Other, Stand
Combination
Touch Screen
Certification
CF FCC
Place of Origin
Taiwan, China
Brand Name
Thunder
Model Number
190ALXX-1210
Specifications
19" Touch Screen Embedded LCD Monitor1. Resistive/Capacitive/SAW
2. Windows/Linux
3. VESA mounted
4. High Brightness Option
| 19" Touch Screen LCD Monitor / 190ALXX-1210 | ||
| Panel | Cell Type | Color active matrix TFT (Thin-Film-Transistor)LCD panel |
| Pixel Arrangement | RGB vertical stripe | |
| Glass Surface | Anti-Glare coating | |
| Pixel number | 1280(H) x 1024(V) | |
| Pixel Pitch | 0.294(H) x 0.294(V) mm | |
| Display Size | 19" viewable diagonal area | |
| Active Area | 376.32(H) x 301.06(V) mm | |
| Color Depth | 16.2M colors | |
| Light Source | Long life, 50,000 hrs (typ) | |
| Brignthess | 400 cd/m2 (typ) | |
| Contrast Ratio | 550 : 1 | |
| Viewing Angle | horizontal(typ)(L ~ R : - 70o ~ + 70o) | |
| vertical(typ)(U ~ D : - 65o ~ + 70o) | ||
| Video | Analog RGB(0.7/1.0 Vp-p, 75 ohms) | |
| Sync | Composite Sync | |
| Frequency | Fn : 30 - 82 Khz , Fv : 60 - 75 Hz | |
| Supported | 70 / 75 Hz | |
| Resolution | 1024 x 768@60 / 70 / 75 Hz | |
| 800 x 600@60 / 70 / 75 Hz | ||
| 640 x 480@60 / 70 / 75 Hz | ||
| 720 x 400@60 / 70 Hz | ||
| Recommended | Hz | |
| Control | Front Panel | Auto Adjust, Brightness, Contrast, H-Position, V-Position |
| Winsticker (OSD) | Phase, Color, Default,Volume,Language,Memory Recall | |
| Power | Input Voltage | AC: 90 to 260VAC, 50 / 60 Hz DC:12V / 1.2A |
| Power Rating | Operation | 55 watt |
| Off | < 5 watt | |
| Audio | 2W x 1 Speaker | |
| Operating Condition | Temperature | -10 ~ 65 degree C |
| Humidity | 10% ~ 90%(no condensation) | |
| Storage Conditon | Temperature | - 30 ~ 70 degree C |
| Humidity | 10% ~ 90%(no condensation) | |
| Dimensions | Physical | 264x225x40.5 mm (W x H x D) |
| Weight | N.W. / G.W. | 4Kg / 5Kg |
| Options | Video-In | 1 x RCA-Connector, 1 x S-Video |
| Touch Screen | 5-wiresResistive type, USB OR RS-232 Interface | |
