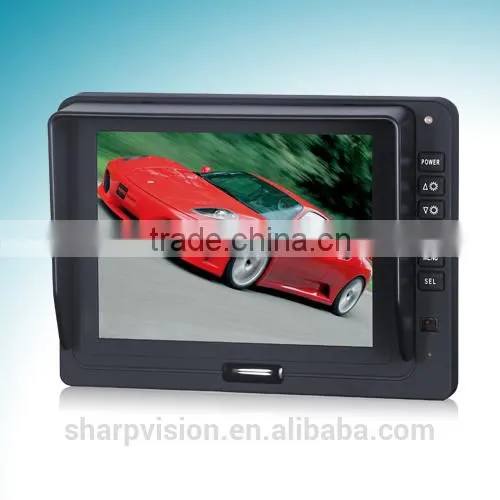

5 Inch Color Digital TFT LCD Monitor

5 Inch Color Digital TFT LCD Monitor Features

• 5 Inch TFT LCD color monitor with digital screen
• TFT LCD monitor with wide view angle and high resolution display.
• Picture image adjustable for Horizontal, Vertical, Mirror and Normal viewing
• 3 languages selectable for user operation
• Automatic backlighting for buttons.
• Full-function remote control.
• Multiple video formats available: AUTO/ PAL/ NTSC.
• Up to 3 AV inputs.
• On-board speaker.
• Operates from 10 - 32V. Supports 12V or 24V automobile battery.
• Automatically switches to back-up, left or right side camera views.
• Even if it is mirror image, OSD keeps normal status.

5" Digital TFT-LCD Monitor Specifications

• Product: 5" Digital TFT- LCD Color monitor.
• Audio output: 1W.
• Loudspeaker: one 4.0cm round loudspeaker.
• Power supply: Automobile storage battery (10-32V).
• Power consumption: about 5 W .
• Outer dimension: 147.6mm (W) × 109mm (H) × 26.5mm (T) (without flush mount),
• 165mm (W) × 126mm (H) × 29.2mm (T) (with flush mount).
• Dot pitch: 0.0529(H) × 0.1587 (V).
• Resolution: 640 x 3(RGB) x 480 .
• Color depth:24 bit
• Display colors:16.7M dithering.
• Contrast: 500:1.
• Brightness: 200cd/m2.
• Viewing angle: U: 50 / D: 70, R/L: 70.
• Operating temperature: -20~+70ºC,RH90%.
• Storage temperature: -30~+80ºC,RH90%.
