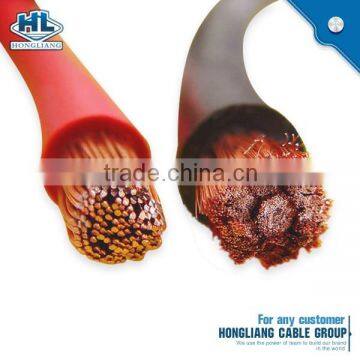

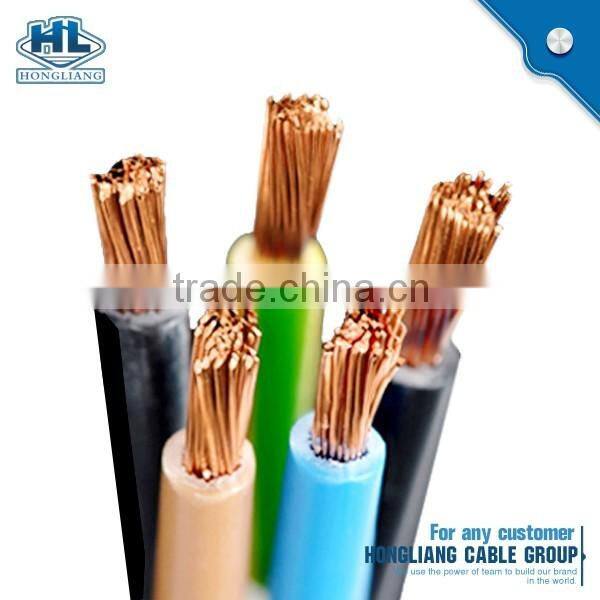

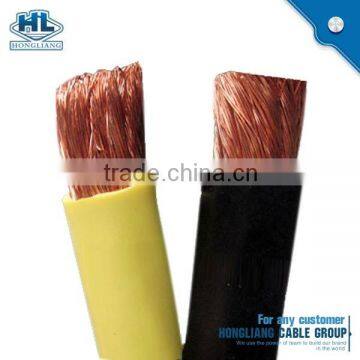

Help CenterH05G-U / H05G-K / H07G-U / H07G-R / H07G-K Single Conductors Rubber Jacket
Related Products
-
750V Rubber Flexible Welding Cable VDE Approved Rubber DIN ROHS CE 10 16 25 35 50 70mm2US$ 0.1 - 99MOQ: 100 Meters -
YC YCW 450/750V Heavy Model Rubber Sheath Flexible Cable for Welding MachineUS$ 0.1 - 99MOQ: 100 Meters
-
YQ YQW Welding Cable 50mm2 70mm2 Rubber Sheath Electric Cable Wire IEC81 82US$ 0.1 - 99MOQ: 100 Meters
-
YZ YZW Synthetic Rubber Insulated Sheathed for Welding Machine Electric Cable Wire IEC 300/500V 450/750VUS$ 0.1 - 99MOQ: 100 Meters
-
YC YCW 450/750V Heavy Model Rubber Sheath Flexible Rubber Cable for Welding Machine EPR/SBR 3*185+70US$ 0.1 - 99MOQ: 100 Meters
Technical data
Heat-resistant (+120°C/+248°F) rubber-insulated cable to DIN VDE 0282 part 7 and HD 22.7 S2
Max. permissible Operating Temperature
at conductor +110°C/+230°F
Lowest Ambient Temperatures
Flexing
Up to -25°C/-13°F
Fixed Installation
Up to -40°C /-40°F
Nominal Voltage
H05G U0/U 300/500 V
H07G U0/U 450/750 V
Test Voltage
H05G 2000 V
H07G 2500 V
Minimum Bending Radius
Approx. 7x cable
Construction
Bare copper conductor to DIN VDE 0295 and IEC 60228, BS 6360 and HD 383
single wire, solid: class 1
multi stranded wires: class 2
fine wires: class 5
Rubber conductor insulation compound type EI3 (EVA) to DIN VDE 0282 part 7
(= DIN VDE 0207 part 20)
Separating layer over bare conductor (for tinned conductor is optional)
Conductor identification to DIN VDE 0293
Standard color: Black
Application
For inside wiring of switch boards and distributors as well as for operating parts such as in or on lights, for the connection of electric heaters with a nominal voltage up to 1000 V alternating voltage or up to 750 V under direct voltage against ground.
The cables are allowed for laying in tubes, on and under plaster.
H05G-U / H05G-K / H07G-U / H07G-R / H07G-K Single Conductors Rubber Jacket
In Wooden drum, Iron drum, Iron wooden drum, Steel drum or according to your requirement.
Comapny Information:
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1988, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
