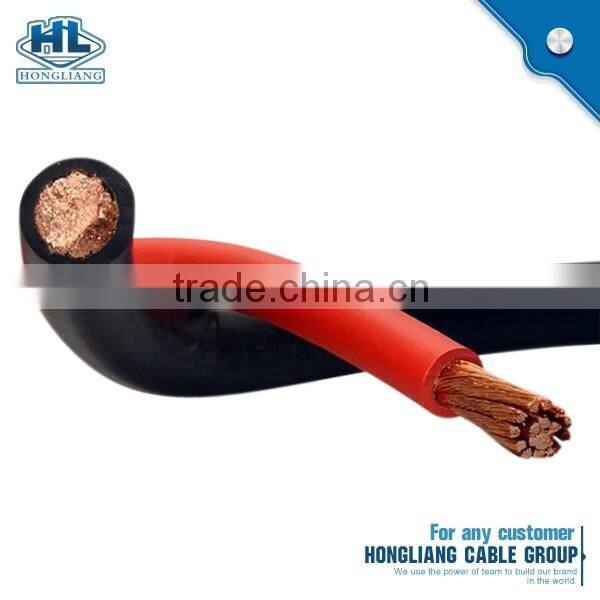

item name : flexible tinned copper wire strand 50mm2 25mm2 16mm2 rubber welding cable.
Standards
BS7919, CENELEC HD22.4 S4
Conductor
Class 5 flexible plain copper
to BS EN 60228:2005 (previously BS6360)
Insulation
EPR (Ethylene Propylene Rubber) Type EI4 to BS7655
Sheath
PCP (Polychloroprene) Type EM2 to BS7655
Voltage Rating 450/750V
Temperature Rating
Conductor operating temperature
-30°C to +60°C (85°C max)
Minimum Bending Radius
Up to 25mm2: 6 x overall diameter
Above 25mm2: 8 x overall diameter
Technical Data
| Nominal Section-Area of Conductor(mm2) | Structure of Conductor | Nominal Thik-ness of Sheath (mm) |
Overall Diameter |
Max. Conductor Resistance at 20º C (Ω /km) |
Approx. Weight (kg/km) | ||
| Core no. /Dia. (no. /mm) | Min. | Max. | YH | YHF | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.128 | 1648.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |

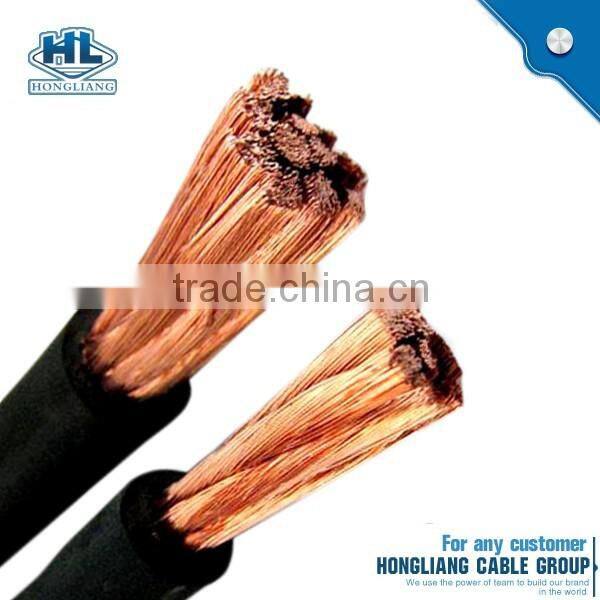

flexible tinned copper wire strand 50mm2 25mm2 16mm2 rubber welding cable.
1.We guarantee to ship goods out 5-10 working days after payment confirmation.
2.If you didn't receive the item after 30 days,please feel free to contact us.We will make all our to resolve the problem.
3. In order to ensure you receive you order tax free upon import, we will declare it as a 'GIFT' with a lower value.
4. Item usually will be sent as gift describe low price to minimize your import tax. Buyer should bear all responsibility fro all extra charges like the import duties,taxes incurred(if any)

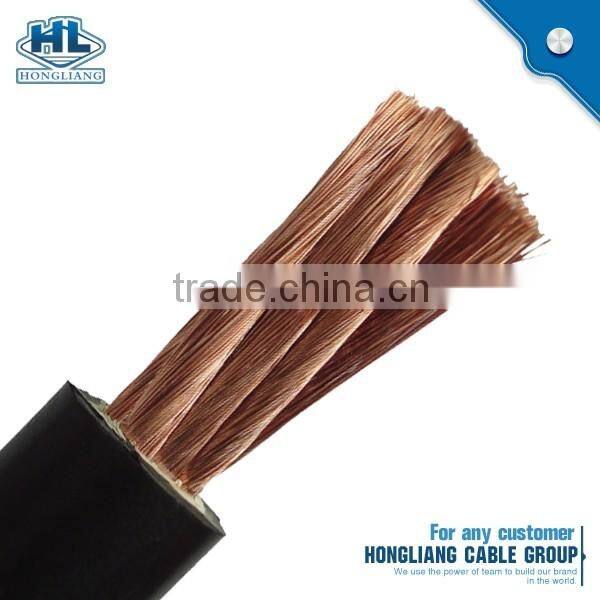

flexible tinned copper wire strand 50mm2 25mm2 16mm2 rubber welding cable .
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Equal and mutual benefit
4)Honesty and profession
IEC standard PVC insulated PVC jacket h07rn-f 2c/3c/4c rubber cable

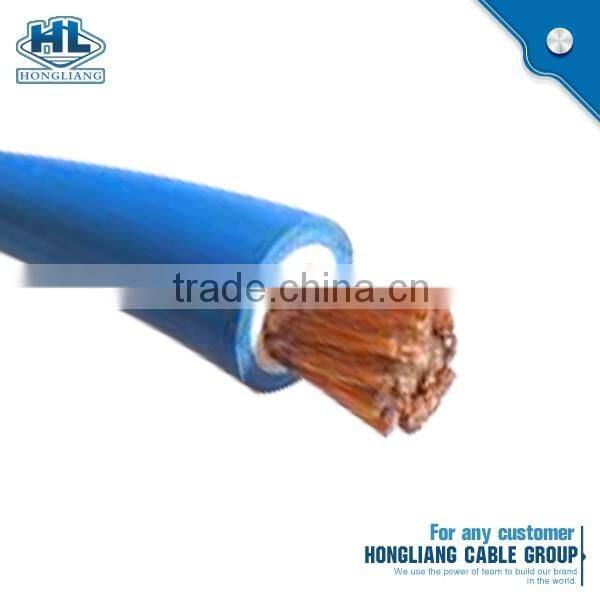

flexible tinned copper wire strand 50mm2 25mm2 16mm2 rubber welding cable .
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1988, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
