SCB Dry Type Indoor Using Low Noise 11KV 400V Step Down Electrical Power Transformer Price.
Free Maintaince IEC approved ONAN power transforma
for this oil type distribution transformer, we can do many voltage ratings and many power capacities, the maximum voltage is 40KV, all the datas can be customized. so, if you need some other voltage rating transformer, pls feel free to contact me, you can contact me here
This series transformer adopt silicon steel sheet iron core which is made of excellent low loss crystal granule. They have the merit of low no-load loss, small no-load current and low noise.
1. The height of sea level is less than 1000m.
2. Highest temperature 40ºC
3. Lowest temperature: -20ºC
4. Maximum daily average temperature: 25ºC
5. Maximum annual mean temperature: 20ºC
6. The relative humidity is less than 95%(when the sir temperature is 25ºC)
7. Install at the site with dust methane, but no explosion water
8. Power supply voltage profile approximate to sine wave
|
Rated capacity |
Voltage Combination |
Connection symbol |
Loss(KW) |
No-load current (%) |
Impedance voltage (%) |
Weight (Kg) | ||||
| (KVA) |
High voltage (KV) |
High voltage tapping range |
Low voltage (KV) |
Load | No-load |
Oil weight |
Overall weight |
|||
| 30 | 10kv | ±5% | 0.4 | Yyn0 | 0.6 | 0.13 | 2.3 | 4 | 75 | 295 |
| 50 | to | or | or | 0.87 | 0.17 | 2 | 88 | 395 | ||
| 63 | 35kv | ±2*2.5% | Dyn11 | 1.04 | 0.2 | 1.9 | 95 | 420 | ||
| 80 | 1.25 | 0.25 | 1.9 | 103 | 480 | |||||
| 100 | 1.5 | 0.29 | 1.8 | 115 | 540 | |||||
| 125 | 1.8 | 0.34 | 1.7 | 130 | 645 | |||||
| 160 | 2.2 | 0.4 | 1.6 | 145 | 740 | |||||
| 200 | 2.6 | 0.48 | 1.5 | 175 | 885 | |||||
| 250 | 3.05 | 0.56 | 1.4 | 195 | 1010 | |||||
| 315 | 3.65 | 0.57 | 1.4 | 230 | 1205 | |||||
| 400 | 4.3 | 0.8 | 1.3 | 255 | 1375 | |||||
| 500 | 5.1 | 0.96 | 1.2 | 285 | 1620 | |||||
| 630 | 6.2 | 1.2 | 1.1 | 4.5 | 350 | 1960 | ||||
| 800 | 7.5 | 1.4 | 1.1 | 405 | 2310 | |||||
| 1000 | 10.3 | 1.7 | 1 | 490 | 2690 | |||||
| 1250 | 12 | 1.95 | 1 | 550 | 3315 | |||||
| 1600 | 14.5 | 2.4 | 0.8 | 625 | 3985 | |||||
| 2000 | 18 | 2.6 | 0.7 | 745 | 4520 | |||||

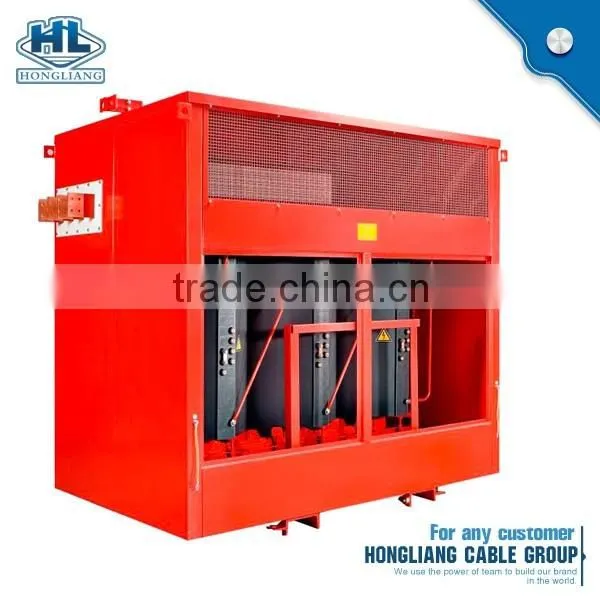

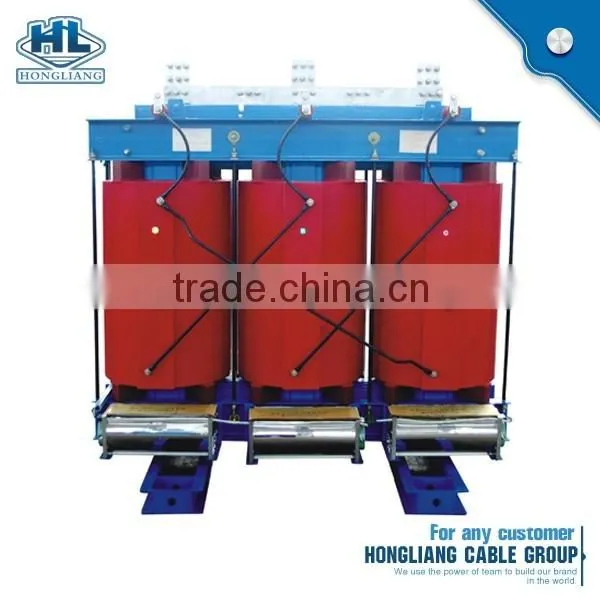

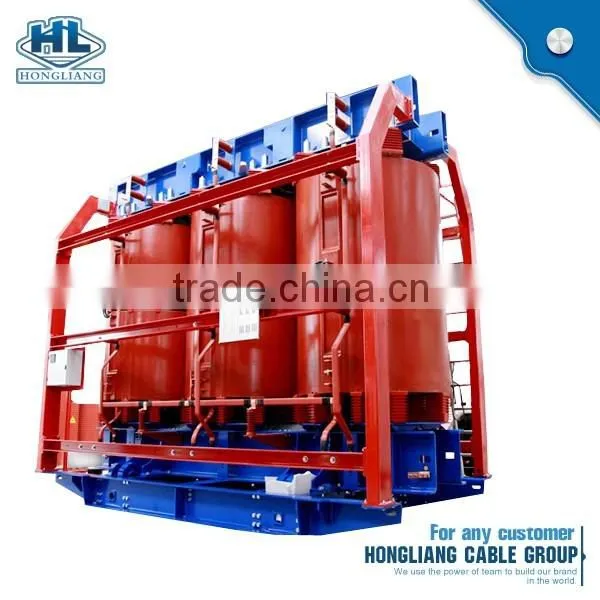

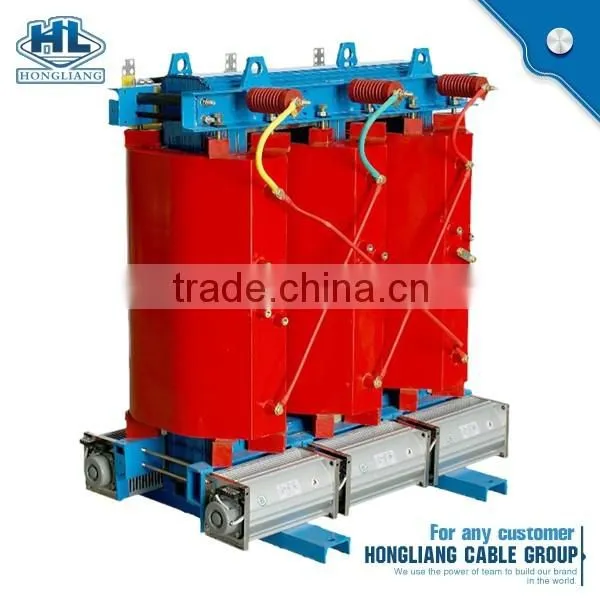

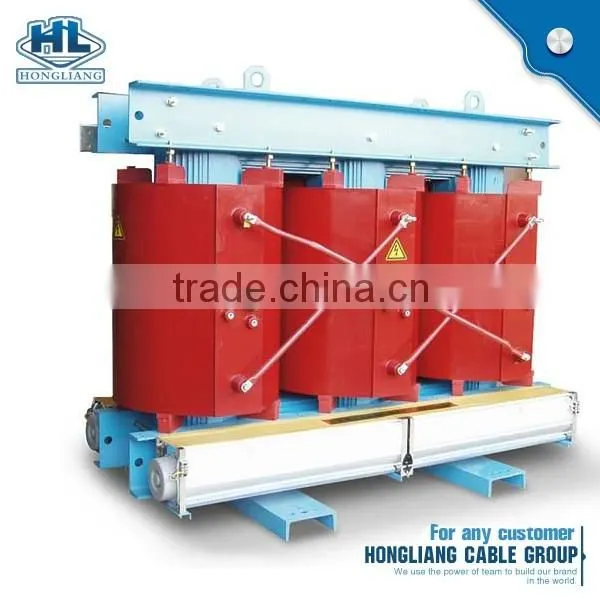

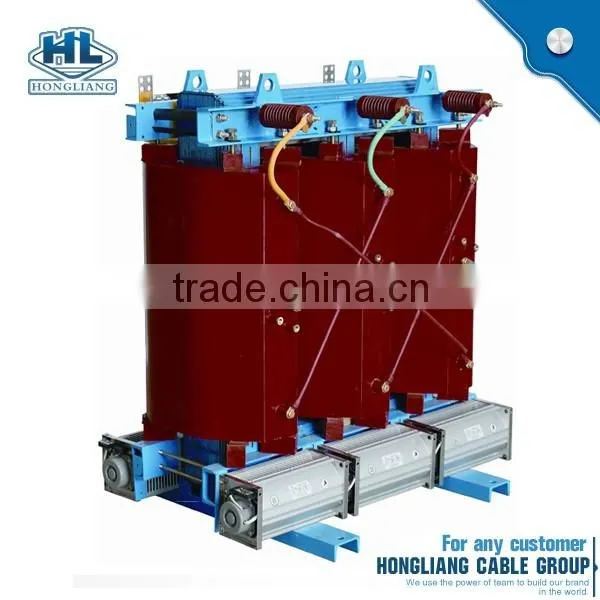

Picture show SCB Dry Type Indoor Using Low Noise 11KV 400V Step Down Electrical Power Transformer Price:
SCB Dry Type Indoor Using Low Noise 11KV 400V Step Down Electrical Power Transformer Price.
Wooden case;One suit, one case.
SCB Dry Type Indoor Using Low Noise 11KV 400V Step Down Electrical Power Transformer Price.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
ables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
SCB Dry Type Indoor Using Low Noise 11KV 400V Step Down Electrical Power Transformer Price.
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
SCB Dry Type Indoor Using Low Noise 11KV 400V Step Down Electrical Power Transformer Price.
