Item name: Copper Core PVC insulated solid copper conductor material electrical wire wholesale .
1. Application of Copper Core PVC insulated solid copper conductor material electrical wire wholesale :
Type: building wire
- Insulating Material:Teflon/PVC/LSZH
- Conductor Material:Copper or Copper Clad Aluminum
Colors: White, Blue, Red, Black, Brown, Yellow, Green, Transparent, Yellow/Green
- Voltage Range:300/500V /450/750V
- Temperature Range:105°c~200°c
- Appliance:For home electric appliances, lighting equipments, mechanical electrical machines and hostile environment.
- OEM accepted
2. Executive standard :
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
| Conductor | Insulation thickness | Overall diameter(approx.) | DC resistance at 20°C | Weight(approx.) | Rated Voltage | |
| Norminal area | Conductor diameter | |||||
| mm2 | mm | mm | mm | Ohm/km | kg/km | V |
| 0.5 | 0.80 | 0.6 | 2.0 | 36.0 | 9.5 | 300/500 |
| 0.8 | 0.98 | 0.6 | 2.2 | 24.5 | 12.4 | 300/500 |
| 1.0 | 1.17 | 0.6 | 2.4 | 18.1 | 15.9 | 300/500 |
| 0.5 | 0.80 | 0.7 | 2.4 | 36.0 | 10.7 | 450/750 |
| 0.8 | 0.98 | 0.7 | 2.6 | 24.5 | 13.6 | 450/750 |
| 1.0 | 1.17 | 0.7 | 2.8 | 18.1 | 17.2 | 450/750 |
| 1.5 | 1.40 | 0.7 | 3.0 | 12.1 | 22.2 | 450/750 |
| 2.0 | 1.60 | 0.8 | 3.4 | 8.86 | 28.8 | 450/750 |
| 2.5 | 1.80 | 0.8 | 3.6 | 7.41 | 34.4 | 450/750 |
| 3.0 | 2.00 | 0.8 | 3.8 | 5.67 | 40.5 | 450/750 |
| 4.0 | 2.25 | 0.8 | 4.1 | 4.61 | 49.1 | 450/750 |
| 5.0 | 2.60 | 0.8 | 4.4 | 3.36 | 62.4 | 450/750 |
| 6.0 | 2.78 | 0.8 | 4.6 | 3.08 | 70.0 | 450/750 |
| 7.0 | 3.00 | 1.0 | 5.2 | 2.52 | 84.7 | 450/750 |
| 8.0 | 3.20 | 1.0 | 5.4 | 2.22 | 94.4 | 450/750 |
| 10.0 | 3.57 | 1.0 | 5.8 | 1.83 | 113.8 | 450/750 |

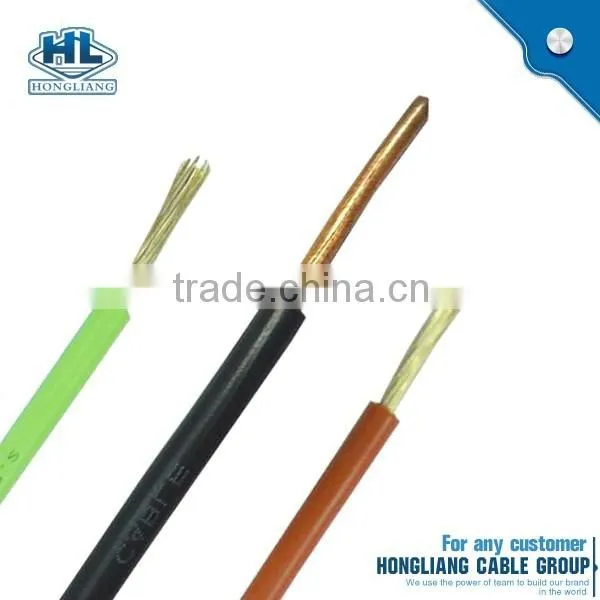

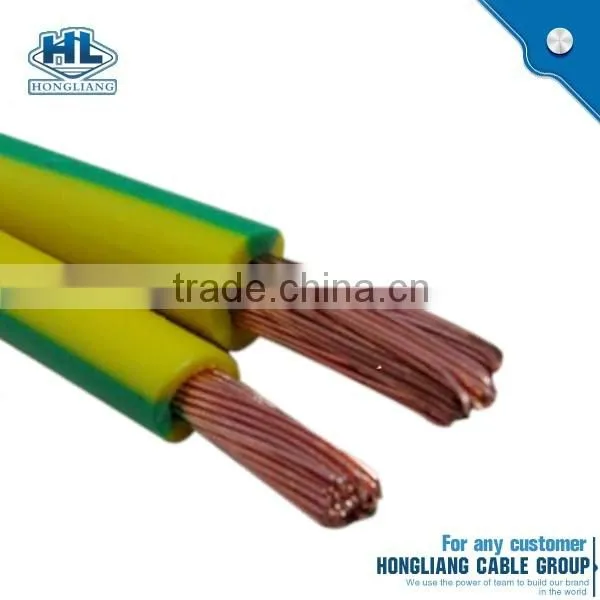

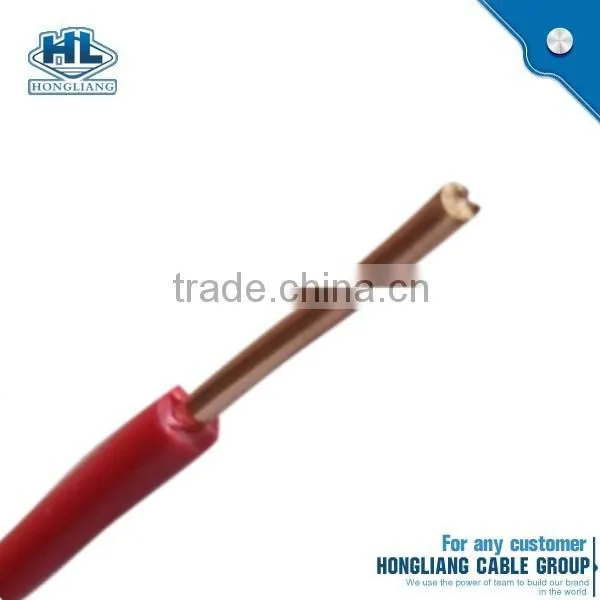

3. Picture show Copper Core PVC insulated solid copper conductor material electrical wire wholesale :
Copper Core PVC insulated solid copper conductor material electrical wire wholesale .
International wooden drums or as your requirement.
Copper Core PVC insulated solid copper conductor material electrical wire wholesale .
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
Copper Core PVC insulated solid copper conductor material electrical wire wholesale .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
Copper Core PVC insulated solid copper conductor material electrical wire wholesale .
