UO/U = 300/500 V
APPLICATION
in light transportable equipments intended for low mechanical
stresses.
• Not suitable for explosive atmospheres (ATEX).
General guide to use, EN 50565-2. Current carrying capacities
according to SFS 6000-5.
Highest permissible conductor temperature:
• continuous operation 60 °C
• short circuit (duration up to 5 s) 200 °C
Lowest recommended temperature
during laying: -25 °C
Maximum permissible pulling force from conductor
is 15x A N/mm2.
Conductor Tinned flexible copper wire
Insulation EPR rubber compound
Outer sheath Black polychloropren or equivalent synthetic
rubber compound
IDENTIFICATION OF CORES
According to standard HD 308 S2:
2-cores Blue, brown
3-cores Yellow-green, blue, brown
STANDARDS
EN 50525-2-21
IEC / EN 60332-1
CERTIFICATES, APPROVALS
KEMA-KEUR <HAR>
The cable does not contain any substances on the
REACH/SVHC -list.
All substances of the cable meet the requirements of RoHS
directive.

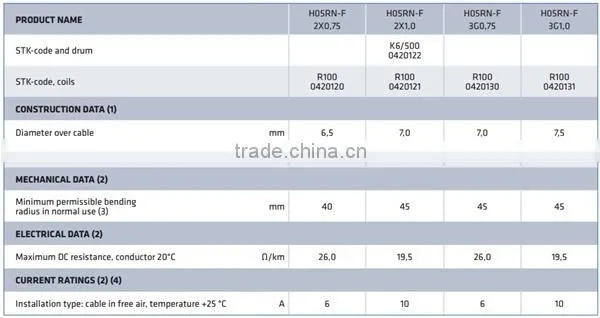

Pls refer to the below more details.
VDE ISO9001,CCC,CQC,EWC approval HO5RN-F/H07RN-F flexible rubber power cable
Material:
Rolls without drum / wooden drum / steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, Qingdao, or other ports as per your requirements.
Sea freight and insurance fee:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
VDE ISO9001,CCC,CQC,EWC approval HO5RN-F/H07RN-F flexible rubber power cable
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Equal and mutual benefit
4)Honesty and profession
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
VDE ISO9001,CCC,CQC,EWC approval HO5RN-F/H07RN-F flexible rubber power cable
