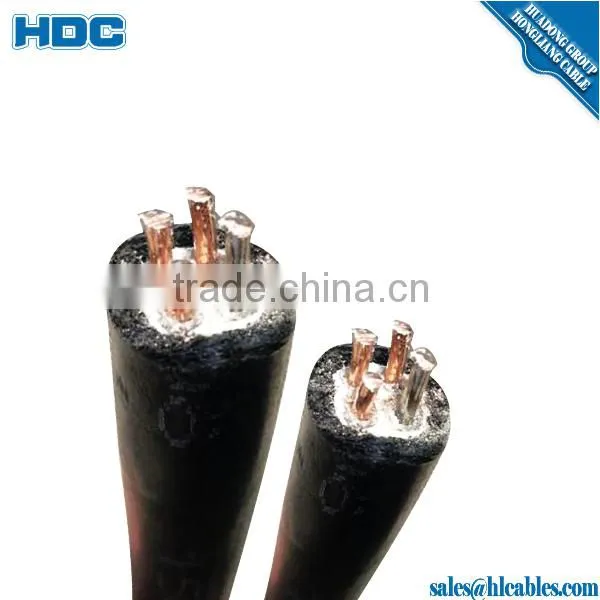

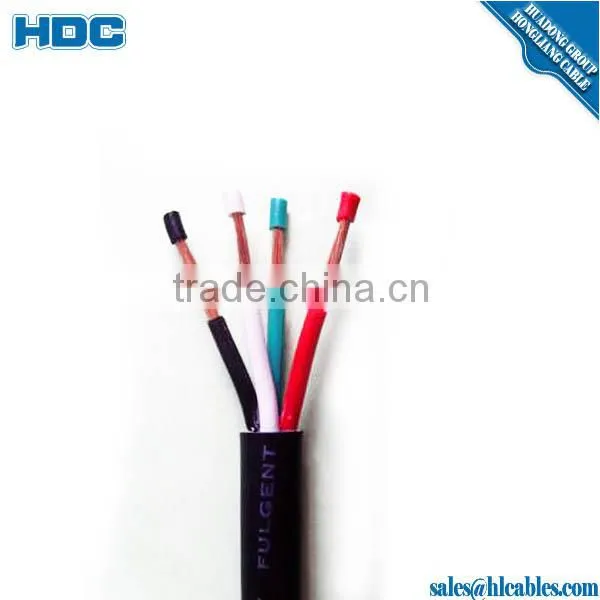

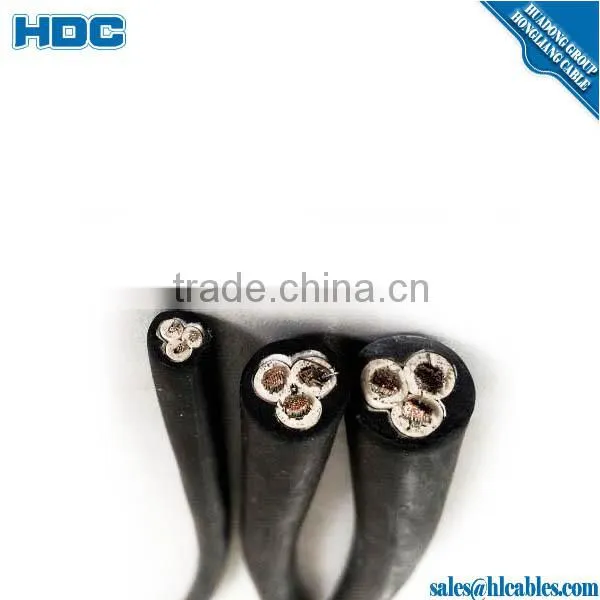

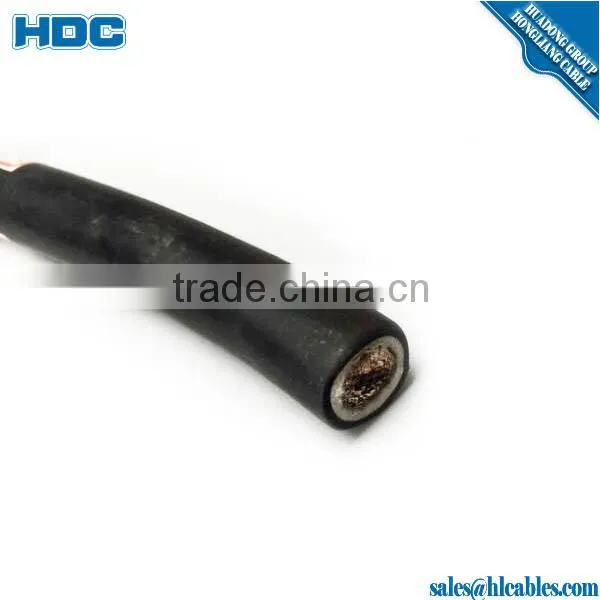

Help CenterH07RN-F 2/3Cores 450/750v IEC GB/T ASTM General Rubber Sheathed Flexible Rubber Cable
Related Products
-
2/3 Cores 300/500v IEC GB/T ASTM Light Type General Rubber Sheathed Flexible CableUS$ 0.1 - 99MOQ: 100 Meters -
2/3/4/5Cores 300/500V IEC GB JB VDE Medium Type General Rubber Sheathed Flexible Rubber CableUS$ 0.1 - 99MOQ: 100 Meters
-
1/2/3/4/5Cores 450/750v 1.5-150mm2 IEC GB/T ASTM Heavy-type General Rubber Sheathed Flexible CableUS$ 0.1 - 99MOQ: 100 Meters
-
1 Cores*1.5mm2 30/0.25mm 450/750V IEC GB JB VDE General Rubber Sheathed Flexible Rubber CableUS$ 0.1 - 99MOQ: 100 Meters
-
YQ/YQW 1cores*2.5mm2 49/0.25 450/750V IEC GB JB VDE General Rubber Sheathed Flexible Rubber CableUS$ 0.1 - 99MOQ: 100 Meters
1,>Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
No.Cross-section 10mm2-185mm2
2,> Model, Names Main applications and Work In the Temperature
3,>Standards: IEC60245
Specifications, Size, Technical Data of H07RN-F 2/3Cores 450/750v IEC GB/T ASTM general rubber sheathed flexible rubber cable
| Nominal Section-Area of Conductor(mm2) | Structure of Conductor | Nominal Thik-ness of Sheath (mm) | Overall Diameter | Max. Conductor Resistance at 20º C (Ω /km) | Approx. Weight (kg/km) | ||
| Core no. /Dia. (no. /mm) | Min. | Max. | YH | YHF | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.128 | 1648.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |

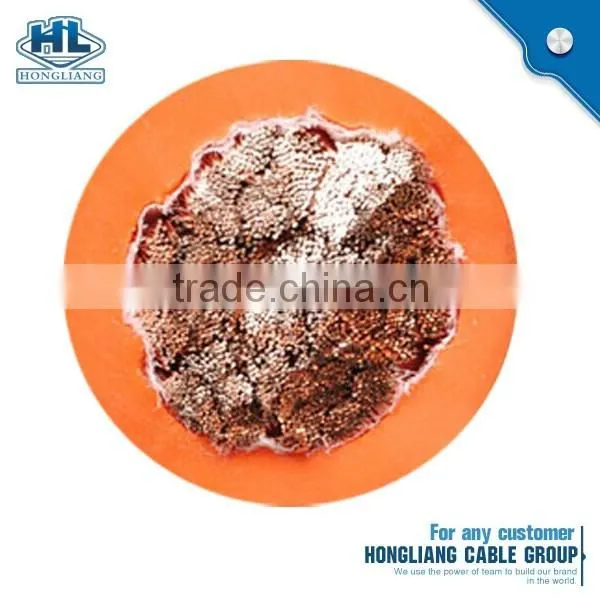

H07RN-F 2/3Cores 450/750v IEC GB/T ASTM general rubber sheathed flexible rubber cable
In Wooden drum, Iron drum, Iron wooden drum, Steel drum or according to your requirement.
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Equal and mutual benefit
4)Honesty and profession
H07RN-F 2/3Cores 450/750v IEC GB/T ASTM general rubber sheathed flexible rubber cable
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
