housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV
- 500000 Kilometer / Kilometers per Month
- Qingdao Shanghai Tianjin China electric cable
- T/T L/C D/P D/A Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | Zhenzhou hongliang cable | Model Number: | Electric wire |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Other, Housing and Building |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Item name: housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV .
1. Application of housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV :
1.This cable is produced according to the standard IEC60227:1993,BS6004,VDE0281
2.Solid or Stranded Bare Copper Conductor
3.PVC Insulation,various color available
4.300/300V,300/500V,450/750V
5.The cable is suitable to be fixed wireing of power device,power lighting of home electric equipment and instrument, inner wiring of electric equipment, Instrument,electron equipment, automatization device etc.
2. Technique property of housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV :
Code: | 6242Y-6243Y |
Standards: | BS6004 Table 8 |
Construction: | 1- Solid or Stranded Copper Conductor |
| 2- PVC insulation |
| 3- PVC outher sheath |
Application: | In dry, damp and wet locations as flexible connecting cables for light mechanical |
| stresses.It is used for hand tools and house hold appliances with flat shape. |
Technical Data: | Max. operating temperature 70 ºC |
| Short circuit temperature 160 ºC |
3. Executive standard :
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||
Cu | Al | Cu | Al | |||||
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Conductor | Insulation thickness | Overall diameter(approx.) | DC resistance at 20°C | Weight(approx.) | Rated Voltage | |
Norminal area | Conductor diameter | |||||
mm2 | mm | mm | mm | Ohm/km | kg/km | V |
0.5 | 0.80 | 0.6 | 2.0 | 36.0 | 9.5 | 300/500 |
0.8 | 0.98 | 0.6 | 2.2 | 24.5 | 12.4 | 300/500 |
1.0 | 1.17 | 0.6 | 2.4 | 18.1 | 15.9 | 300/500 |
0.5 | 0.80 | 0.7 | 2.4 | 36.0 | 10.7 | 450/750 |
0.8 | 0.98 | 0.7 | 2.6 | 24.5 | 13.6 | 450/750 |
1.0 | 1.17 | 0.7 | 2.8 | 18.1 | 17.2 | 450/750 |
1.5 | 1.40 | 0.7 | 3.0 | 12.1 | 22.2 | 450/750 |
2.0 | 1.60 | 0.8 | 3.4 | 8.86 | 28.8 | 450/750 |
2.5 | 1.80 | 0.8 | 3.6 | 7.41 | 34.4 | 450/750 |
3.0 | 2.00 | 0.8 | 3.8 | 5.67 | 40.5 | 450/750 |
4.0 | 2.25 | 0.8 | 4.1 | 4.61 | 49.1 | 450/750 |
5.0 | 2.60 | 0.8 | 4.4 | 3.36 | 62.4 | 450/750 |
6.0 | 2.78 | 0.8 | 4.6 | 3.08 | 70.0 | 450/750 |
7.0 | 3.00 | 1.0 | 5.2 | 2.52 | 84.7 | 450/750 |
8.0 | 3.20 | 1.0 | 5.4 | 2.22 | 94.4 | 450/750 |
10.0 | 3.57 | 1.0 | 5.8 | 1.83 | 113.8 | 450/750 |

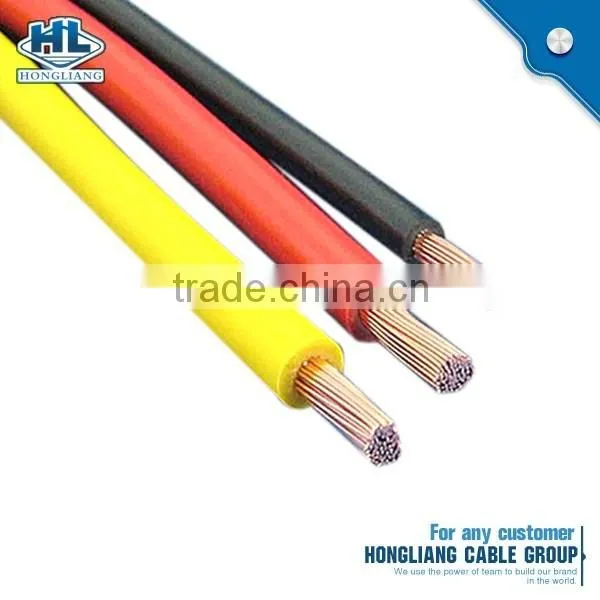

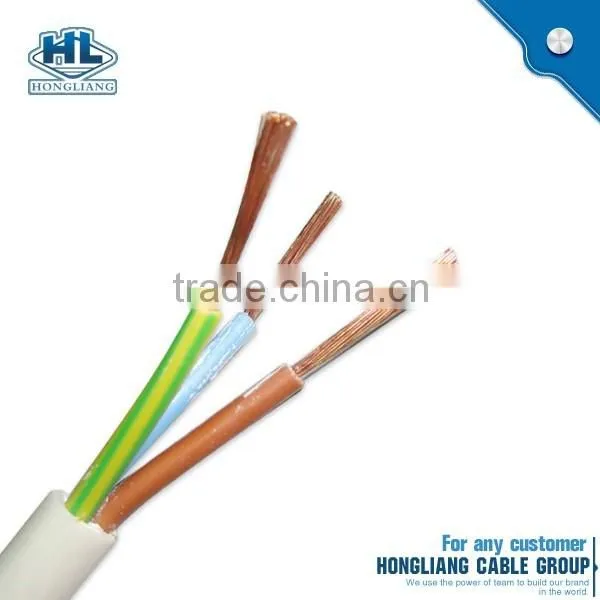

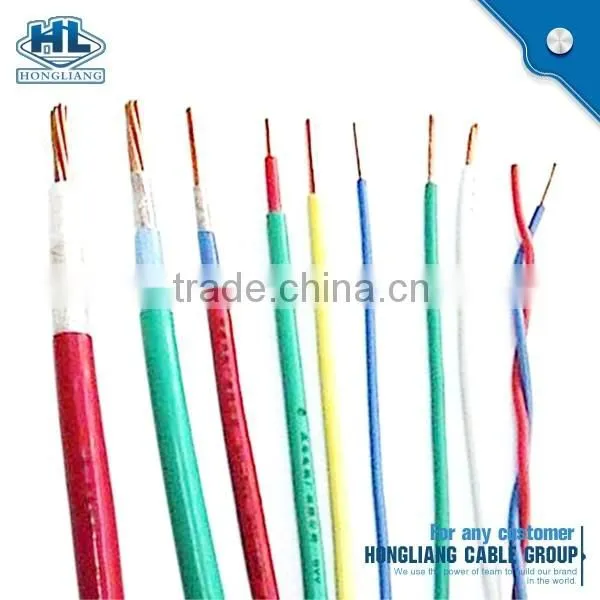

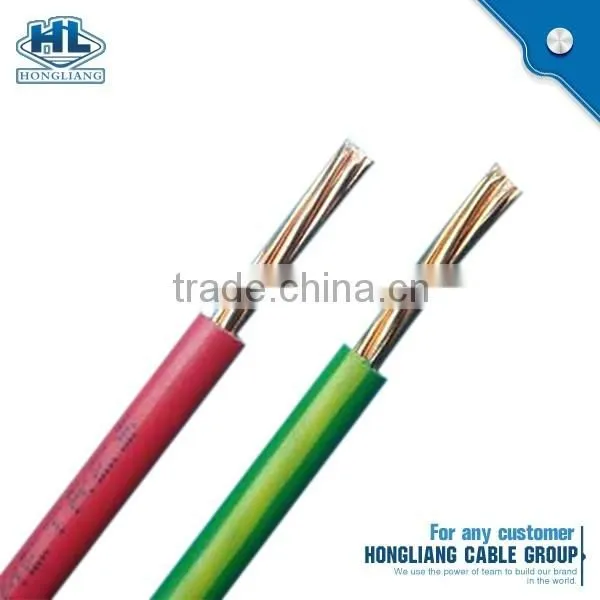

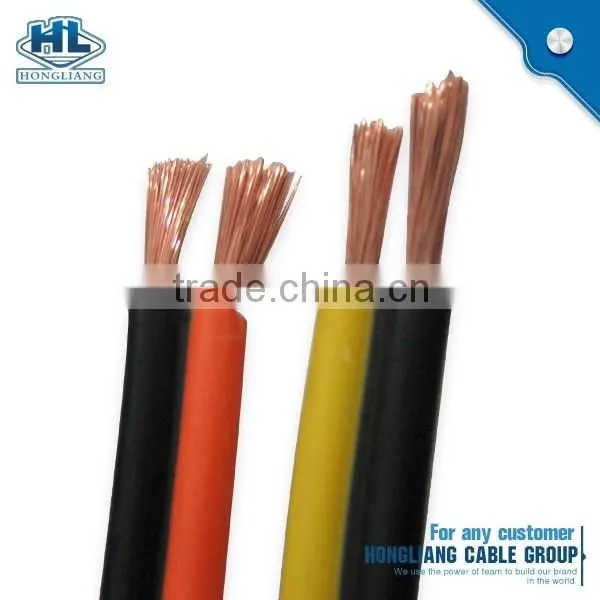

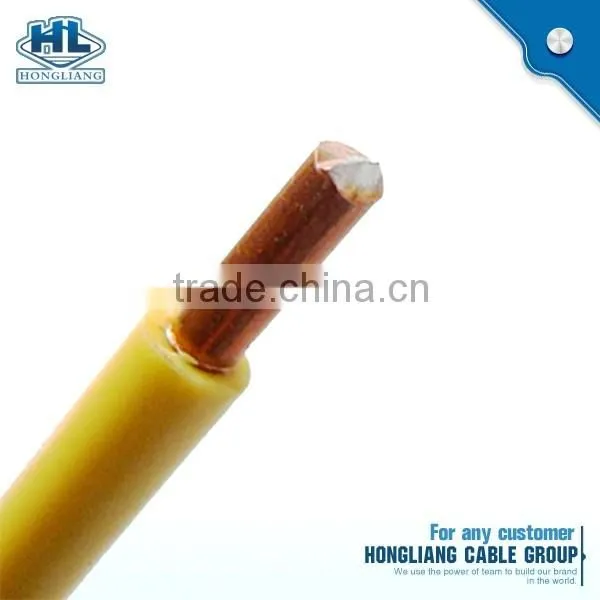

4. Picture show housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV :
housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV .

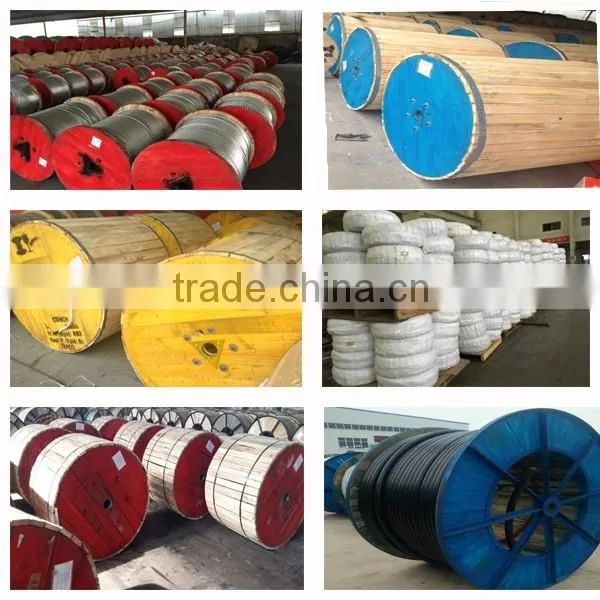

International wooden drums or as your requirement.
housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV .
Henan Huadong Cable Group is a joint stock enterprise that integrated in cable production, research & development,and domestic & international trade in China.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable?Group ,and also is biggest professional import and export trade company in China.

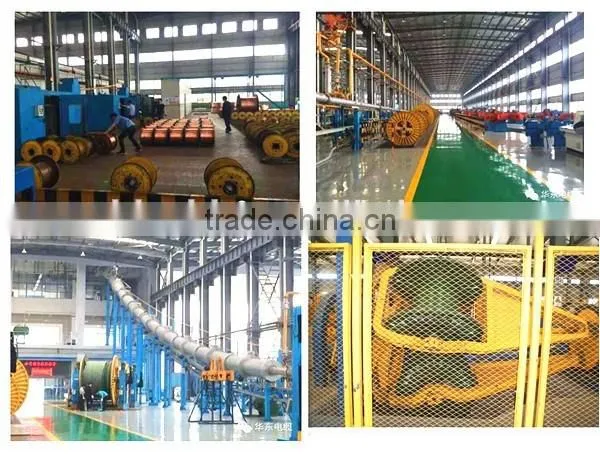

The plant was founded in 1998,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
We are adhering high quality and best service to make our HUADONG CABLE be famous all over the world. Thanks for your supporting and trusting! HUADONG CABLES welcomes your inquiry and visiting,we are at your service !
housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
housing wire 2.5mm copper core flame retardant electrical copper wire ZR-BV .
