Product Details
| Place of Origin: | Henan, China | Brand Name: | Zhenzhou hongliang cable | Model Number: | Control Cable |
| Insulation Material: | PVC | Type: | Low Voltage | Application: | Power Station |
| Conductor Material: | Copper | Jacket: | PVC |
Product Description
Item name: Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable .
1. Application of Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable :
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
2. Technical data of Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable :
1. Long-term service temperature of the cable conductor: 70℃
2. Rated voltage: 450/750V
3. Cable lying temperature ≥0℃
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:Non armored ≥ out diameter of cable 6 timesArmored layer or copper tape
shielded ≥ outerdiameter of cable 12 timesShielded layer soft cable ≥ outer diameter of cable 6 times
The long-term working temperature of the conductor wire core is from 70 ℃ to 95 ℃, while the laying temperature is not lower than 0 ℃.
3. Executive standard :
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Model | Name | Voltage V | Number of cores | Cross-sectional area mm2 | Range of application | |
KVV | Copper core PVC insulated PVC sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipelines and other fixed occasion | |
KVV22 | Copper core PVC insulated PVC sheathed steel tape armored control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, directly buried pipeline and other fixed occasion, also can bear larger external mechanical forces | |
KVVP | Flame retardant copper core PVC insulated PVC sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipelines, etc, and somewhere that need fixed installation | |
KVVR | Soft copper core PVC insulated and sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, where there is a requirement for mobile | |
KVVRP | Copper core PVC insulated PVC sheathed braided shielding control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, where there is a requirement for mobile screen | |
ZRKVV | Flame retardant copper core PVC insulated PVC sheathed control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipe fixed occasion where demands such as flame retardant | |
ZRKVV22 | Flame retardant copper core PVC insulated PVC sheathed woven tape armored control cable | 450/750 | 4-37 | 0.75-10 | For laying indoors, in cable trench, pipes, burying and etc. There is a requirement for flame retardant can bear external mechanical forces larger fixed occasion | |

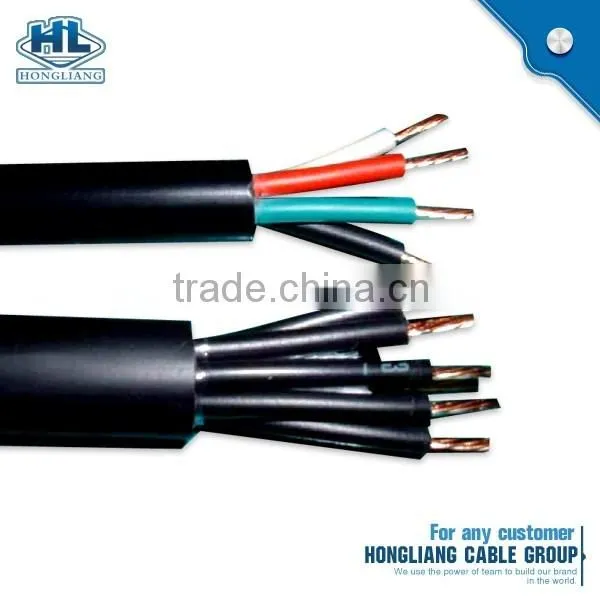

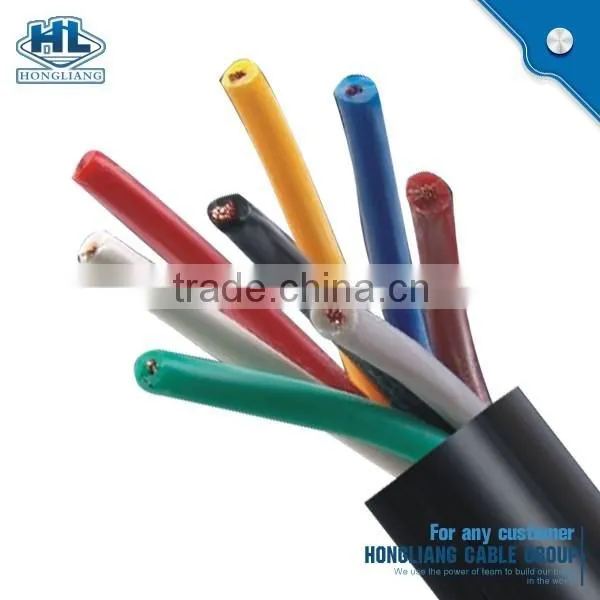

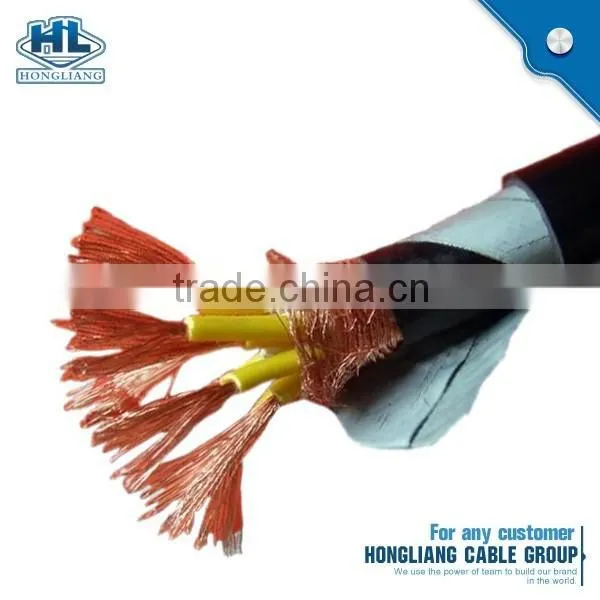

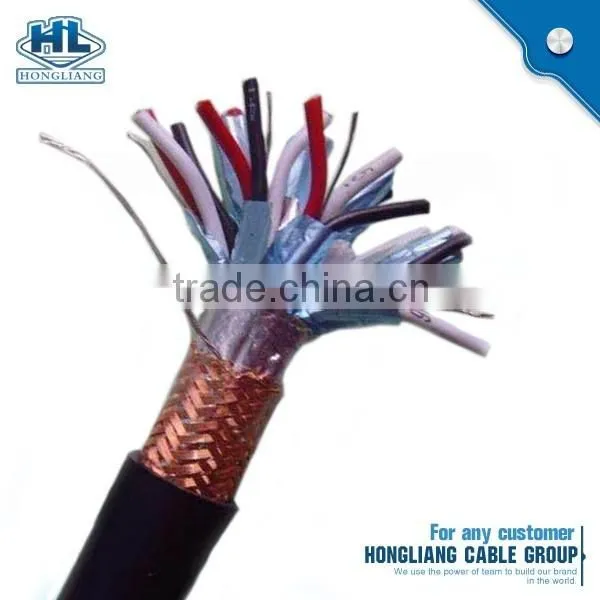

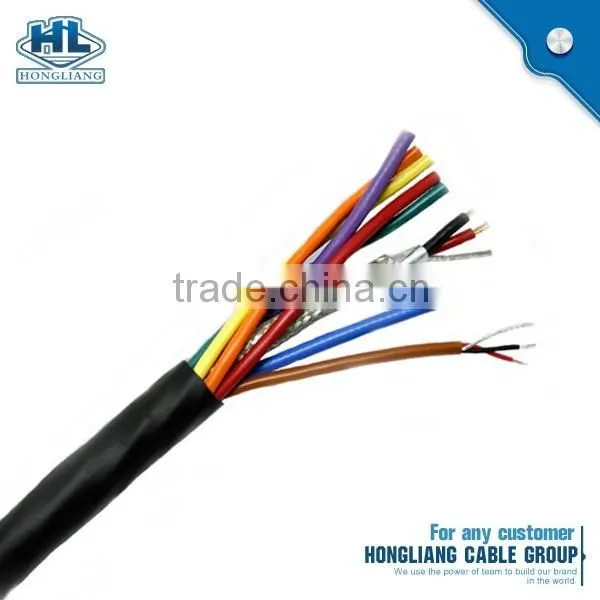

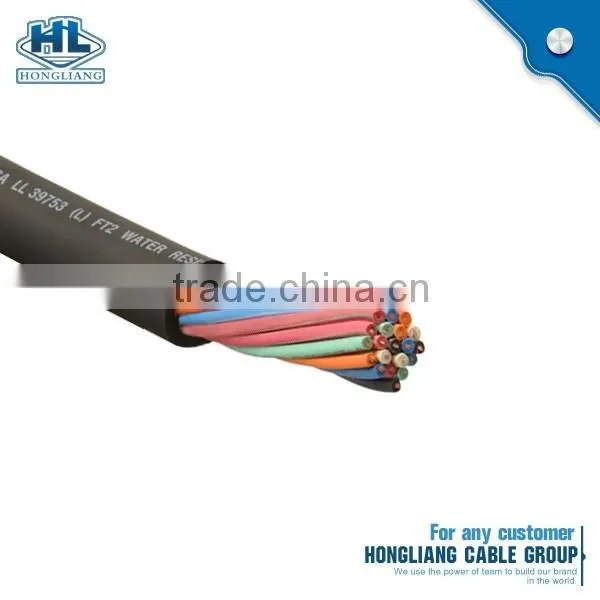

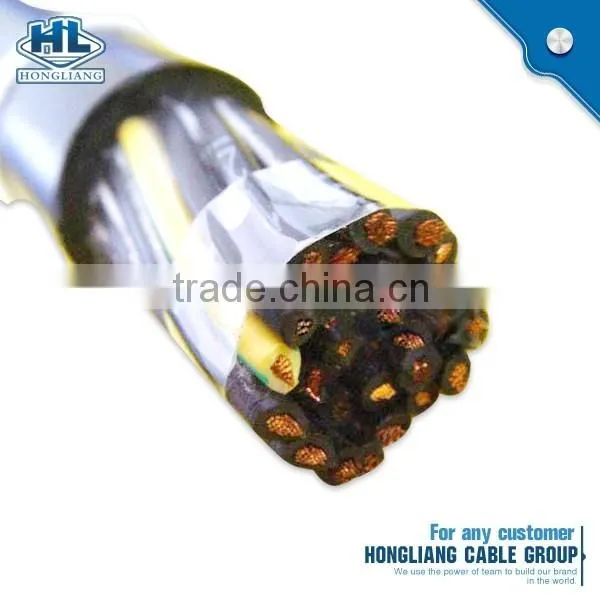

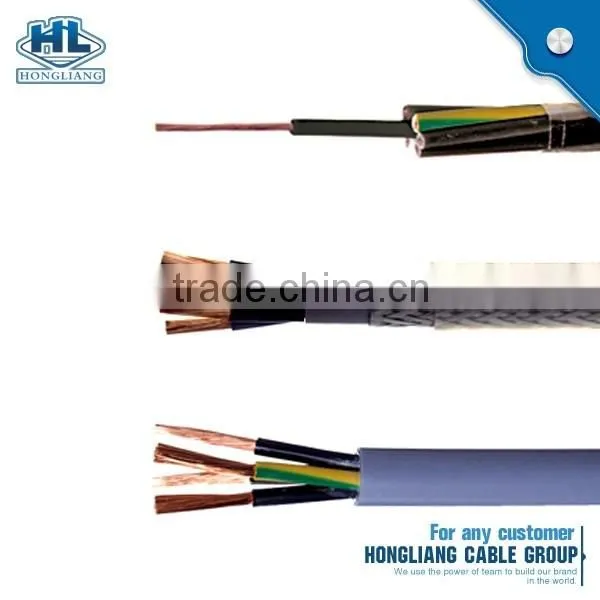

4. Picture show Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable :
Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable .

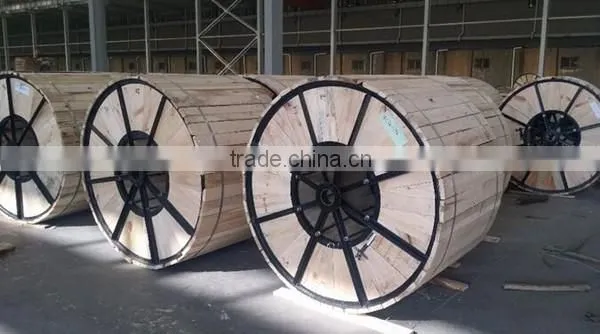

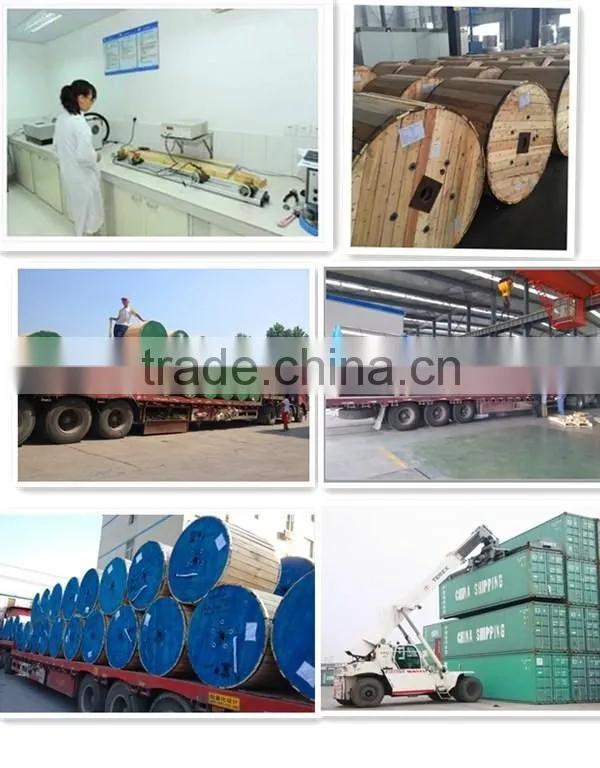

International wooden drums or as your requirement.
Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable .

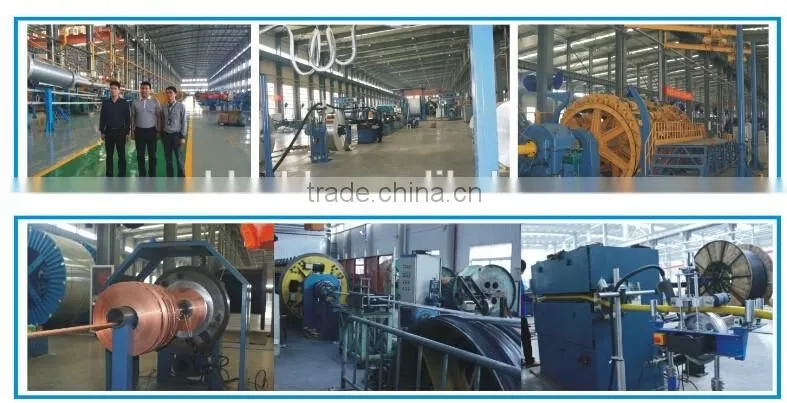

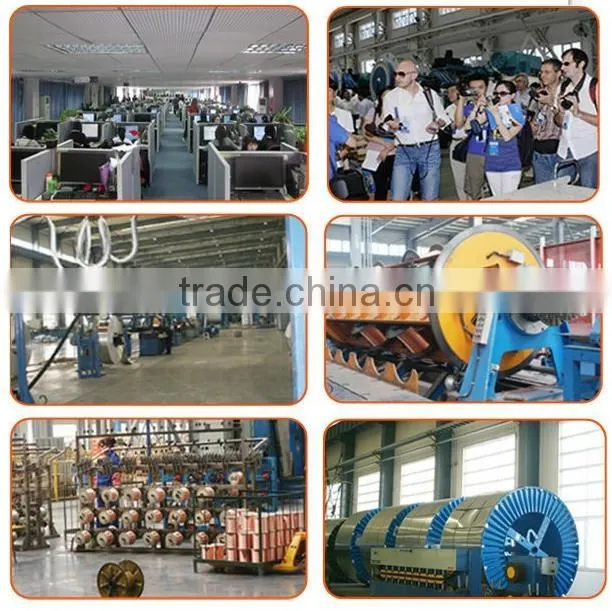

Hongliang Cable Co., Ltd.
Established Year: 1988
Registered capital of RMB:180,000,000
Total assets : 28.7millions
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 450
Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
Dedicated manufacturer of 16 Cores 1mm2 2.5mm2 4mm2 Flexible PVC Control Cable .
